System 3400 - Glazed Partition
Verified by manufacturer 4 days ago
Rw 32 dB
Rw 32 dB
EPD
Certificate type
A single glazed, mullion-free partition with glass to glass connections.
Application
For commercial applications including offices.
Description
Minimal design, maximum acoustic performance
System 3400 is our single glazed mullion-free system with glass to glass connections for a clean, sharp aesthetic with maximum transparency.
Different glass types combine with our high-performance acoustic doors to achieve a wide range of acoustic performances. Rw 40dB glazing with Rw40dB door tested at Dw 40dB in our acoustic studio. That is an installed sound reduction offering designers a true minimal high performance system.
A variety of profile heights give the opportunity to style the product to the space. 25mm profiles give a minimal, floating glass look. For a more industrial feel, use 50mm frames with aluminium glazing bars.
General information
Color | Other Guidance for specification option: Anodized finish in six colours, or polyester powder-coated to any RAL colour. |
Finish | Anodized Powder-coated |
Material | Aluminium Glass Stainless steel |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke Guidance for specification option: Up to 3 m as standard. System height: 3.5 m. 3.8 m possible with 17 mm toughened glass. |
Warranty description | Ten year |
Uniclass | |
CAWS | K30/130 Relocatable partition system K30/10 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Supplied by | Savile Row Projects Limited. |
Unit size | |
Thickness | Manufacturer guidanceConsult manufacturer for information. |
Partition height (nominal) | Manufacturer guidanceUp to 3 m as standard. System height: 3.5 m. 3.8 m possible with 15 mm toughened glass. Consult manufacturer and insert requirements. |
Width (nominal) | Manufacturer guidanceConsult manufacturer and insert requirements. |
Deflection allowance (maximum) | |
Verticals | +/-25 mm with 50 mm head track. Guidance for specification option: One-part. +/-35 mm with 70 mm head track. Guidance for specification option: One-part. Other. Guidance for specification option: Consult manufacturer for details on deflection allowance for two-part and recessed tracks. |
Panel partition type | Glazed - toughened glass. |
Framing, fixing points and joints | Aluminium frame. Acoustic cruciform dry glass joints. |
Glazed panels | |
Type | Single-glazed. |
Additional features | Not required. Glazing bars. |
Door arrangement | |
Type | GG10 Door - Rw 32 dB. Guidance for specification option:
AR40 Door - Rw 34 dB. Guidance for specification option:
ST40 Door - Rw 34 dB. Guidance for specification option:
S12 Door - Rw 24 dB. Guidance for specification option:
Manufacturer guidanceDoors can be configured with a choice of opening options. An integrated tech panel is also available. System 3400 has integral vertical deflection and utilizes a deflection zone over the door to maintain the clean lines of the system. |
Locking | Surface mounted mag lock. Morticed shear lock. Other. Guidance for specification option: Project specific options available, consult manufacturer for details. |
Door frames | Manufacturer's standard. Guidance for specification option: Aluminium or timber dependent on door type specified. See 'Door arrangement - Type' and manufacturer's literature for further details. |
Door panels | |
Type | Manufacturer's standard. Guidance for specification option: Glazed or solid. Frameless and framed available. Hinged and sliding available. See 'Door arrangement - Type' and manufacturer's literature for further details. |
Ceiling | |
Method of support | Head track - one part. Guidance for specification option: 50 mm, 70 mm. Head track - two part. Guidance for specification option: 90 mm. Head track - recessed. Guidance for specification option: 75 mm. |
Seals | Drop down acoustic seal - full width. |
Cable management and outlets | Cable run. |
Acoustic performance | 32 dB. |
Frame finish | Anodized. Guidance for specification option: Available in six colours. Polyester powder-coated, RAL. Guidance for specification option: Powder-coated to any RAL colour. Insert requirements. |
Floor channel | 25 mm floor profile. 35 mm floor profile. 50 mm floor profile. |
Wall abutment | 25 mm. 35 mm. 50 mm. |
Fire protection | Class 0. |
Glass thickness | 12 mm. |
Sustainability data
Material | Aluminium Glass Stainless steel |
Product certifications
Product certifications
EPD

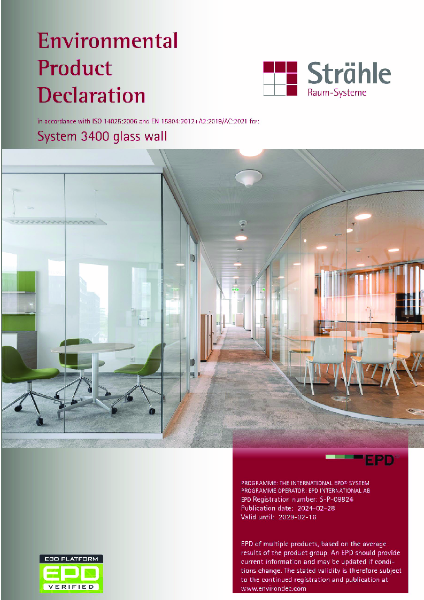

Strahle System 3400 EPD
Literature
System 3400 RW 32 dB - Design Guide
System 3400 RW 38 dB - Design Guide
System 3400 RW 40 dB - Design Guide
Case studies
Globant - System 3400 Single Glazed 40 dB Curved Glass & Switchable Glass featured

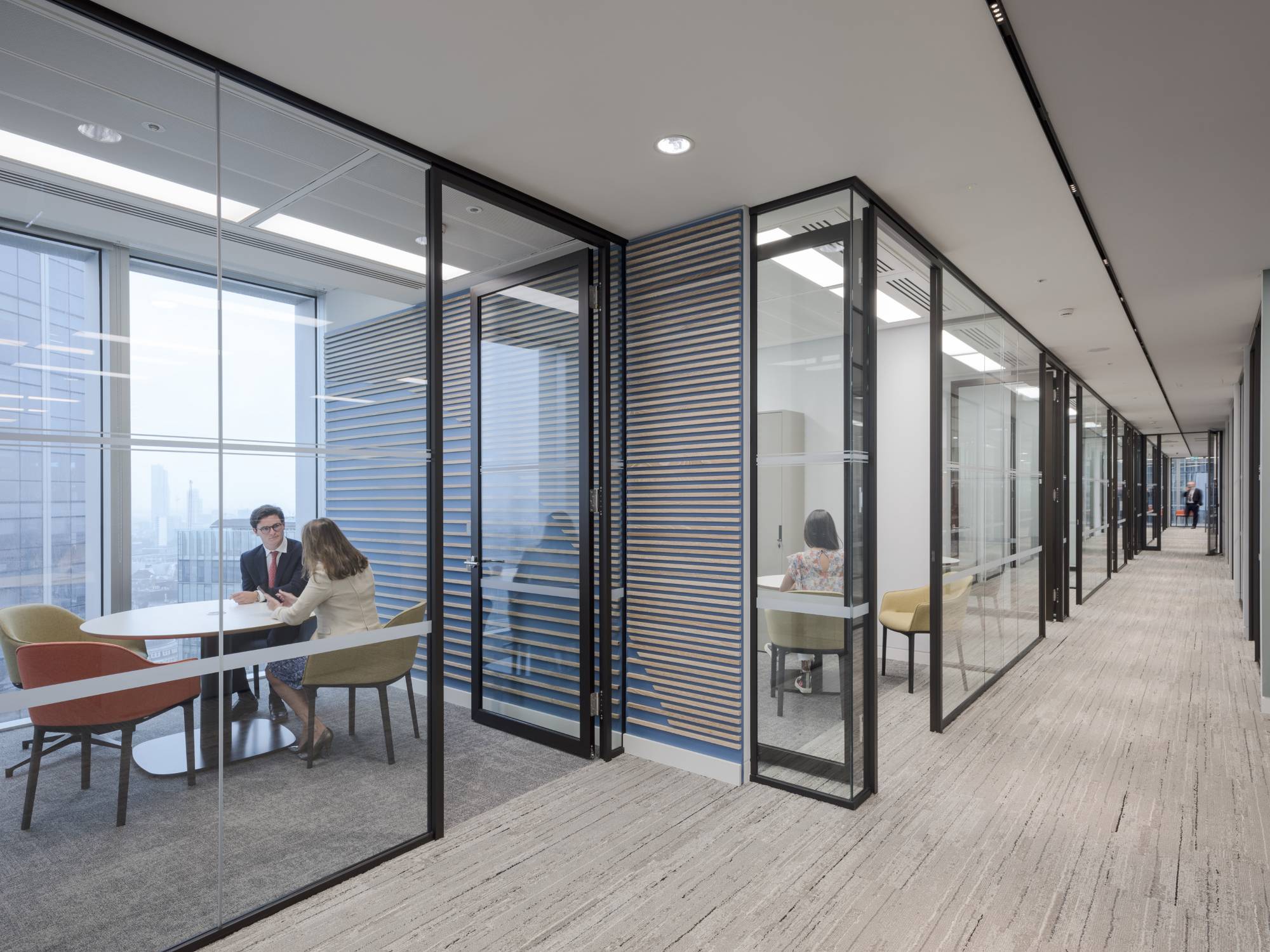

Houlihan Lokey - System 3400, System 3500
Management Consultancy - System 3400, System 3500
