Syntesis® Flush Pocket Door System - Double
NBS BIM object standard Verified by manufacturer 5 months ago
Solid
Solid

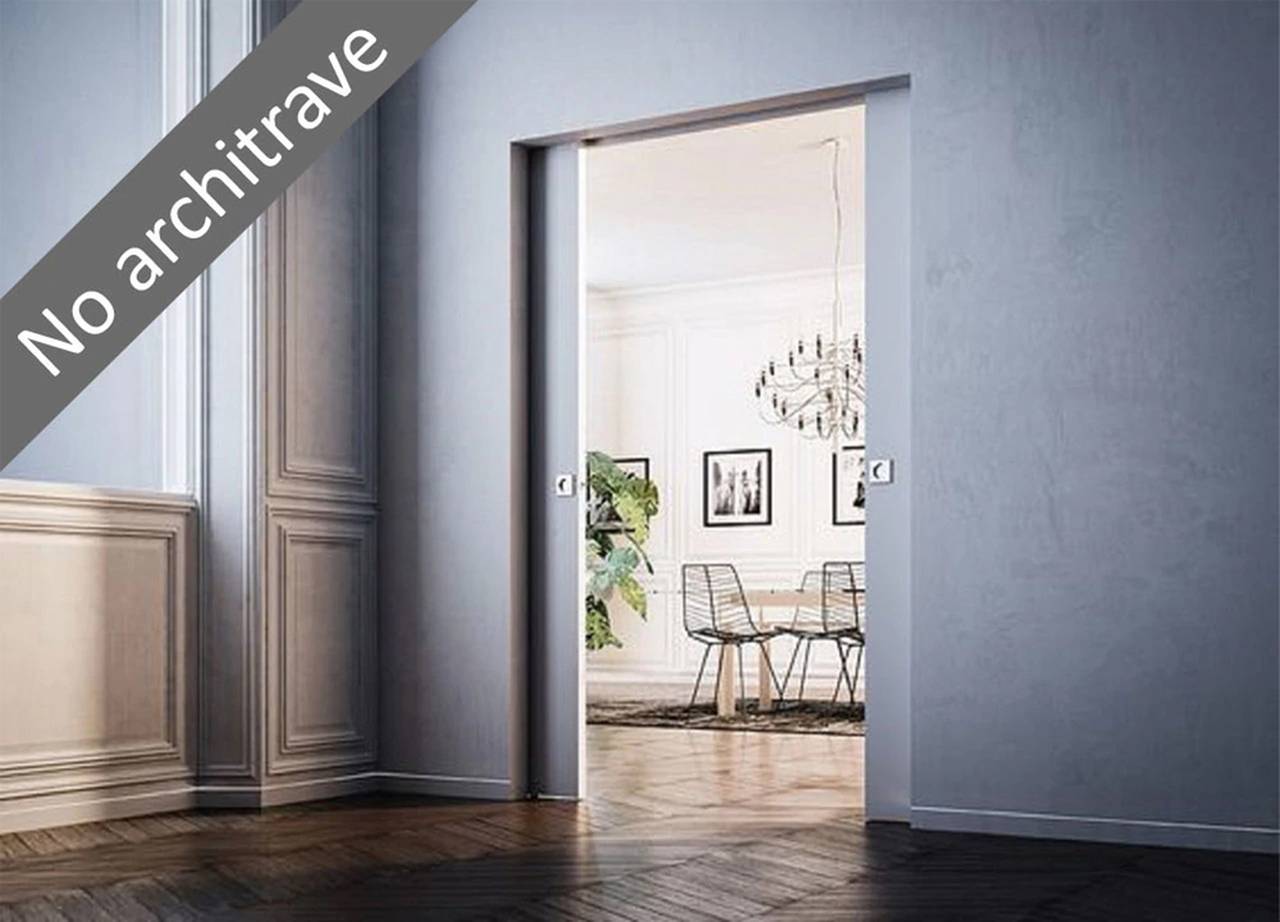

Double flush sliding pocket door system without architrave or jambs.
Application
Internal sliding pocket doors, flush fitting (no architraves or jambs) for residential applications.
Description
Double flush sliding pocket door systems without architrave or jambs. Available in three variations; solid door, glass door and wiring ready. Wiring ready allows back boxes up to 44 mm deep to be installed on each side of the pocket.
Features and benefits:
- Innovative edge profile that allows for a crisp plaster finish right to the edge and into the return for a minimalist architrave-free appearance.
- Flex is reduced to a minimum using stronger aluminium profiles and reinforced joints to reduce the risk of plaster cracking to a very minimum.
- Maintenance-free track and runners.
- Runners are tested to 100 000 cycles (around 25 years of average use).
- Doors and plasterboard not supplied with system.
- Fully adjustable front and rear doorstops. Rear doorstop can be adjusted without removing the door.
- Wide range of sizes to suit standard UK door sizes (35–44 mm-thick). Bespoke sizes available.
- Door panels up to 100 kg (accessories may affect this limit).
General information
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
WarrantyDescription | 15 year On the complete Eclisse steel pocket system, track and runners. |
Uniclass | |
CAWS | P21/10 Door track and running gear L20/525 Sliding pocket doors P21/350 Door track and running gear L20/65 Sliding pocket doors |
Specification data - Sliding door and partition sets
Performance | Internal. |
Arrangement | Top hung, double leaf. |
Track system | Manufacturer's standard. |
Door leaves | - |
ConstructionSuitable for use with 35 or 44 mm thick doors. | Doors specified separately. |
Operation | Manual. |
Hardware | Not required.Required.Consult manufacturer for options and insert requirements. |
Accessories | None.ECLISSE BIAS®.Soft close up to 40 kg with anti-slam. ECLISSE BIAS® DS.Bi-directional soft close up to 40 kg with anti-slam. Not suitable for use with 610/ 610 x 1981 mm (2' 0"/ 2' 0" x 6' 6") and 626/ 626 x 2040 mm doors. Syntesis® flush skirting board adapter.Recessed skirting board system allowing the skirting to be flush with the wall. Consult manufacturer for options and insert requirements. |
Execution
| Install frame at finished floor level. Door panels to be routed in accordance with manufacturer's instructions. |
Doors | 626/ 626 x 2040 mm. Maximum passage size: 1200 x 2048 mm. Overall size: 2700 x 2108 mm. 726/ 726 x 2040 mm. Maximum passage size: 1400 x 2048 mm. Overall size: 3100 x 2108 mm. 826/ 826 x 2040 mm. Maximum passage size: 1600 x 2048 mm. Overall size: 3500 x 2108 mm. 926/ 926 x 2040 mm. Maximum passage size: 1800 x 2048 mm. Overall size: 3900 x 2108 mm. 1026/ 1026 x 2040 mm. Maximum passage size: 2000 x 2048 mm. Overall size: 4300 x 2108 mm. |
Finished wall thicknessPassage sizes above 2000 x 2150 mm must be 125 or 150 mm wall thickness. | 100 mm. Standard. 125 mm. Special order; consult manufacturer for details. Requires two layers of plasterboard either side. 150 mm. Special order; consult manufacturer for details. Requires two layers of plasterboard either side. |
Environmental information
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Recyclability | 85% |
Recycled content | 56 % Aluminium: 56%. Steel: 20%. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
Syntesis® DOUBLE Flush Pocket Door System
