Classic Sliding Pocket Door System – Single Fire-Rated

Verified by manufacturer 17 days ago

Eclisse UK Product certifications:
  • KIWA BDA

    KIWA BDA

    Certificate type

Top-hung, single sliding pocket door system for FD30 fire doors. Space-saving, fire-rated solution ideal for residential and commercial interiors. Smooth, reliable, and compliant.

Jump to:
BOS
+44 (0)333 5770828 Website

Application

The ECLISSE FD30 Fire-Rated Pocket Door System is a versatile solution suitable for a wide range of residential and commercial applications where fire safety and space efficiency are essential.

Residential Applications

  • Bathrooms & En-suites: Ideal for compact spaces where a traditional swing door would be intrusive.
  • Downstairs Toilets: Enhances accessibility and maximises usable floor area.
  • Utility Rooms & Pantries: Keeps functional spaces discreet while maintaining fire safety.
  • Walk-in Wardrobes: Offers a sleek, flush finish that complements modern interiors.
  • Open-Plan Living Areas: Enables flexible zoning without compromising on safety or style.

Commercial Applications

  • Offices & Meeting Rooms: Provides privacy and fire protection in high-traffic environments.
  • Healthcare Facilities: Suitable for patient rooms, storage areas, and staff zones where hygiene and safety are priorities.
  • Hospitality & Hotels: Enhances guest experience with smooth, silent operation and discreet design.
  • Retail & Showrooms: Allows for flexible space division while maintaining compliance with fire regulations.
  • Educational Buildings: Ideal for classrooms, staff rooms, and corridors where space and safety are critical.

Whether you're designing a compact urban apartment or a high-traffic commercial facility, the ECLISSE FD30 system offers a compliant, elegant, and space-saving door solution.

Description

The ECLISSE FD30 Fire-Rated Pocket Door System is a top-hung, manually operated sliding door solution designed to meet the stringent requirements of 30-minute fire resistance (FD30). Engineered for both performance and aesthetics, this system is ideal for architects and specifiers seeking to maximise usable floor space without compromising on fire safety.

Key Features

  • FD30 Fire-Rated: Certified for use with 44 mm FD30 fire doors (see Field of Application Report PAR/10057/01 Revision E for approved panels).
  • Top-Hung Sliding Mechanism: Ensures smooth, quiet operation with no floor track interruption.
  • Complete Pocket Kit: Includes door post, pocket, and track pre-assembled for easy installation and alignment.
  • High-Performance Materials: Jambs and architraves made from dense, slow-burning hardwood.
  • Intumescent Seal Integration: Pre-routed channels for 15 x 4 mm graphite-based intumescent seals (included).
  • Self-Centring Floor Guide: Prevents door warping and ensures consistent alignment.
  • Maintenance-Free Track: Long-lasting, smooth-glide runners with no need for lubrication.
  • Adjustable Stops: Front and rear door stops are fully adjustable for precise positioning.
  • Weight Capacity: Supports door panels up to 100 kg (self-closing device max 40 kg).
  • Flexible Sizing: Compatible with a wide range of standard UK door sizes.
  • Double Door Option: Also available as a fire-rated double pocket door system.

The system is designed to be installed within a 100 mm stud wall using 12.5 mm fireboard (not supplied). The pre-assembled pocket and track unit simplifies installation and ensures the door runs true and in line. The system is compatible with standard UK door sizes and can be tailored to suit bespoke requirements.

Field of Application Report: PAR/10057/01 Revision F

This system is ideal for projects where space-saving and fire safety are both priorities. Its concealed design allows for a clean, modern aesthetic, making it suitable for both traditional and contemporary interiors. The flush finish and absence of a swing arc make it perfect for tight spaces.

General information

Material

Steel

Wood

Guidance for specification option:

Hardwood.

Shape

Rectangle

Warranty description

15 year

Guidance for specification option:

On the complete Eclisse steel pocket system and runners.

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

P21/10 Door track and running gear

P21/350 Door track and running gear

L20/520 Sliding doors

L20/525 Sliding pocket doors

Specification data - Sliding door and partition sets

Classification data

Performance

Fire resisting.

Arrangement

Single leaf top hung.

Track system

Manufacturer's standard.

Guidance for specification option:

Maintenance-free track and runners.

Runners are tested to 100 000 cycles.

Door leaves

-

Construction

-

Manufacturer guidance

Doors to be specified separately.

Operation

Manual.

Hardware

Not required.
Required.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Accessories

None.
ECLISSE BIAS®.

Guidance for specification option:

Soft close up to 40 kg door panel with anti-slam.

Self-closing mechanism.

Guidance for specification option:

The manufacturer advises checking with your Building Inspector to determine whether or not your particular application will require a self-closer. Maximum door panel weight: 40 kg.

Door

626 x 2040 mm.

Guidance for specification option:

Maximum passage size: 578 x 2010 mm.

Overall size: 1294 x 2120 mm.

726 x 2040 mm.

Guidance for specification option:

Maximum passage size: 678 x 2010 mm.

Overall size: 1494 x 2120 mm.

826 x 2040 mm.

Guidance for specification option:

Maximum passage size: 778 x 2010 mm.

Overall size: 1694 x 2120 mm.

926 x 2040 mm.

Guidance for specification option:

Maximum passage size: 878 x 2010 mm.

Overall size: 1894 x 2120 mm.

610 x 1981 mm.

Guidance for specification option:

2' 0" x 6' 6".

Maximum passage size: 563 x 1951 mm.

Overall size: 1279 x 2061 mm.

686 x 1981 mm.

Guidance for specification option:

2' 3" x 6' 6".

Maximum passage size: 639 x 1951 mm.

Overall size: 1455 x 2061 mm.

762 x 1981 mm.

Guidance for specification option:

2' 6" x 6' 6".

Maximum passage size: 715 x 1951 mm.

Overall size: 1631 x 2061 mm.

838 x 1981 mm.

Guidance for specification option:

2' 9" x 6' 6".

Maximum passage size: 791 x 1951 mm.

Overall size: 1707 x 2061 mm.

914 x 1981 mm.

Guidance for specification option:

3' 0" x 6' 6".

Maximum passage size: 878 x 1951 mm.

Overall size: 1894 x 2061 mm.

Manufacturer guidance

Bespoke sizes available on request. Suitable for use with 44 mm FD30 doors only.

Finished wall thickness

100 mm.

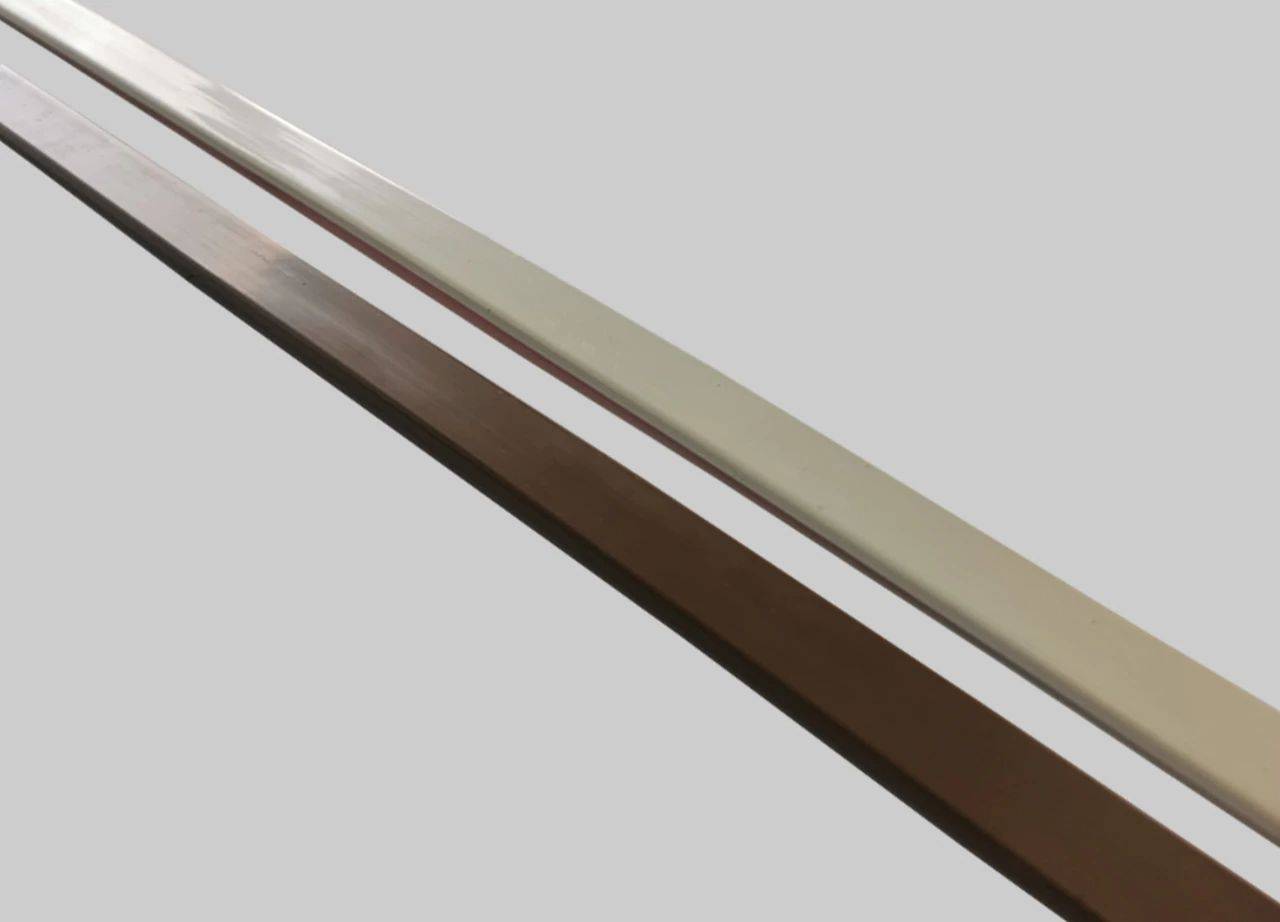

Intumescent seals

Brown.
White.

Wall jamb

75 mm complete with jamb/architrave kit made from a high-density hardwood.

Guidance for specification option:

100 mm finished wall thickness.

Third-party certification

Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E.

Guidance for specification option:

The system was tested to BS EN 1634-1:2008 for fire resistance at Cambridge Fire Research which is an independent UKAS accredited testing laboratory.

Installation

Frame should be installed at finished floor level. Consult manufacturer for detailed installation instructions and details of the inbuilt 8 mm height tolerance. FD30 door and fireboard not supplied.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Material

Steel
Wood

Guidance for specification option:

Hardwood.

Recyclability

85%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %

Guidance for specification option:

Aluminium: 56%.

Steel: 20%.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Product certifications

KIWA BDA

KIWA BDA

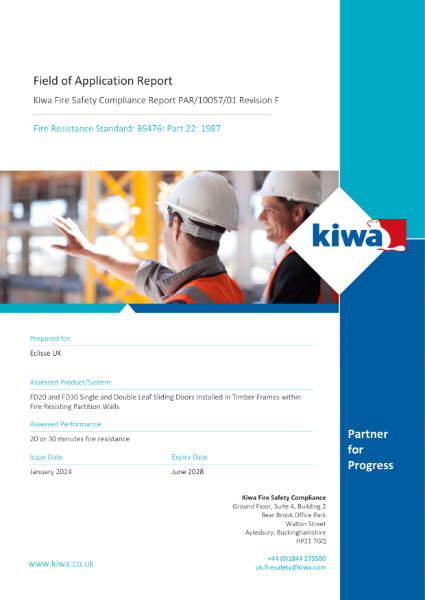

Kiwa Fire Safety Compliance Report PAR/10057/1 Revision F

Literature

Eclisse Sliding Pocket Door Systems - Future Of Doors

Eclisse Sliding Pocket Door Systems - Future Of Doors

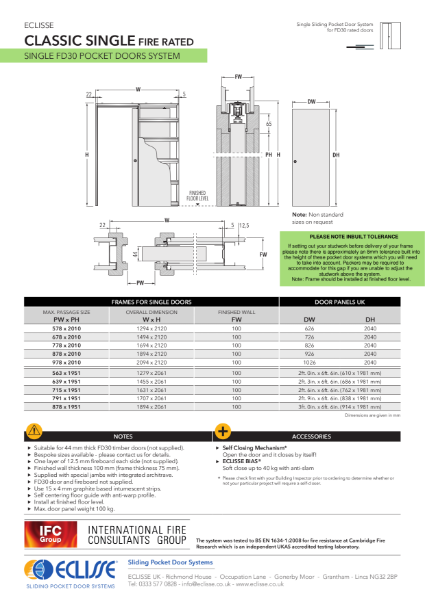

Classic SINGLE FIRE RATED Pocket Door System
