Elegant wall-mounted sliding door system ideal for residential and commercial interiors where pocket doors aren’t feasible. Stylish, space-saving, and easy to install.

Jump to:
+44 (0)333 5770828 Website

Application

Residential Applications

In homes, the Eclisse Paris wall-mounted sliding door kit is perfect for areas where space is at a premium or where a pocket door cannot be installed due to plumbing, electrical, or structural constraints. Common applications include:

  • En-suite bathrooms
  • Utility rooms
  • Wardrobes and walk-in closets
  • Kitchen pantries
  • Home offices and studies
  • Open-plan living zones with flexible partitioning

Commercial Applications

In commercial settings, the Paris kit offers a robust and visually appealing solution for:

  • Office meeting rooms
  • Hotel suites
  • Healthcare consultation rooms
  • Retail fitting rooms
  • Hospitality venues
  • Educational facilities

Description

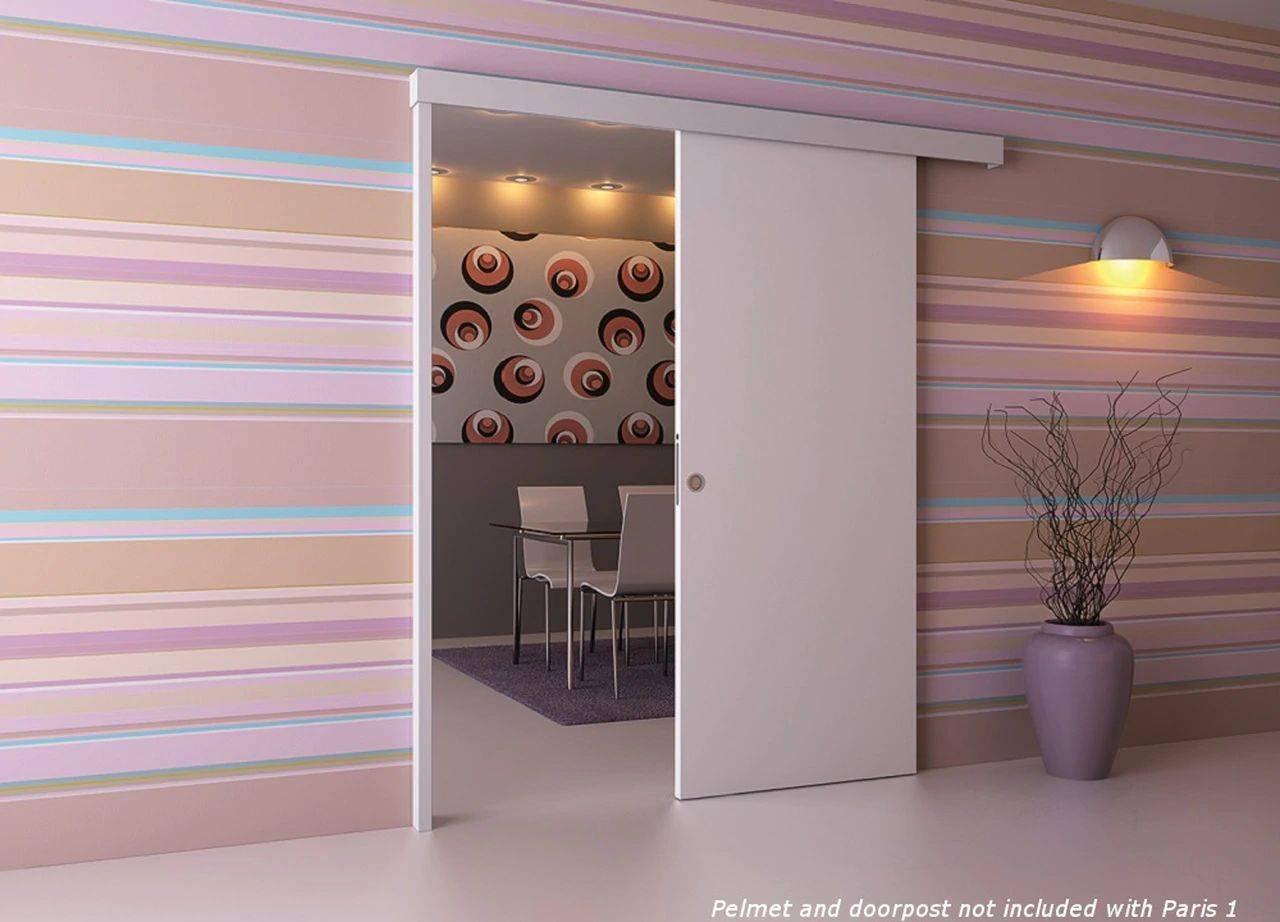

Eclisse Paris Wall-Mounted Sliding Door Kit

The Eclisse Paris wall-mounted sliding door system is a refined, surface-mounted solution designed for projects where pocket doors are impractical. Whether due to structural constraints or retrofit limitations, this system offers the same sleek functionality and aesthetic appeal as our renowned pocket door systems—without the need for wall cavity installation.

Architectural Flexibility

The Paris kit is ideal for both new builds and refurbishments. It allows specifiers to maintain a clean, modern aesthetic while maximising usable floor space. The system is particularly suited to environments where traditional swing doors would compromise layout efficiency or where wall construction prevents cavity installation.

Design and Finish Options

The Paris range is available in three configurations to suit varying design and installation needs:

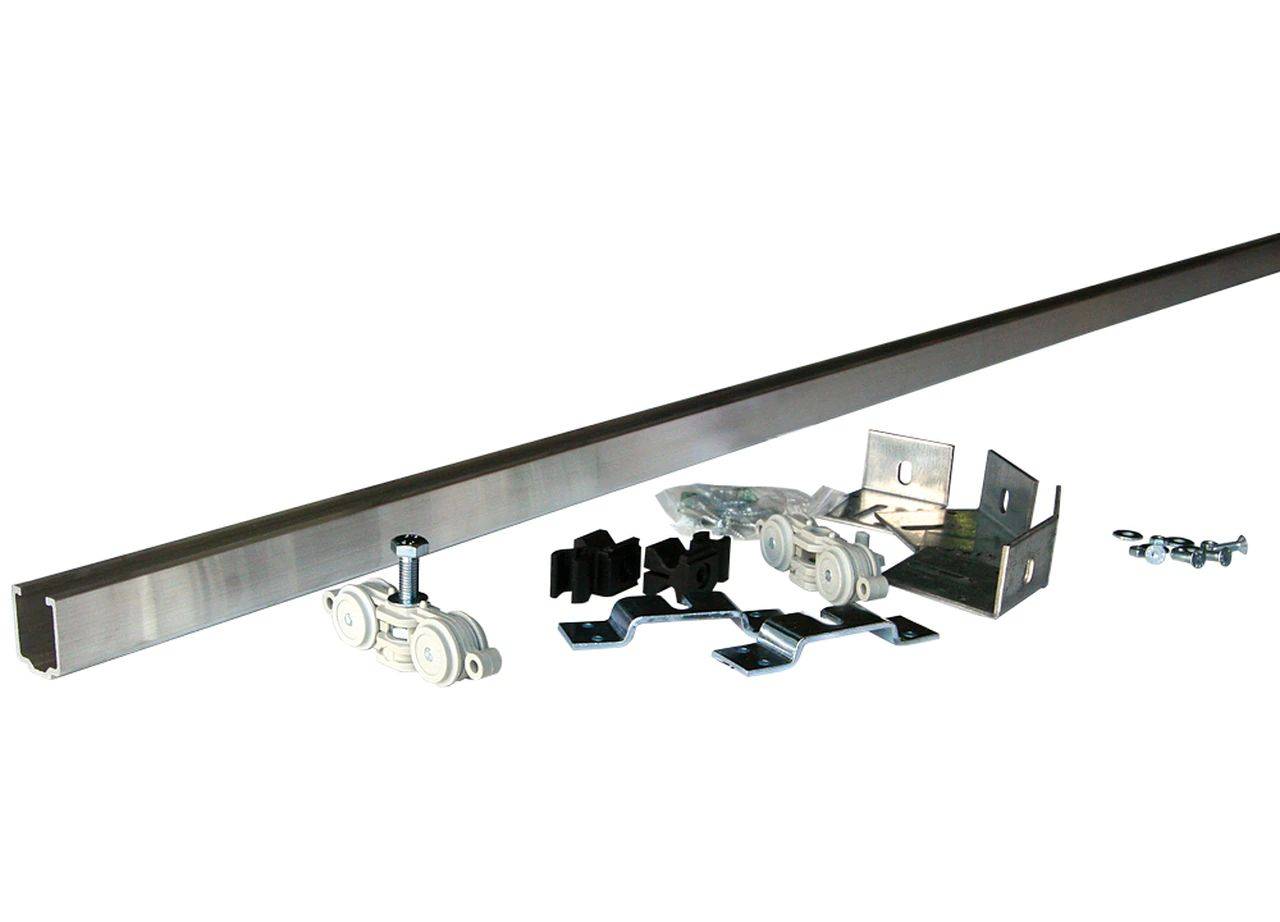

  • Paris 1: Includes a 2000 mm anodised aluminium track, high-performance runners, adjustable door stops, door guide, and fixings.
  • Paris 2: Adds a precision-cut MDF pelmet with end caps to conceal the track, offering a more integrated appearance.
  • Paris 3: Includes all Paris 2 components plus a full-length 2100 mm recessed door post in real wood veneer, complete with bumpers for a premium finish.

Each version is engineered for durability and smooth operation, supporting doors up to 60 kg (subject to substrate suitability). The system is compatible with most timber doors, allowing for customisation to match interior schemes.

General information

Color

Silver

Other

Material

Aluminium

Shape

Other

Length

2000 mm

Warranty description

15 year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/520 Sliding doors

Specification data - Sliding door and partition sets

Classification data

Performance

Internal.

Arrangement

Top hung.

Track system

2000 mm anodized aluminium.

Guidance for specification option:

Can be cut to length. No bottom track required.

Runners are tested to 100 000 cycles.

Door leaves

-

Construction

-

Manufacturer guidance

Door not supplied. Maximum door leaf weight: 60 kg (subject to suitable substrate).

Operation

Manual.

Hardware

Required.

Guidance for specification option:

Consult manufacturer for flush pull handles and insert requirements.

Not required.

Execution

Consult manufacturer for details.

Product Reference

Sliding Door Kit – Paris 1

Guidance for specification option:

  • Anodized aluminium 2000 mm-long track and running gear.
  • Adjustable door stops.
  • Door guide.
  • Fixings.

Sliding Door Kit – Paris 2

Guidance for specification option:

  • Anodized aluminium 2000 mm-long track and running gear.
  • Adjustable door stops.
  • Door guide.
  • Fixings.
  • MDF pelmet with pelmet ends to cover the track.

Sliding Door Kit – Paris 3

Guidance for specification option:

  • Anodized aluminium 2000 mm-long track and running gear.
  • Adjustable door stops.
  • Door guide.
  • Fixings.
  • MDF pelmet with pelmet ends to cover the track.
  • Full length 2100 mm recessed door post made from a real wood veneer. Comes with bumpers.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Material

Aluminium

Recyclability

55%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %

Guidance for specification option:

Aluminium.
