Surgeon's Medical Supply Pendant - Atlas Pendants
Verified by manufacturer 4 days ago
ISO 9001 Quality Management
Certificate type
QA Certificate
Certificate type
IEC International Standards
Certificate type
European Technical Approvals
Certificate type

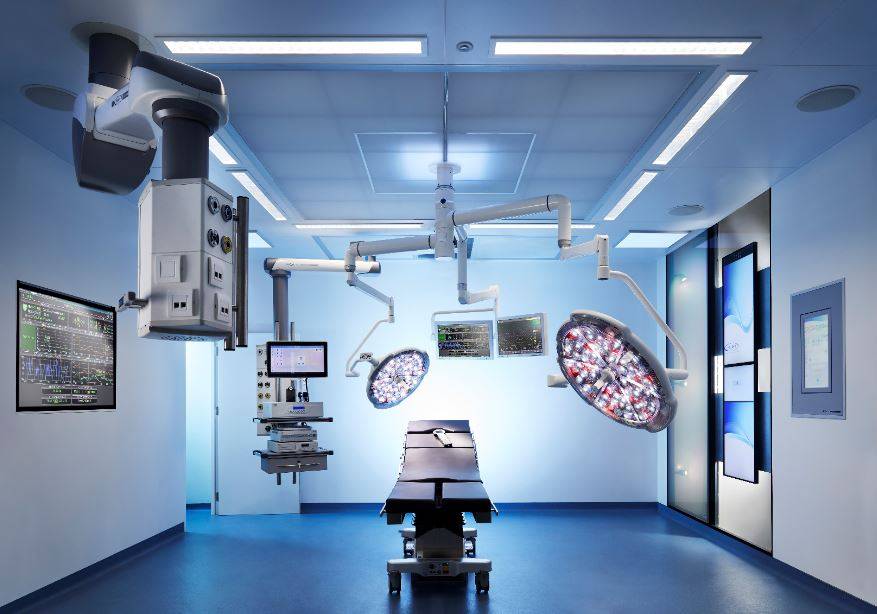

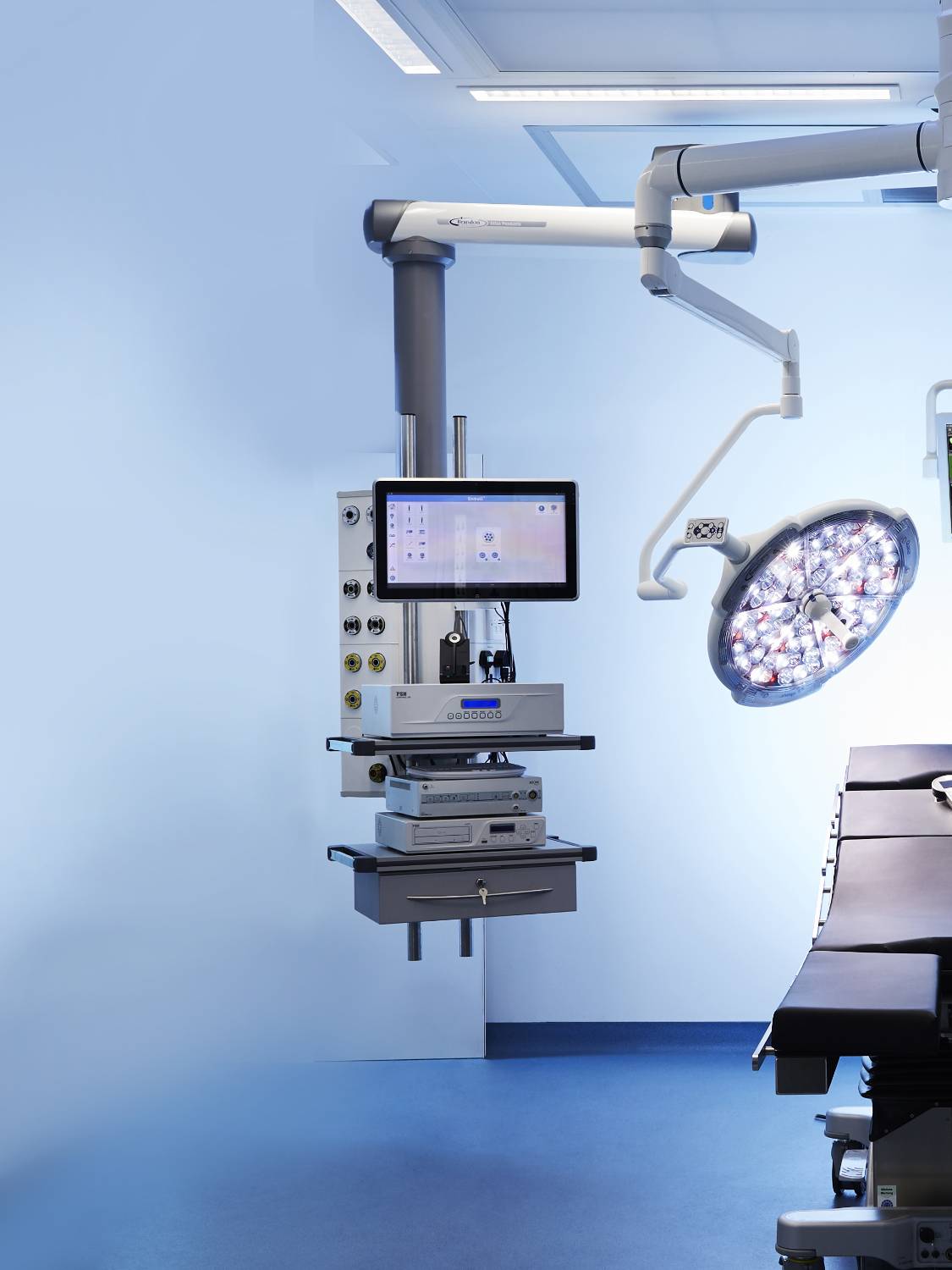

Long reach, high loading capacity pendant console and multi-function rack combination.
Application
Specific for surgeons pendant.
Description
Pendant console and multi-function rack combination that allows quick and easy access to the relevant services when you need them most, and ensures a neat and compact bed space. The long reach and high loading capacity allow for the pendants to be repositioned to suit the needs of each surgical procedure.
Features and benefits:
- Flexibility, manoeuvrability and high service capacity.
- Long reach and high loading capacity.
- Compact service console.
- Electromagnetic brakes.
- Coloured LED markers.
General information
Color | Grey Guidance for specification option: White/grey. White Guidance for specification option: White/grey. |
Finish | Anti-microbial |
Material | Steel Plastic |
Length | 2075 mm |
Width | 2075 mm |
Height | 2290 mm |
Warranty description | Five year |
Uniclass | |
CAWS | K40/395 Integrated services |
Specification data - Multi-movement pendants
General requirements | Medical gases products generally. |
Pendant type | Surgeon’s pendant. |
Outlets | 12 No. 240V 13 A Electrical Outlets, 6 No. Single Gang Provision, 1 No. Medical Oxygen Terminal Unit, 1 No. Nitrous Oxide Terminal Unit, 1 No. Medical Air 4 Bar Terminal Units, 1 No. Surgical Air 7 bar Terminal Unit, 2 No. Medical Vacuum Terminal Units and 1 No. AGSS Terminal Unit |
Weight | 165 kg. |
RatedVoltage | 240 V. |
Standard | To BS 7671, BS EN ISO 9170-2-2008 and HTM 06-01. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel Plastic |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
