Endoscopy Medical Supply Pendant - Atlas Pendants
Verified by manufacturer 4 days ago
ISO 9001 Quality Management
Certificate type
QA Certificate
Certificate type
IEC International Standards
Certificate type
European Technical Approvals
Certificate type

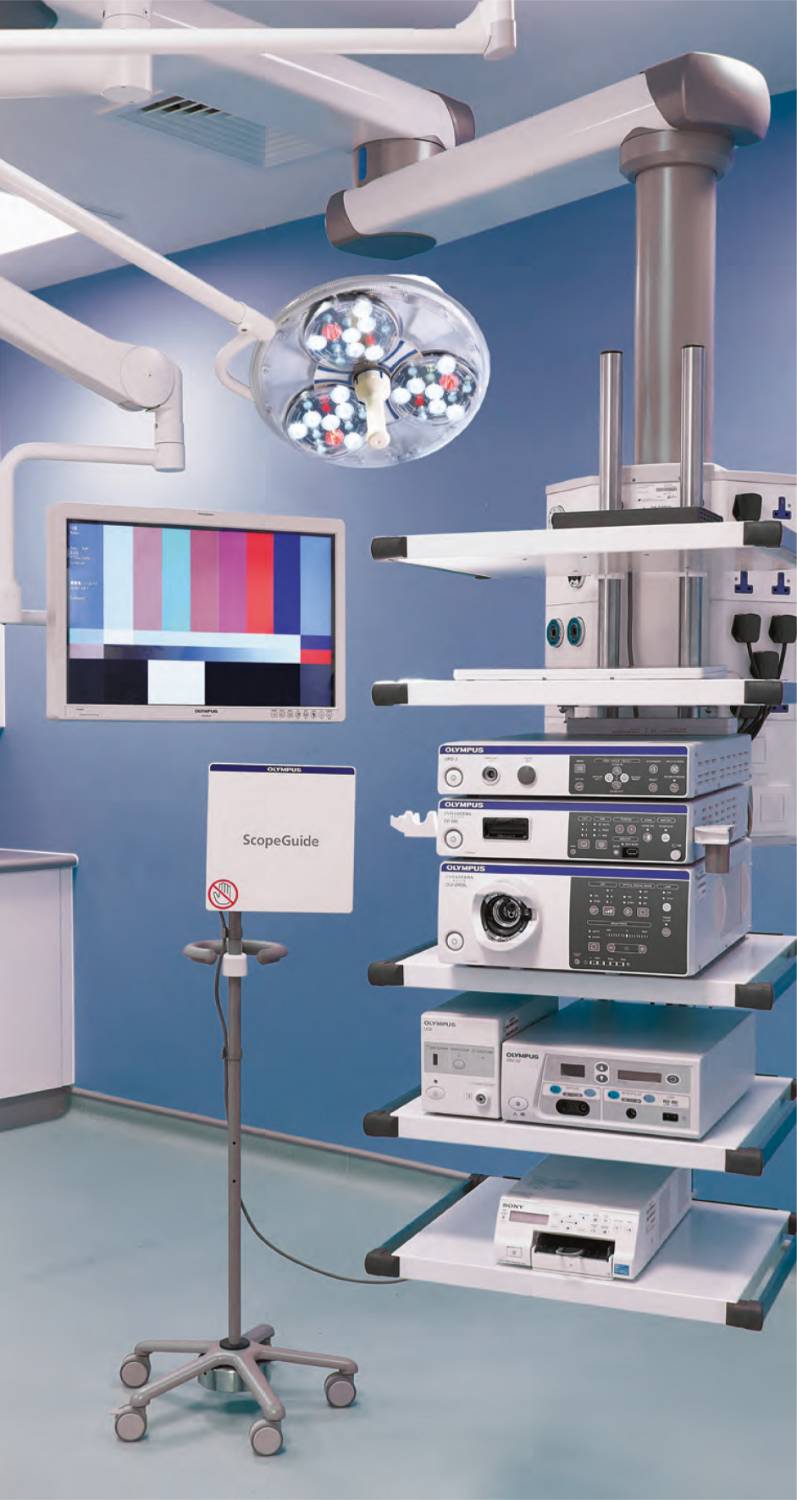

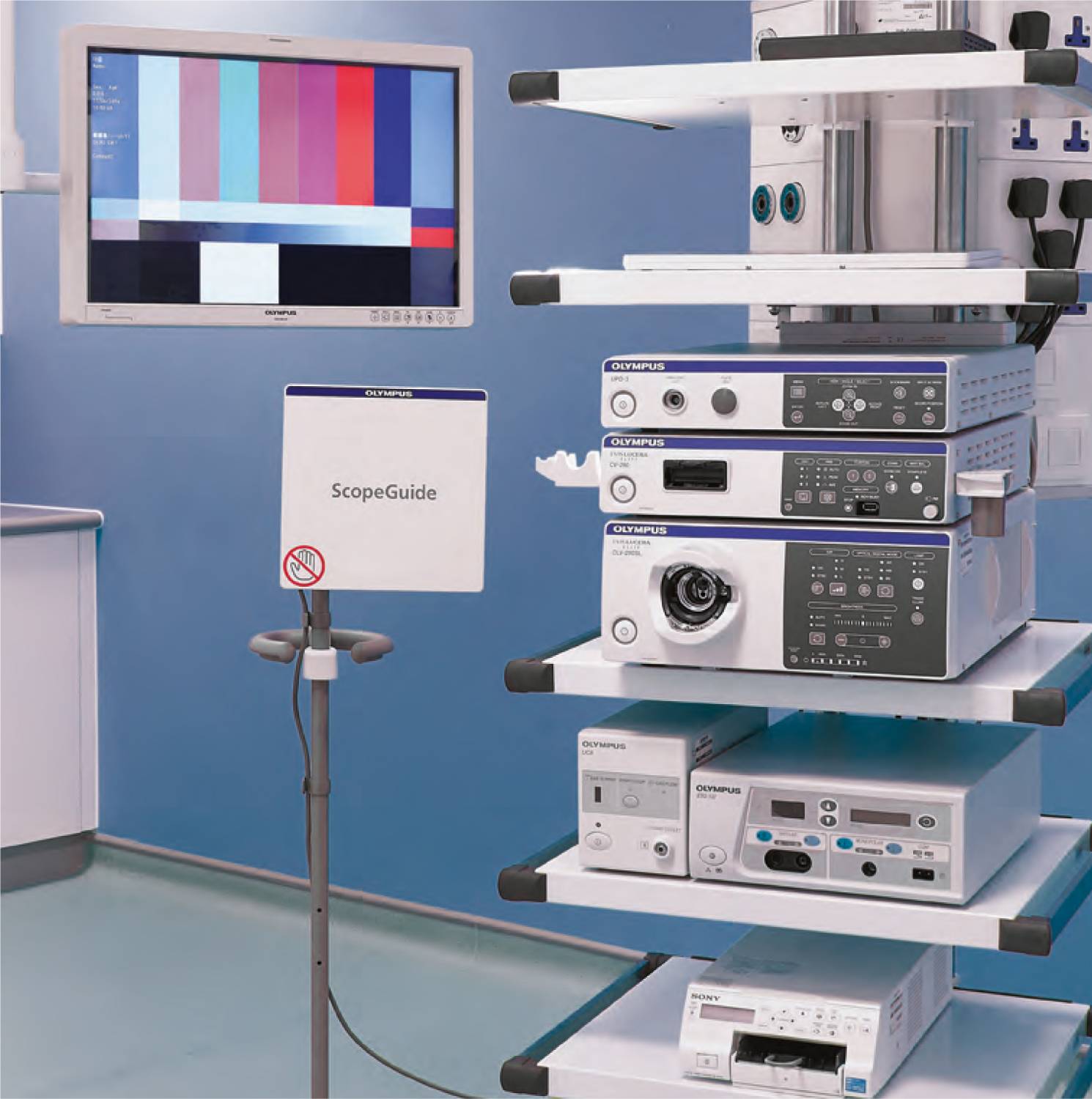

Endoscopic pendant with multi-layer trays to meet the equipment’s bearing during laparoscopic surgery.
Application
Specific for an endoscopy room for medical supply pendant to sit at one side to allow to use of multiple endoscopic systems in a flexible manner.
Description
Designed in accordance with the HBN10-02 requirements. Pendants combined with monitoring support and surgical illumination systems, creating a solution to provide all facilities required in the modern minimally invasive suites. The endoscopic pendant has multi-layer trays to meet the equipment’s bearing during the laparoscopic surgery. The system can be orientated to suit any procedure without any trailing interconnecting cables or floor mounted obstructions.
Features and benefits:
- Flexibility, manoeuvrability and high service capacity.
- Long reach and high loading capacity.
- Compact service console.
- Electromagnetic brakes.
- Coloured LED markers.
General information
Color | Grey Guidance for specification option: White/grey. White Guidance for specification option: White/grey. |
Finish | Anti-microbial |
Material | Steel Plastic |
Length | 3500 mm |
Width | 3500 mm |
Height | 2400 mm |
Warranty description | Five year |
Uniclass | |
CAWS | K40/395 Integrated services K40/250 Suspension system |
Specification data - Multi-movement pendants
General requirements | Medical gases products generally. |
Pendant type | Specific for an endoscopy room. |
Outlets | 12 No. 240V 13 A Electrical Outlets, 2 No. Single Gang Provision, 1 No. Medical Oxygen Terminal Unit, 1 No. Nitrous Oxide Terminal Unit, 2 No. Medical Air 4 Bar Terminal Units, 1 No. Medical Vacuum Terminal Units, 1 No. AGSS Terminal Unit and 1 No. CO2 Terminal Unit. |
Weight | 250 kg. |
RatedVoltage | 240 V. |
Standard | To BS 7671, BS EN ISO 9170-2-2008 and HTM 06-01. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel Plastic |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
