Cardiac Treatment Medical Supply Pendant - Atlas Pendants
Verified by manufacturer 4 days ago
ISO 9001 Quality Management
Certificate type
QA Certificate
Certificate type
IEC International Standards
Certificate type
European Technical Approvals
Certificate type

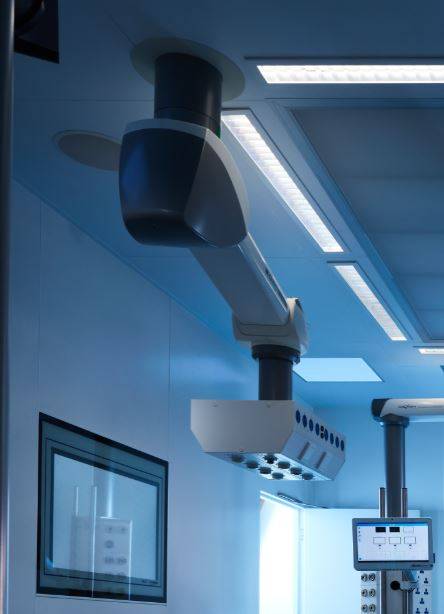

HBN01-01 compliant Cardiac Treatment Medical Supply Pendant. Ceiling-mounted, long-reach, high-loading capacity cardiac pendant. Lateral and/ or vertical movement pendants/ supply units.
Application
Suitable for use as cardiac treatment medical supply pendant.
Description
Designed in accordance with the HBN01-01 requirements. Due to the combination of long-reach and high-loading capacity, the cardiac pendant is able to service the requirements of the perfusionist and their equipment when in use and furthermore it is able to be positioned to best suit surgical procedure.
Features and benefits:
- Flexibility, manoeuvrability and high service capacity.
- Long reach and high loading capacity.
- Compact service console.
- Electromagnetic brakes.
- Coloured LED markers.
General information
Color | Grey Guidance for specification option: White/grey. White Guidance for specification option: White/grey. |
Finish | Anti-microbial |
Material | Steel Plastic |
Length | 2160 mm |
Width | 2160 mm |
Height | 1985 mm |
Warranty description | Five year |
Uniclass | |
CAWS | K40/395 Integrated services |
Specification data - Multi-movement pendants
General requirements | Medical gases products generally. |
Pendant type | Cardiac treatment pendant. |
Outlets | 8 No. 240V 13 A Electrical Outlets, 2 No. Single Gang Provision, 1 No. Medical Oxygen Terminal Unit, 1 No. Medical Air 4 Bar Terminal Units, 2 No. Medical Vacuum Terminal Units and 1 No. AGSS Terminal Unit. |
Weight | 158 kg. |
RatedVoltage | 240 V. |
Standard | To BS 7671, BS EN ISO 9170-2-2008 and HTM 06-01. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel Plastic |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
