Super insulated aluminium concealed vent window system - AWS90BS.SI
Verified by manufacturer 1 month ago
AWS90BS.SI Fixed Light
AWS90BS.SI Fixed Light
Block window with maximum thermal insulation and concealed vent for sophisticated designs.
Application
Luxury residential and commercial buildings.
Description
Block window with maximum thermal insulation and concealed vent for sophisticated designs. Optimised thermal insulation combined with the benefits of aluminium window construction in a slimline design without visible vent contours.

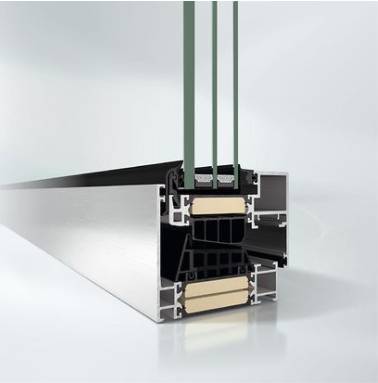

Schüco AWS 90 BS.SI (block system super insulation) meets the highest architectural requirements with the greatest possible transparency. The block window system is part of the Schüco AWS modular system for 90 mm basic depth, featuring optimised characteristics in terms of function, energy efficiency and design.
Thanks to the high level of system flexibility, sophisticated design solutions are possible for a wide range of architectural requirements in the building envelope – as a punched opening, ribbon window, floating window, or a Schüco facade systems insert unit.
The wide range of opening types includes designs as side-hung and turn/ tilt vents and bottom-hung toplights. The wide range of system profiles includes corner mullions, structural mullions, symmetrical and asymmetrical mullions, vent glazing bars, insert outer frames and TipTronic vent profiles. Schüco TipTronic SimplySmart generation of electrical fittings can be used to provide a fully-integrated drive for a number of the opening types.
Features and benefits:
- Optimised, coextruded centre gasket.
- Glazing rebate gaskets with foam core.
- Block window with extremely narrow face widths from 77 mm and a concealed vent.
- Transparent units due to proportionally less frame and large glass areas.
- No visible glazing beads.
- Ideally suited for use as a facade insert unit and in a floating window design.
- Concealed drainage.
- Drainage at the lowest profile point.
- Concealed Schüco AvanTec SimplySmart system fitting up to 160 kg.
- Insert outer frame with adapter gasket to compensate for different glazing thicknesses.
- Comprehensive profile range with mullion profiles.
- Double-vent profiles.
- Vent sash bars and insert outer frames.
Standards:
- DIN EN ISO 1077-2.
- DIN EN ISO 140-3.
- DIN EN 1627.
- DIN EN 12207.
- DIN EN 12208.
- DIN EN 12210.
- DIN EN 13115.
- DIN EN 12400.
- EN 14351-1.
General information
Color | Manufacturer guidanceBy architect. |
Finish | Polyester powder coated Anodized |
Material | Aluminium |
Uniclass | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows |
Specification data - Aluminium window units
Standard | Non-fire- and/ or smoke-rated windows to BS EN 14351-1. |
Dimensions and configurations | Fixed glazing. |
Product performance | |
Weather performance | |
UK exposure category | To BS6375-1. |
Air permeability | To EN 12207, Class 4. |
Watertightness | To EN 12208, Class 9A. |
Resistance to wind load | To EN 12210, C5/ B5. |
Safety | |
Security level | To EN 1627, RC 3 and PAS 24. |
Environmental | |
Acoustic performance rating | Up to Rw 49 dB. |
Thermal | |
British Fenestration Rating Council Window Energy Rating | A. |
Frame | |
Finish as delivered | |
Coating | Polyester powder coated.Anodized. |
Colour | Guidance for specification option: By architect. |
Film thickness (minimum) | 60 micrometres.Guidance for specification option: Polyester powder coat. 25 micrometres.Guidance for specification option: Anodized. |
Ventilator | Yes. |
Hardware | Not required. |
Operation | |
Type | Not required. |
Electrical supply | Not required. |
Execution | Fixing of aluminium frames. |
Product Reference | AWS90BS.SI Fixed Light |
Thermal insulation | ≥ 0.8 W/(m²K). |
Loading | Class 4. Guidance for specification option: Mechanical load rating. |
Durability | Class 3. |
Width | Manufacturer guidanceWidth varies dependent on profile. |
Sustainability data
Country of material origin | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
