Highly thermally insulated aluminium façade window system - AWS 70 WF.HI
Verified by manufacturer 5 months ago
AWS70WF.HI Fixed Light (Fixed Glazing)
AWS70WF.HI Fixed Light (Fixed Glazing)
Aluminium facade window system.
Application

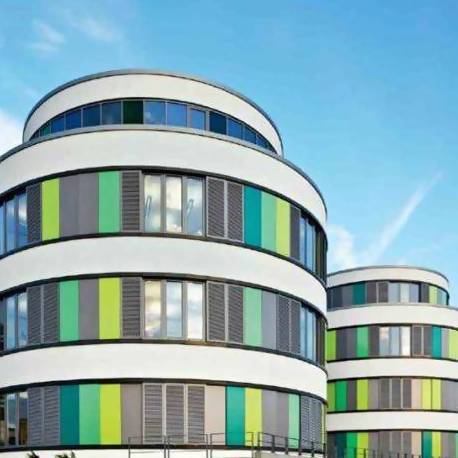

Luxury residential and commercial buildings.
Description

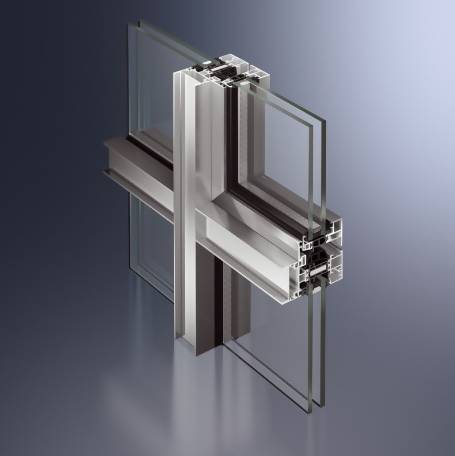

The Schüco AWS 70 WF.HI (window facade) system is particularly suitable for the low-cost construction of ribbon windows. Based on the Schüco AWS 70 BS.HI block window solutions, this window facade offers comprehensive design options with cover cap versions, structural mullions, and the suggestion of a mullion/ transom construction in the external view with a 50 mm face width. In combination with the Schüco AvanTec and Schüco TipTronic concealed fittings, Schüco AWS 70 WF.HI meets the very highest standards in terms of both design and ease of use.
Features and benefits:
- Comprehensive design options through the use of cover caps and structural mullions.
- Slender, open and transparent appearance.
- Window facade with a narrow external face width of 50 mm.
- Concealed block windows.
- Available with flush-fitted vents.
- Graduated mullion.
- Transom and outer frame options in Residential Line look.
- Efficient solution for ribbon windows.
- The benefit of unitized frame fabrication compared with facade units.
- Concealed drainage.
- Profiles available in a variety of colours.
- Drainage at the lowest profile point.
- Concealed Schüco AvanTec system fittings up to 160 kg.
- All assemblies to include a Schueco Internet of Facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records creating a project’s digital twin.
Standards:
- DIN EN ISO 1077-2.
- DIN EN ISO 140-3.
- DIN EN 1627.
- DIN EN 12207.
- DIN EN 12208.
- DIN EN 12210.
- DIN EN 13115.
- DIN EN 12400.
- EN 14351-1.
General information
Color | Silver Other |
Finish | Powder-coated Anodized |
Material | Aluminium Glass |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows |
Specification data - Aluminium window units
Standard | Non-fire- and/ or smoke-rated windows to BS EN 14351-1. |
Dimensions and configurations | Manufacturer guidanceFixed glazing. Consult manufacturer for options and insert requirements. |
Product performance | |
Weather performance | |
UK exposure category | To BS 6375-1.Guidance for specification option: Consult manufacturer for details. |
Air permeability | To EN 12207, Class 4. |
Watertightness | To EN 12208, Class 9A.Guidance for specification option: Durability: Class 3. |
Resistance to wind load | To EN 12210, C2/B3.Guidance for specification option: The amount of deflection will depend on the profile; consult manufacturer for details. |
Durability | |
Operation and strength characteristics | Mechanical loading Class 4. |
Safety | |
Security level | Manufacturer guidanceInsert requirements, up to RC3. Consult manufacturer for details. |
Environmental | |
Frame to glazing ratio (maximum) | Manufacturer guidanceInsert requirements or omit. |
Acoustic performance rating | Manufacturer guidanceInsert requirements, up to Rw 45 dB. |
Thermal | |
Whole window U-value | Manufacturer guidanceInsert requirements, 1.9—2.2 W/m²K. Uf (frame): 1.5 W/m²/K. |
Frame | |
Profile | Manufacturer's standard.Guidance for specification option: Basic system depth: 70 mm. |
Finish as delivered | |
Coating | Polyester powder-coated.Anodized. |
Colour | Guidance for specification option: Insert requirements (polyester powder-coated finish only). |
Film thickness (minimum) | Manufacturer's standard.Guidance for specification option: 60 µm (polyester powder coated) or 25 µm (anodized). |
Ventilator | Manufacturer guidanceInsert requirements or omit. |
Glazing or infill | |
Requirements | Manufacturer guidanceInsert requirements; triple glazing as standard, up to 62 mm thick. Consult manufacturer's literature for further details. |
Fixing features | Manufacturer guidanceInsert requirements. |
Face width | 50 mm. Guidance for specification option: External. |
Label | Schueco ‘IoF’ ID tag with QR code. Guidance for specification option: Internet of facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Recyclability | cradle2cradle |
