Highly thermally insulated concealed vent window system - AWS70BS.HI

Verified by manufacturer 14 days ago

AWS70BS.HI Fixed Light

Schueco UK Ltd Variant:

High thermally-insulated block window with concealed vent.

Jump to:
+44 (0)1908 282111 Website

Application

Luxury residential and commercial buildings, particularly within the education sector.

Description

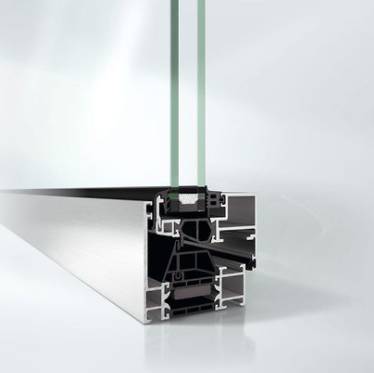

With excellent thermal insulation values and a slimline design without visible vent contours, Schüco AWS 70 BS.HI (block system high insulation) meets the highest energy-efficiency and architectural requirements with the greatest possible transparency. The aluminium block window system is part of the Schüco AWS modular system for the 70 mm basic depth, combining function, energy efficiency with design. High system flexibility allows attractive design solutions for a wide range of architectural requirements: punched opening, ribbon or floating window, or a Schüco facade systems insert unit. The wide range of opening types includes side-hung and turn/ tilt vents and bottom-hung top lights. The wide range of profiles include corner mullions, structural mullions, symmetrical and asymmetrical mullions, and insert outer frames. The Schüco TipTronic SimplySmart generation of electrical fittings, featuring a fully integrated drive for numerous opening types, can also be used.


Features and benefits:

  • Transparent units through proportionately narrow frames to large glass surfaces.
  • No visible glazing beads.
  • Ideally suited for use as insert units in façades.
  • Profiles available in a variety of colours.
  • Concealed drainage.
  • Concealed Schüco AvanTec system fittings up to 160 kg.


Standards:

  • DIN EN ISO 1077-2.
  • DIN EN ISO 140-3.
  • DIN EN 1627.
  • DIN EN 12207.
  • DIN EN 12208.
  • DIN EN 12210.
  • DIN EN 13115.
  • DIN EN 12400.
  • EN 14351-1.

General information

Color

-

Manufacturer guidance

Profiles available in a variety of colours, consult manufacturer.

Finish

Polyester powder coated

Anodized

Material

Aluminium

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Standard

Non-fire- and/ or smoke-rated windows to BS EN 14351-1.

Dimensions and configurations

Fixed glazing.

Product performance

-

Weather performance

-

UK exposure category

To BS6375-1.

Air permeability

To EN 12207, Class 4.

Watertightness

To EN 12208, Class 9A.

Resistance to wind load

To EN 12210, C5/ B5.

Safety

-

Security level

To EN 1627, RC 3 and PAS 24.

Environmental

-

Acoustic performance rating

Up to Rw 45 dB.

Thermal

-

British Fenestration Rating Council Window Energy Rating

A.

Frame

-

Finish as delivered

-

Coating

Polyester powder coated.

Anodized.

Colour

Guidance for specification option:

By architect.

Film thickness (minimum)

60 micrometres.

Guidance for specification option:

Polyester powder coated.

25 micrometres.

Guidance for specification option:

Anodized.

Ventilator

Yes.

Hardware

Not required.

Operation

-

Type

Not required.

Electrical supply

Not required.

Execution

Fixing of aluminium frames.

Product Reference

AWS70BS.HI Fixed Light

Thermal insulation

1.6—2.3 W/(m²K).

Durability Class

Class 3.

Depth

70 mm.

Width

67 mm.

Guidance for specification option:

Nominal.

Loading

Class 4.

Guidance for specification option:

Mechanical load rating.

Sustainability data

Country of material origin

United Kingdom

BIM objects

Platform Compatible Version
Revit
-

1
