Aluminium window system roof - AWS57 RO

Verified by manufacturer 5 months ago

Schueco UK Ltd

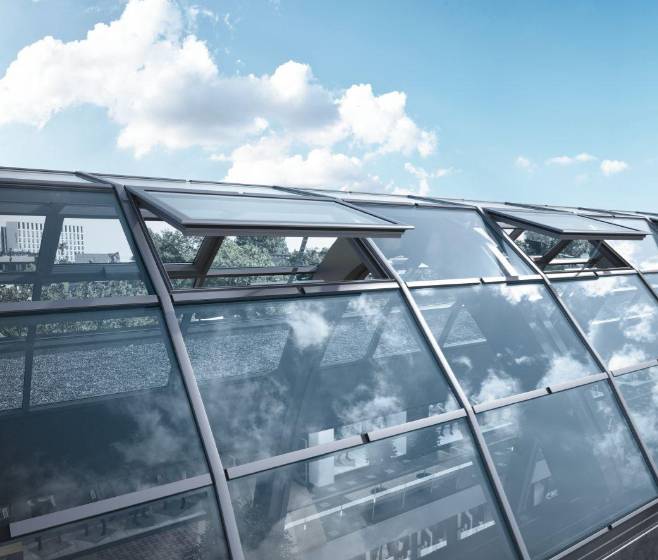

Top hung aluminium window with outward opening.

Jump to:
+44 (0)1908 282111 Website

Application

Luxury residential and commercial buildings.

Description

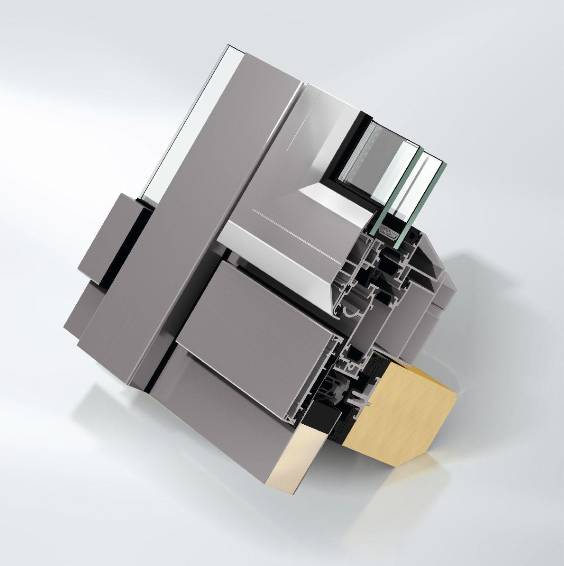

Top hung aluminium window with an outward opening –roof glazing with two thermal insulation standards, outer frames of different heights and design options.

The Schüco AWS 57 RO (roof) window system can be used as a roof window almost anywhere, including in the building automation system. The easy-to-install system provides proven system reliability in sophisticated skylight constructions with the Schüco mullion and transom facades and Schüco add-on constructions as well as in combination with the Schüco CMC 50 conservatory system.


Features and benefits:

  • High level of flexibility thanks to two different outer frame depths and two different thermal insulation standards.
  • High level of weather tightness due to an additional centre gasket.
  • Glass thicknesses of 26–48 mm can be installed, i.e. also suitable for special glazing and stepped glass.
  • Concealed turn hinges (RC 2) increase burglar resistance.
  • Opening angles of up to 90° are possible.
  • It can be used for roofs pitches from 7° to 75°.
  • Roof pitches < 7° or > 75° on request.


Standards:

  • EN 14351-1.
  • EN 12207.
  • EN 12208.
  • EN 12210.
  • DIN EN 13501-5.
  • DIN EN 13501-1.
  • EN ISO 717-1.
  • DIN V ENV 1627.
  • EN 12400.
  • EN 12101-2.
  • DIN EN ISO 12567-2.
  • DIN EN ISO 10077-2.

General information

Finish

Polyester powder coated

Anodized

Material

Aluminium

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Standard

Non-fire- and/ or smoke-rated windows to BS EN 14351-1.

Dimensions and configurations

Top hung and bottom hung.

Product performance

-

Weather performance

-

UK exposure category

To BS 6375-1.

Air permeability

To EN 12207, Class 4.

Watertightness

To EN 12208, E1200.

Resistance to wind load

To EN 12210, 5C.

Durability

-

Operation and strength characteristics

Class 3.

Safety

-

Security level

To EN 1627, RC 2.

Environmental

-

Acoustic performance rating

To BS EN ISO 717-1, 39 dB.

Frame

-

Finish as delivered

-

Coating

Polyester powder coated.

Anodized.

Colour

Guidance for specification option:

By architect.

Film thickness (minimum)

60 micrometres.

Guidance for specification option:

Polyester powder coated.

25 micrometres.

Guidance for specification option:

Anodized.

Ventilator

Yes.

Operation

-

Type

Manual and automatic.

Electrical supply

Top hung and bottom hung.

Execution

Fixing of aluminium frames.

Product Reference

Aluminium window system roof - AWS57 RO

Resistance to fire

ᴮROOF (t1).

Guidance for specification option:

Resistance to fire from outside.

Thermal insulation

1.7—1.9 W/m²K.

Sustainability data

Country of material origin

United Kingdom
