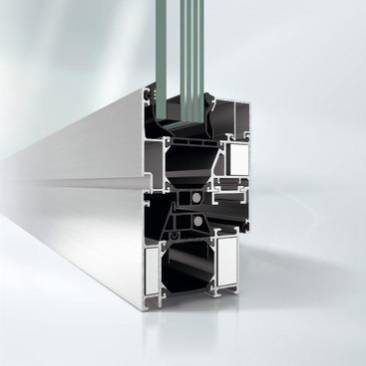

Aluminium fire-resistant window system - AWS 70 FR 30
Verified by manufacturer 14 days ago
Fire-resistant side-hung inward opening window.
Application
Suitable to meet the needs of fire resistance classes F30/ G30 in accordance with DIN 4102 and classes EI30/ EW30 in accordance with DIN EN 1364/ 1634 with mechanical self-locking in the event of fire.
Description
Fire-resistant, side-hung, inward opening window systems with basic depths of 60 or 70 mm and thermal insulation, weathertightness and noise reduction qualities
Features and benefits:
- Automatic self-locking in the event of fire.
- Concealed fittings based on Schüco AvanTec.
- Can be used as a punched opening or an integrated window unit in Schüco FW 50+BF und FW 60+BF fire façade.
Standards:
- EN 12210.
- EN 12208.
- EN 12207.
- EN 12219.
- EN 12217.
- EN 13049.
- EN 1634-1.
- EN 1634-3.
- EN 1191.
General information
Material | Aluminium |
Uniclass | |
CAWS | L10/10 Wood windows L10/330 Aluminium windows |
Specification data - Aluminium window units
Standard | Fire- and/ or smoke-rated opening windows to BS EN 14351-1. |
Dimensions and configurations | Fire-resistant side-hung inward opening window. |
Product performance | |
Fire performance | |
Fire resistance | To EN 1364 and EN 1634, EW30, El²30, El1³0.Guidance for specification option: Aluminium fire-resistant constructions F30 / G30 in accordance with DIN 4102. |
Weather performance | |
UK exposure category | To BS6375-1. |
Air permeability | To EN 1026, Class 4. |
Watertightness | To EN 1027, Class 9A. |
Resistance to wind load | To EN 12211, C5/B5. |
Environmental | |
Acoustic performance rating | Up to Rw 48 dB. |
Thermal | |
Whole window U-value | Guidance for specification option: Consult manufacturer. Manufacturer guidanceThermal transmittance. |
Frame | |
Finish as delivered | |
Coating | Polyester powder coated.Anodized. |
Colour | Guidance for specification option: By Architect. |
Film thickness (minimum) | 60 micrometres.Guidance for specification option: Polyester powder coated. 25 micrometres.Guidance for specification option: Anodized. |
Ventilator | 1300 x 1900 mm.Manufacturer guidanceVent size. |
Hardware | Avantec Simply Smart. |
Operation | |
Type | Manual and automatic. |
Electrical supply | Side hung. |
Execution | Fixing of aluminium frames. |
Product Reference | Aluminium fire-resistant window system - AWS 70 FR 30 |
Depth | 60 mm. 70 mm. |
Cycles | ≥ 10 000. Manufacturer guidanceSelf closing cycles. |
Load | To EN 1191, Class 1. Manufacturer guidanceMechanical load rating. |
Smoke-resistance | Smoke-proof at 200°C. Manufacturer guidanceSmoke stop. |
Sustainability data
Country of material origin | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
