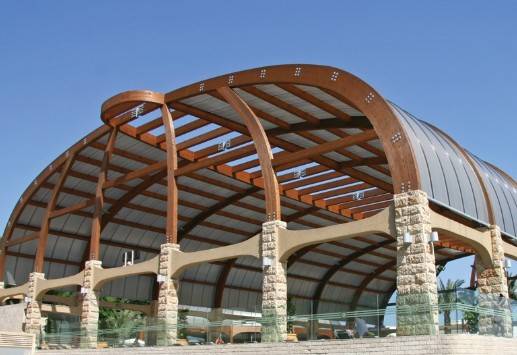

Sunpal® Polycarbonate Glazing System - Roof System
Verified by manufacturer 1 day ago
Sunpal® 8/600 Lite
Sunpal® 8/600 Lite
Robust polycarbonate glazing system with aluminium bars, UV protection, and multiple thickness and colour options, suitable for various sectors.
Application
Suitable for education, hospitality, leisure, retail, commercial, and healthcare projects requiring robust roof glazing systems.
Description
Sunpal® polycarbonate glazing systems are designed to cover large or small projects with a high-quality, robust roof system.
Features and benefits:
- Features multiwall polycarbonate panels and aluminium glazing bars.
- Up to 99.99% UV protection to prevent yellowing over time.
- Light transmission ranges from 20% to 90% depending on the polycarbonate colour chosen.
- Polycarbonate strength is 250 times the impact strength of glass and 30 times the impact resistance of acrylic.
- Available in 29 polycarbonate colours.
- Available in a choice of 8 mm, 10 mm, 18 mm and 20 mm.
- Polycarbonate sheets achieve European standard EN 13501 B, s1, d0 (dependent on the panel thickness).
- Can be added to an existing structure.
General information
Color | Clear Beige Black Blue Bronze |
Finish | Glazed |
Material | Polycarbonate Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | 600 mm 1000 mm |
Height | 8 mm 10 mm 18 mm 20 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | L40/170 Plastics glazing sheet B12/45 Plastics glazing sheet B12/390 Plastics glazing sheet |
Specification data - Plastics glazing sheets
Classification data | |
Material | Multiwall polycarbonate, UV-stable. |
Thickness | 8 mm. |
Sheet-formed radius | Manufacturer guidanceConsult manufacturer and insert requirements. Minimum cold bending radius: 2.0 m. |
Colour | Clear. Bronze. Grey. White opal. White ice. Green. Blue. Red. Purple. Magenta. Orange. Yellow. Aqua green. Navy blue. White/ bronze (Multi Layer). White/ grey (Multi Layer). White/ blue (Multi Layer). White/ red (Multi Layer). Solar ice (Solar Smart). Solar control (Solar Smart). Bluish breeze (Solar Smart). Clear (Diffuser Plus). Bronze (Diffuser Plus). White opal (Diffuser Plus). Green (Diffuser Plus). Blue (Diffuser Plus). Red (Diffuser Plus). Solar ice (Diffuser Plus). Grey (Diffuser Plus). |
Performance requirements | |
Fire performance | To EN 13501, B,s1,d0. Guidance for specification option: Depending on panel thickness, consult manufacturer for details. |
Opacity | Manufacturer's standard. Guidance for specification option: Depending on the polycarbonate colour chosen. |
Light transmission | 20–90%. Guidance for specification option: Depending on the polycarbonate colour chosen. |
Thermal transmission | 1.50–2.45 W/m²·K. Guidance for specification option: Depending on thickness. |
Impact resistance | Manufacturer's standard. Guidance for specification option: 250 times the impact strength of glass and 30 times the impact resistance of acrylic, consult manufacturer for details. |
Glazing bar | Aluminium. |
Cover width | 600 mm. |
Flexural strength | To ASTM D-638, 62 MPa. Guidance for specification option: With conditions of 10 mm/min. |
Height (overall) | 23.5 mm (31 mm with polycarbonate liner). |
Average panel weight | 1.83 kg/m². |
Sustainability data
Contains Red List materials | No |
Material | Polycarbonate Aluminium |
