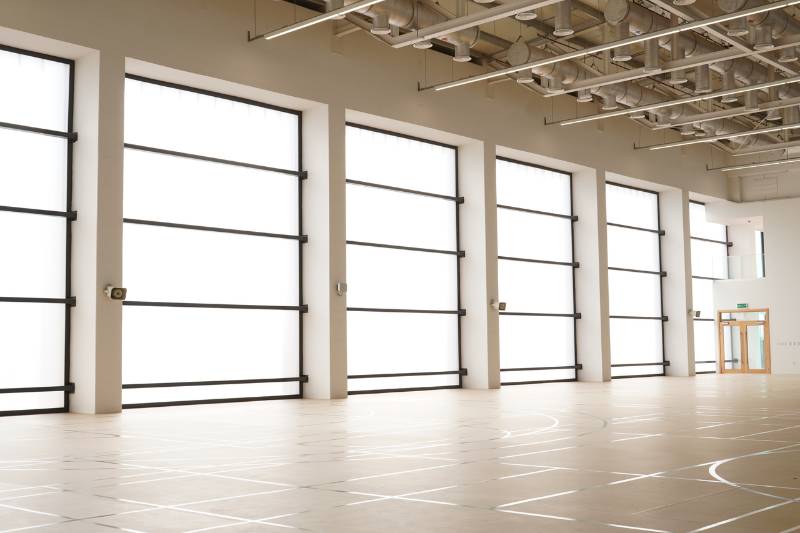

Marlon Clickfix is the architectural glazing system used for vertical facades. The 40 mm thick, tenwall polycarbonate panels are modular and connect with a simple click and fix interlock for fast and easy on-site installation to provide a seamless glazing option.

The panels are used a choice of with glazing frame options including the VF70 and VF90 polycarbonate glazing frames which are suitable for vertical façades, cladding and partitioning applications internally and externally.

Marlon Clickfix offers a thermally efficient method of introducing natural light into a building and is suitable for a wide range of commercial and industrial applications.

Marlon Clickfix is also available in Marlon BioPlus, the ideal choice for projects that aim to deliver the highest standards in sustainability, allowing companies to demonstrate they are at the forefront of the low carbon circular economy.

Marlon BioPlus is made with a bio-circular attributed resin in which 89% of the fossil based raw material has been replaced by renewable hydrocarbons e.g., from used cooking oil, which dramatically reduces the impact of the finished sheet on the environment, whilst maintaining the same material properties and ease of processing

Features and benefits:

Simple click and fix installation.
U value 0.99 W/m²K.
Reduces energy consumption.
Full range of accessories.
High light transmission.
Damage and impact resistant.
Excellent structural durability.
Lightweight and easy to handle.
Weatherable and UV resistant.
Excellent fire performance.
Limited warranty.
The product has been independently tested to various Fire Standards; for the most current certification please contact the manufacturer.
REACH and RoSH compliant, and 100% recyclable.
Limited warranty. Consult manufacturer for details.

For span details consult manufacturer's literature.

Marlon Clickfix VF70:

70 mm profile sight light allowing longer façades up to 8 m.
Two part glazing profile, registered design.
Thermally broken.
Simplified installation sequence.
Fixed through base or direct to purlin.
Shared coextruded high temperature dynamic grey TPV gasket (Santoprene).
Water managed and drained via hidden slot in shadow gap.
Reinforced pre-formed 90 degree corners.
Same profile used in all orientations.

Marlon Clickfix VF90:

90 mm deep profile increases void for polycarbonate thermal expansion allowing façades up to 12 m in height.
Thermally broken U profile.
Water managed system, with machined external drainage slots.
Coextruded TPE barbed gasket.
Sealing alignment brackets between profiles.
