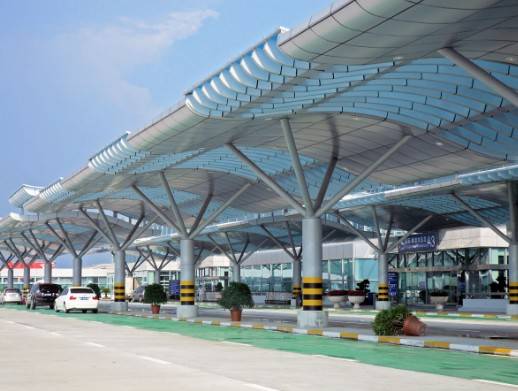

Sunglaze® Polycarbonate Glazing System - Roof System
Verified by manufacturer 1 day ago
Sunglaze® 3/600
Sunglaze® 3/600
Robust polycarbonate glazing system with aluminium bars, UV protection, high impact resistance, and multiple thickness and colour options, suitable for various sectors.
Application
Suitable for education, hospitality, leisure, retail, commercial, and healthcare projects requiring robust roof glazing systems.
Description
Sunglaze® polycarbonate glazing systems are designed to cover large or small projects with a high-quality, robust roof system.
Features and benefits:
- Features solid polycarbonate panels and aluminium glazing bars.
- Up to 99.99% UV protection to prevent yellowing over time.
- Light transmission ranges from 20% to 90% depending on the polycarbonate colour chosen.
- High impact resistance exceeding traditional glass and some other polycarbonate products.
- Engineered to withstand high loads for various architectural applications including roofing and glazing systems.
- Available in 11 polycarbonate colours.
- Available in a choice of 3 mm, 4 mm, and 6 mm.
- Polycarbonate sheets achieve European standard EN 13501 B,s1,d0 fire ratings depending on panel thickness.
- Can be added to an existing structure.
General information
Color | Clear White |
Finish | Glazed |
Material | Aluminium Polycarbonate |
Shape | Rectangle |
Length | Bespoke |
Width | 600 mm 800 mm |
Height | 3 mm 4 mm 6 mm Manufacturer guidanceThickness. |
Warranty description | 15 year |
Uniclass | |
CAWS | L40/170 Plastics glazing sheet B12/45 Plastics glazing sheet B12/390 Plastics glazing sheet |
Specification data - Plastics glazing sheets
Classification data | |
Material | Polycarbonate, UV-stable. |
Thickness | 3 mm. |
Sheet-formed radius | Manufacturer guidanceConsult manufacturer and insert requirements. |
Colour | Clear. Bronze. Grey. White opal. White diffuser. Solar ice (Solar Smart). Solar control (Solar Smart). Solar olympic (Solar Smart). Smart green (Solar Smart). Smart blue (Solar Smart). Bluish breeze (Solar Smart). |
Performance requirements | |
Fire performance | To EN 13501, B,s1,d0. Guidance for specification option: Depending on panel thickness, consult manufacturer for details. |
Opacity | Manufacturer's standard. Guidance for specification option: Depending on the polycarbonate colour chosen. |
Light transmission | 20–90%. Guidance for specification option: Depending on the polycarbonate colour chosen. |
Thermal transmission | 5.04–5.43 W/m²·K. Guidance for specification option: Depending on thickness. |
Impact resistance | Manufacturer's standard. Guidance for specification option: Provides high impact resistance, exceeding that of traditional glass and other polycarbonate products, consult manufacturer for details. |
Glazing bar | Aluminium. |
Cover width | 600 mm. |
Flexural strength | To ASTM D-790, 93 MPa. Guidance for specification option: With conditions of 1 mm/min. |
Sustainability data
Material | Aluminium Polycarbonate |
