Structurally Glazed stick curtain walling façade system - FWS 60 SG

Verified by manufacturer today

Schueco UK Ltd

Slimline all-glass facade with 60 mm face width.

Jump to:
+44 (0)1908 282111 Website

Application

Residential, commercial buildings, education, student accommodation and hospitality.

Description

The Schüco FWS 60 SG (structural glazing) facade system with 60 mm face width enables large-scale, all-glass facades including double insulating glass for excellent thermal insulation.

The system can be designed in a flush-fitted all-glass look or in a semi-structural glazing look. Additional design freedom is provided by the comprehensive cover cap range: a horizontal or vertical emphasis on the facade can create attractive architectural features.


Features and benefits:

  • External spaces between the panes of 12, 16 and 20 mm.
  • Concealed fixing of insulating glass units with glazing clips.
  • Plastic pocket profile for incremental mechanical fixing of the insulating glass unit to the load-bearing structure.
  • Screw-in glazing clip.
  • Clip-on function for simple profile installation.
  • Colour coding for correct foil positioning when attaching to the building structure.
  • Efficient production of the structural glazing insulating glass with two-part stainless steel spacer.
  • Plastic pocket profile for incremental engagement in the pane edge seal or with one-part aluminium spacer as well as through the use of fabrication machinery developed specifically for the respective application.
  • All assemblies to include a Schueco Internet of Facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records creating a project’s digital twin.


Standards:

  • EN 13830.
  • EN 1627.
  • CWCT.

General information

Color

Silver

Other

Finish

Powder-coated

Anodized

Material

Aluminium

Glass

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_10_20_85 Stick curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

Specification data - Stick curtain walling systems

Framing

-

Frame members

Aluminium curtain wall frame sections, polyester powder coated.

Guidance for specification option:

Insert colour requirements.

Aluminium curtain wall frame sections, anodized.

Aluminium curtain wall frame sections, painted.

Guidance for specification option:

Insert colour requirements.

Frame accessories

-

Manufacturer guidance

Consult manufacturer for options and insert requirements, or omit.

Fasteners

Manufacturer's standard.

Cladding units

-

Glass units

-

Manufacturer guidance

Insert requirements, including thickness 32–44 mm thick.

Glazing accessories

-

Manufacturer guidance

Insert requirements or omit.

Fasteners

Manufacturer's standard.

Perimeter seals

Manufacturer's standard.

System accessories

-

Manufacturer guidance

Consult manufacturer for options and insert requirements, or omit.

Face width

60 mm.

Thermal transmittance (U-Value)

-

Manufacturer guidance

Insert requirements or consult manufacturer for values.

Uf value of frame: ≥ 1.2 W/m²K.

Acoustic performance rating

-

Manufacturer guidance

Insert requirements, up to Rw 46 dB.

Burglar resistance

-

Manufacturer guidance

Insert requirements; to EN 1627, up to RC 2.

Air permeability

Class AE.

Watertightness

Class RE 1200.

Resistance to wind load

2.4/ 3.6 kN/m².

Guidance for specification option:

Design load/ safety load.

Impact resistance

Class I5/ E5.

Label

Schueco ‘IoF’ ID tag with QR code.

Guidance for specification option:

Internet of facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records.

Sustainability data

Country of material origin

United Kingdom

BIM objects

Platform Compatible Version
Revit
-

1

Similar products from Schueco UK Ltd

Add-On Construction (AOC)

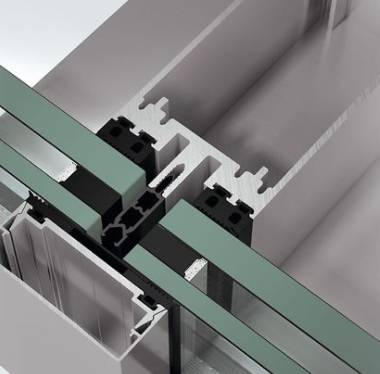

Blast-resistant stick curtain walling façade system - FW 60+ XR

Blast-resistant stick curtain walling façade system - FW 60+ XR

Concealed vent stick curtain walling façade system - FWS 60 CV

Concealed vent stick curtain walling façade system - FWS 60 CV

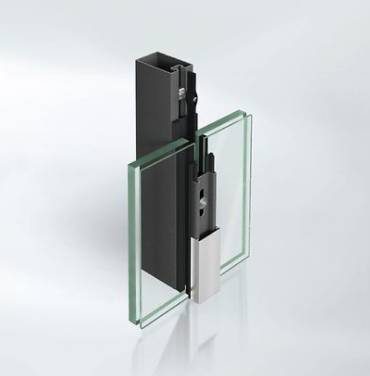

Fire-resistant Steel Stick Curtain Walling Façade System - VISS Fire

Fire-resistant Steel Stick Curtain Walling Façade System - VISS Fire

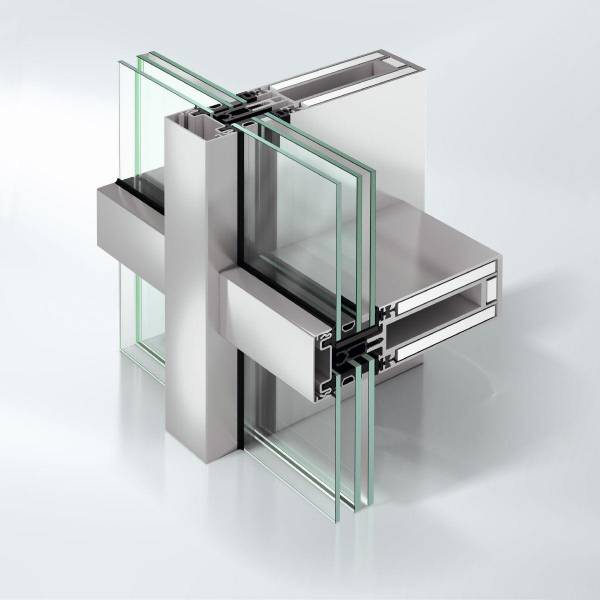

Fire-resistant stick curtain walling façade system - FW 50+ BF

Fire-resistant stick curtain walling façade system - FW 50+ BF

Fire-resistant stick curtain walling façade system - FW 60+ BF

Fire-resistant stick curtain walling façade system - FW 60+ BF

Fire-resistant stick curtain walling façade system - FW50+ FR60

Fire-resistant stick curtain walling façade system - FW50+ FR60

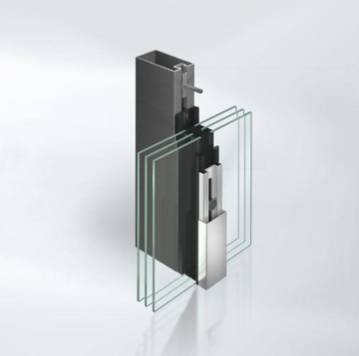

Highly Thermally Insulated Steel Stick Curtain Walling Façade System - VISS 50
