Concealed vent stick curtain walling façade system - FWS 60 CV
Verified by manufacturer 5 months ago
Concealed vent facade system.
Application
Residential, commercial buildings, education, student accommodation and hospitality.
Description

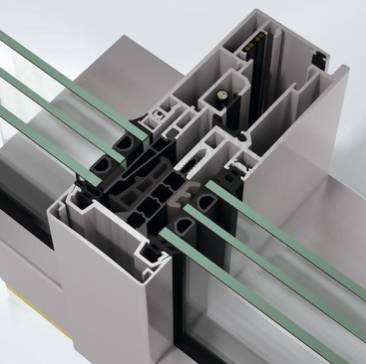

The Schüco FWS 60 CV (concealed vent) facade system seamlessly combines slimline face widths with functionality and thermal insulation. With a face width of 60 mm, opening units and fixed lights are indistinguishable from the outside. On the flush, closed inside, only a slender shadow gap and the window handle betray the vents' presence.
Features and benefits:
- Slender profiles with identical face widths for opening units and fixed fields.
- Flush-fitted on the inside with minimal shadow gap.
- Top/ bottom light is made possible through a glazing bar and a two-part glazing profile.
- Efficient fittings installation through the use of the Schüco AvanTec SimplySmart Fittin.
- Integrated spandrel safety barriers.
- System-specific, continuous system for attaching to the building structure.
- All assemblies to include a Schueco Internet of Facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records creating a project’s digital twin.
Standards:
- EN 14351-1.
- EN 12207.
- EN 12208.
- EN 12210.
- EN 13115.
- EN 12400.
- EN 13049.
- DIN V ENV 1627.
- EN 12412-2.
- DIN 18008-4.
- EN ISO 10140.
- EN ISO 717-1.
- ASTM E 90-09.
- ASTM E 413-10.
- ASTM E 1332-10a.
- EN ISO 10848-1.
- EN ISO 717-1.
- EN ISO 10848-1.
General information
Color | Silver Other |
Finish | Powder-coated Anodized |
Material | Aluminium Glass |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H11/110 Curtain walling |
Specification data - Stick curtain walling systems
Framing | |
Frame members | Aluminium curtain wall frame sections, polyester powder-coated. Guidance for specification option: Insert colour requirements. Aluminium curtain wall frame sections, anodized. Aluminium curtain wall frame sections, painted. Guidance for specification option: Insert colour requirements. |
Frame accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements, or omit. |
Fasteners | Manufacturer's standard. |
Cladding units | |
Glass units | Manufacturer guidanceInsert requirements, including thickness 22–50 mm thick. |
Glazing accessories | Manufacturer guidanceInsert requirements or omit. |
Fasteners | Manufacturer's standard. |
Perimeter seals | Manufacturer's standard. |
System accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements, or omit. |
Face width | 60 mm. Guidance for specification option: Minimum. |
Thermal transmittance (U-Value) | Manufacturer guidanceInsert requirements or consult manufacturer for values. Uf value of frame: ≥ 2.2 W/m²K. |
Acoustic performance rating | Manufacturer guidanceInsert requirements, up to Rw 49 dB. |
Burglar resistance | Manufacturer guidanceInsert requirements; to EN 1627, up to RC 2. |
Air permeability | To EN 12207, Class 4. |
Watertightness | To EN 12208, Class E 1200. |
Resistance to wind load | To EN 12210, Class C2/ B4. |
Impact resistance | Class 5. |
Operating forces | Class 1. |
Loading | Class 4. Guidance for specification option: Mechanical load rating. |
Label | Schueco ‘IoF’ ID tag with QR code. Guidance for specification option: Internet of facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records. |
