AF LDC 50 - Aluminium Facade

Name: AF LDC 50 - Aluminium Facade
Brand: Schueco UK Ltd
SKU: 2Ug4axqrqybKsKpHvYuBGV

Verified by manufacturer 22 days ago

Schueco UK Ltd

Aluminium facade (Lean Design Construction).

Jump to:

Request BIM

+44 (0)1908 282111 Website

Application

For functional buildings with lower performance requirements.
Used on projects focused on cost optimisation, where simpler systems without special design adaptations can be implemented.

Description

Schüco Aluminum Facade Lean Design Construction 50 provides a cost-conscious solution specifically designed to simplify fabrication, streamline inventory management, and ease of installation.

Features and benefits:

Suitable for glass/ panel thickness from 28 mm to 58 mm.
50 mm minimum face width.

General information

Color	Other Guidance for specification option: All RAL colours.
Finish	Powder-coated Anodized
Material	Aluminium
Shape	Rectangle Square
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_25_10_20_85 Stick curtain walling systemsPrimary
CAWS	H11/110 Curtain walling

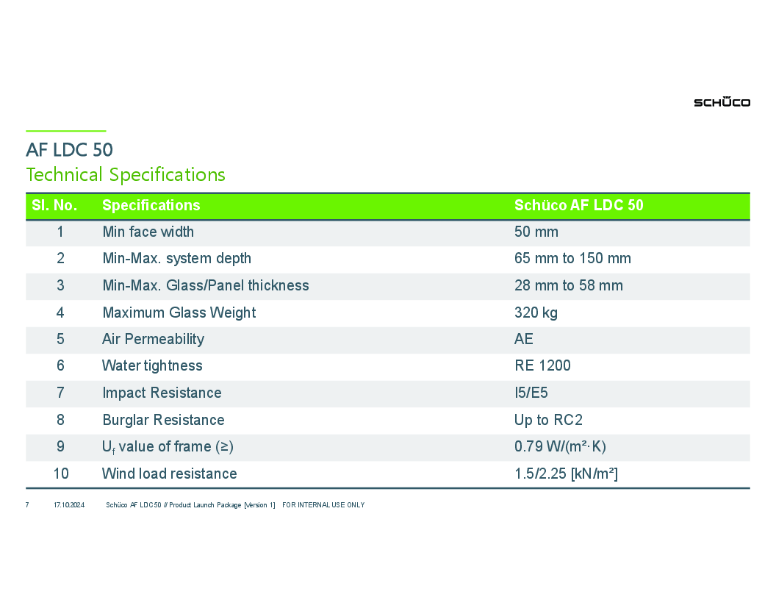

Specification data - Stick curtain walling systems

Classification data
Framing	-
Frame members	Aluminium curtain wall frame sections, powder-coated. Guidance for specification option: All RAL colours available; insert colour requirements. Aluminium curtain wall frame sections, anodized. Manufacturer guidance Minimum face width: 50 mm. U_f-value of frame: ≥0.79 W/m²K.
Cladding units	-
Glass units	- Manufacturer guidance Insert requirements, glass/ panel thickness 28–58 mm.
Depth	65–150 mm.
Air permeability	AE.
Watertightness	RE 1200.
Resistance to wind load	1.5/ 2.25 kN/m².
Impact resistance	I5/ E5.
Security level	Up to RC2.
