Structurally Glazed Highly Thermally Insulated Steel Stick Curtain Walling Façade System - VISS 50 60 SG
Verified by manufacturer 13 days ago
Highly thermally insulated mullion/ transom construction for skylights and vertical facades.
Application
Glazed facades. Suitable for use in combination with all VISS profiles.
Description

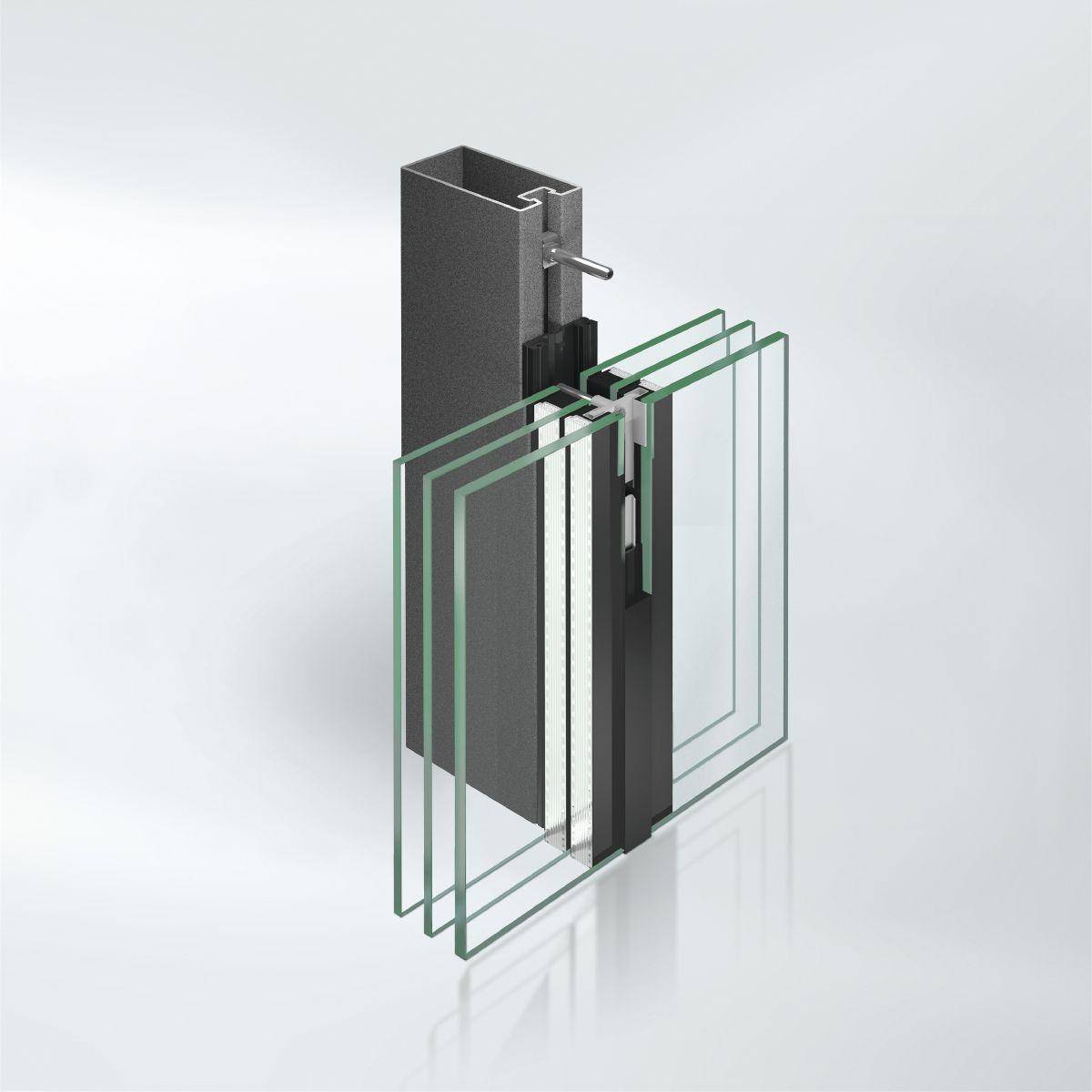

An all-glass facade comprising glazed panels of up to 2.5 x 5.0 m and glass anchors making it possible to install double or triple glazed units up to 70 mm thick.
The system can be readily combined with all VISS profiles with face widths of 50 and 60 mm, as well as with the VISS Basic solution, which can be mounted on any support.
Features and benefits:
- Variety in design due to wide range of aluminium cover caps.
- Special profiles for wall attachments and insert units.
- Elegant intersection of skylight and vertical façade.
- High level of thermal insulation.
- TRAV-tested.
- CE conformable.
- All assemblies to include a Schueco Internet of Facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records creating a project’s digital twin.
General information
Color | Silver Other |
Finish | Anodized Powder-coated Painted |
Material | Steel Glass |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H11/110 Curtain walling |
Specification data - Stick curtain walling systems
Framing | |
Frame members | Steel curtain wall frame sections, polyester powder-coated.Guidance for specification option: Insert colour requirements, Steel curtain wall frame sections, anodized.Steel curtain wall frame sections, painted.Guidance for specification option: Insert colour requirements, |
Frame accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements, or omit. |
Fasteners | Manufacturer's standard. |
Cladding units | |
Glass units | Manufacturer guidanceInsert requirements, including overall thickness, 30–70 mm. |
Glazing accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements, or omit. |
Fasteners | Manufacturer's standard. |
Perimeter seals | Manufacturer's standard. |
System accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements, or omit. |
Face width | 50 mm. 60 mm. Manufacturer guidanceMinimum. |
Thermal transmittance (U-Value) | Manufacturer guidanceInsert requirements or consult manufacturer for values. Uf value of frame: ≥0.84 W/m²K. |
Air permeability | Class AE. |
Watertightness | Class RE 1200. |
Resistance to wind load | 2.0 kN/m². |
Impact resistance | Class 5. |
Standards | EN ISO 10077. |
Label | Schueco ‘IoF’ ID tag with QR code. Guidance for specification option: Internet of facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records. |
Sustainability data
Country of material origin | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 23 % |
