Structural Drain FC25

Verified by manufacturer 4 months ago

Geofabrics Ltd Third party certifications:
  • CE Marking

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

25 mm high density polyethylene (PE-HD) cuspated drainage board with a geotextile filter/separator bonded to a single side.

Jump to:
+44 (0) 113 202 5678 Website

Application

Suitable for use on horizontal and vertical applications including but not limited to:

  • Retaining walls.
  • Waterproofing systems.
  • Linear drainage.
  • French drain alternative.
  • Pavement construction and podium decks.


Description

25 mm high density polyethylene (PE-HD) cuspated drainage board with a geotextile filter/separator bonded to a single side.


Features and benefits:

  • Optimised for maximum strength and performance.
  • UV stabilised.
  • High crush resistance.
  • Excellent flow rate.


General information

Color

Black

Finish

Natural

Material

High density polyethylene (HDPE)

Shape

Rectangle

Length

50000 mm

Width

900 mm

Height

27 mm

Uniclass

Pr_25_57_51_36 High-density polyethylene (PE-HD) studded sheetsPrimary

CAWS

J40/47 High-density polyethylene/ polypropylene studded cavity drain membrane

J40/290 High-density polyethylene/ polypropylene studded cavity drain membrane

Specification data - High-density polyethylene (PE-HD) studded sheets

Standard

To BS EN 13252.

Stud height

2 mm.

Sheet thickness

25 mm.

Colour

Black.

Performance characteristics

-

UV resistance

Textile: To EN ISO 13438, 2688 hours. Cuspate: To be covered within 1 day after installation (EN 12224).

Guidance for specification option:

Textile: Predicted to be durable for service lives up to 100 years in natural soils with 4 ≤ pH ≤ 9 and soil temperatures ≤ 25° C on the basis of the results of the test method EN ISO 13438 procedure A and test duration of 112 days.

Cuspate: Predicted to be durable for service lives up to 5 years in natural soils with 4 ≤ pH ≤ 9 and soil temperatures ≤ 25° C. Under EN 12224 no recycled HDPE product can be certified beyond 5 years.

CompressiveStrength

To EN ISO 25619-2, 300 kPa.

Water permeability

To EN ISO 11058, 100 L/(m²·s).

CBR puncture resistance

To EN ISO 12236, 1.4 kN.

Guidance for specification option:

Static puncture (CBR).

Purpose

Gas venting, drainage.

Tensile strength (minimum)

To EN ISO 10319, 9 kN/m.

Form

Cuspated drainage board.

Width (minimum)

0.9 m.

Roll length (minimum)

50 m.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Guidance for specification option:

HDPE.

Third party certifications

CE Marking

CE Marking

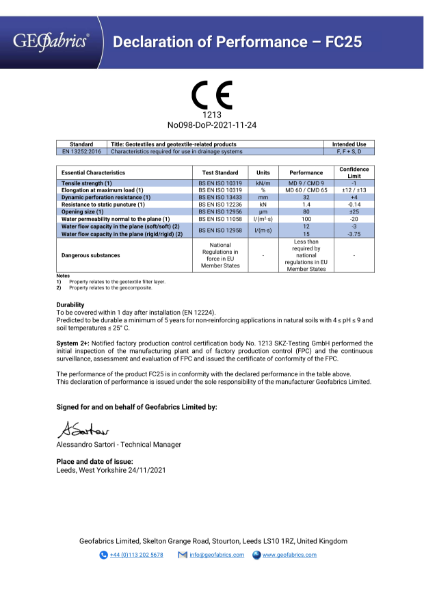

Declaration of Performance – FC25 - CE

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

Declaration of Performance – FC25 - UKCA

ISO 9001 Quality Management

ISO 9001 Quality Management

GEOFABRICS LIMITED ISO 9001:2015
