FCF25 Type 5 fin drain - Cuspated drainage board
Verified by manufacturer 3 months ago
ISO 9001 Quality Management
Certificate type
CE Marking
Certificate type
UK Conformity Assessed (UKCA)
Certificate type
25 mm PE-HD cuspated drainage board fully wrapped with a geotextile filter/separator.
Application
Suitable for use as a TYPE 5 fin drain in highway drainage.
Description
25 mm high density polyethylene PE-HD cuspated drainage board fully wrapped with a geotextile filter/separator. The FCF25 geocomposite has been designed to provide a passive venting system for gasses and liquids.
Features and benefits:
- Optimised for maximum strength and performance.
- UV stabilised.
- High crush resistance.
- Excellent flow rate.
General information
Color | Black |
Finish | Laminated |
Material | High density polyethylene (HDPE) Polypropylene |
Shape | Rectangle |
Length | 50000 mm |
Width | 150 mm 300 mm |
Height | 27 mm |
Uniclass | |
CAWS | J40/47 High-density polyethylene/ polypropylene studded cavity drain membrane J40/290 High-density polyethylene/ polypropylene studded cavity drain membrane |
Specification data - High-density polyethylene (PE-HD) studded sheets
Standard | To BS EN 13252. |
Stud height | 2 mm. |
Sheet thickness | 25 mm. |
Colour | Black. |
Performance characteristics | |
UV resistance | Textile: To EN ISO 13438, 2688 hours. Cuspate: To be covered within 1 day after installation (EN 12224).Guidance for specification option: Textile: Predicted to be durable for service lives up to 100 years in natural soils with 4 ≤ pH ≤ 9 and soil temperatures ≤ 25° C on the basis of the results of the test method EN ISO 13438 procedure A and test duration of 112 days. Cuspate: Predicted to be durable for service lives up to 5 years in natural soils with 4 ≤ pH ≤ 9 and soil temperatures ≤ 25° C. Under EN 12224 no recycled HDPE product can be certified beyond 5 years. |
Recycled content | 100%. |
CompressiveStrength | To EN ISO 25619-2, 300 kPa. |
Water permeability | To EN ISO 11058, 100 L/(m²·s). |
CBR puncture resistance | To EN ISO 12236, 1.4 kN. Guidance for specification option: Geotextile filter value. |
Purpose | Gas venting, drainage. |
Tensile strength (minimum) | To EN ISO 10319, 9 kN/m. Guidance for specification option: MD/CMD. |
Form | Cuspated drainage board. |
Width (minimum) | 0.15 m. |
Roll length (minimum) | 50 m. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: HDPE. |
Third party certifications
ISO 9001 Quality Management
GEOFABRICS LIMITED ISO 9001:2015
CE Marking

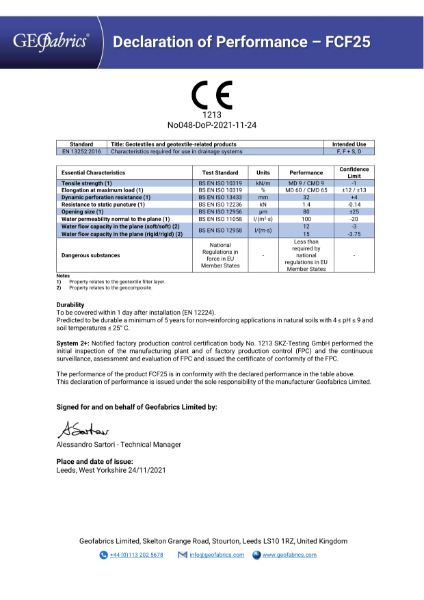

Declaration of Performance – FCF25 - CE
UK Conformity Assessed (UKCA)
Declaration of Performance – FCF25 - UKCA
Literature

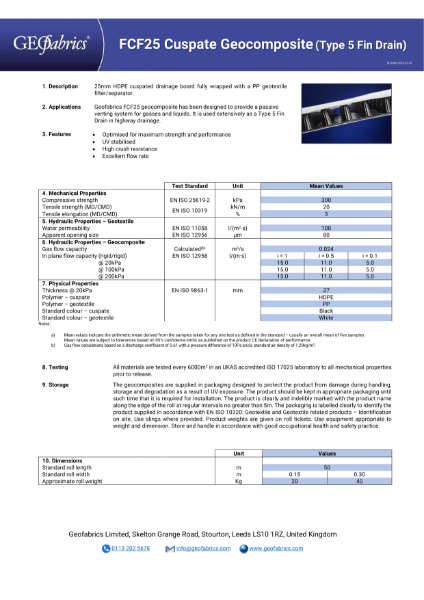

FCF25 Cuspate Geocomposite (Type 5 Fin Drain) Product Data

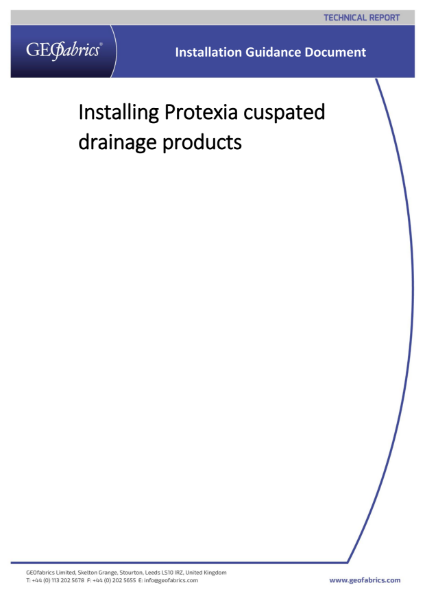

Cuspate Installation Guidance Document
