Stick curtain walling façade system - FWS60
Verified by manufacturer 6 months ago

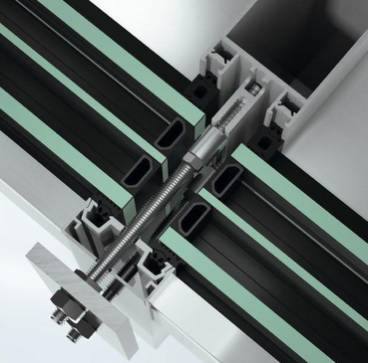

Mullion & transom stick curtain walling with graduated profiles to meet a variety of structural requirements.
Application
Residential, commercial buildings, education, student accommodation and hospitality.
Description
Mullion & transom stick curtain walling with graduated profiles to meet varying structural requirements.
Features and benefits:
- Profile-integrated spandrel safety barriers for floor-to-ceiling opening units and low spandrels reduce facade appearance.
- Wide selection of pressure plate profiles and facade cover caps, including stainless steel.
- Provides a high level of design freedom.
- All-glass or semi-structural glazing facades with horizontal or vertical profile accentuation for the Schüco Façade FW 50+ SG and Schüco Façade FW 60+ SG systems.
- Available in graduated dimensions to meet varied structural requirements.
- All assemblies to include a Schüco Internet of Facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records creating a project’s digital twin.
Standards:
- EN 13830.
- EN 1627.
- CWCT.
General information
Finish | Powder-coated Anodized |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H11/110 Curtain walling |
Specification data - Stick curtain walling systems
Framing | |
Frame members | Aluminium curtain wall frame sections. |
System accessories | Not required.Profile Integrated spandrel safety barriers.Accessories for frame anchor.Sun shading attachment.Lightning protection. |
Execution | Curtain wall assembly and erection. |
Load | Up to 1080 kg. Guidance for specification option: Glass load. |
Glass thickness | 86 mm. |
Air permeability | AE. |
Watertightness | RE 1200. |
Resistance to wind load | 2.0—3.0 kN/m². Guidance for specification option: Design load —safety load. |
Impact resistance | I5/E5. |
Security level | To EN 1627, RC2 and RC3. |
Depth | 50—250 mm. |
Acoustic performance rating | Up to Rw 46 dB. |
Finish as delivered | Polyester powder coated. Anodized. |
Width | 60 mm. Guidance for specification option: Nominal. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Recyclability | cradle to cradle |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
