Slimline Panorama design stick curtain walling façade system - FWS 35 PD
Verified by manufacturer 1 month ago

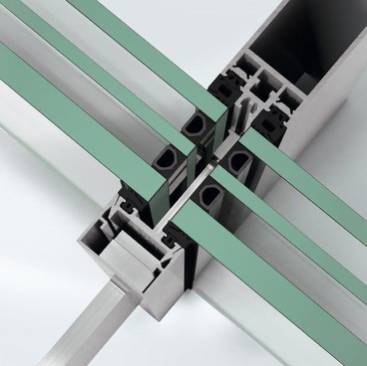

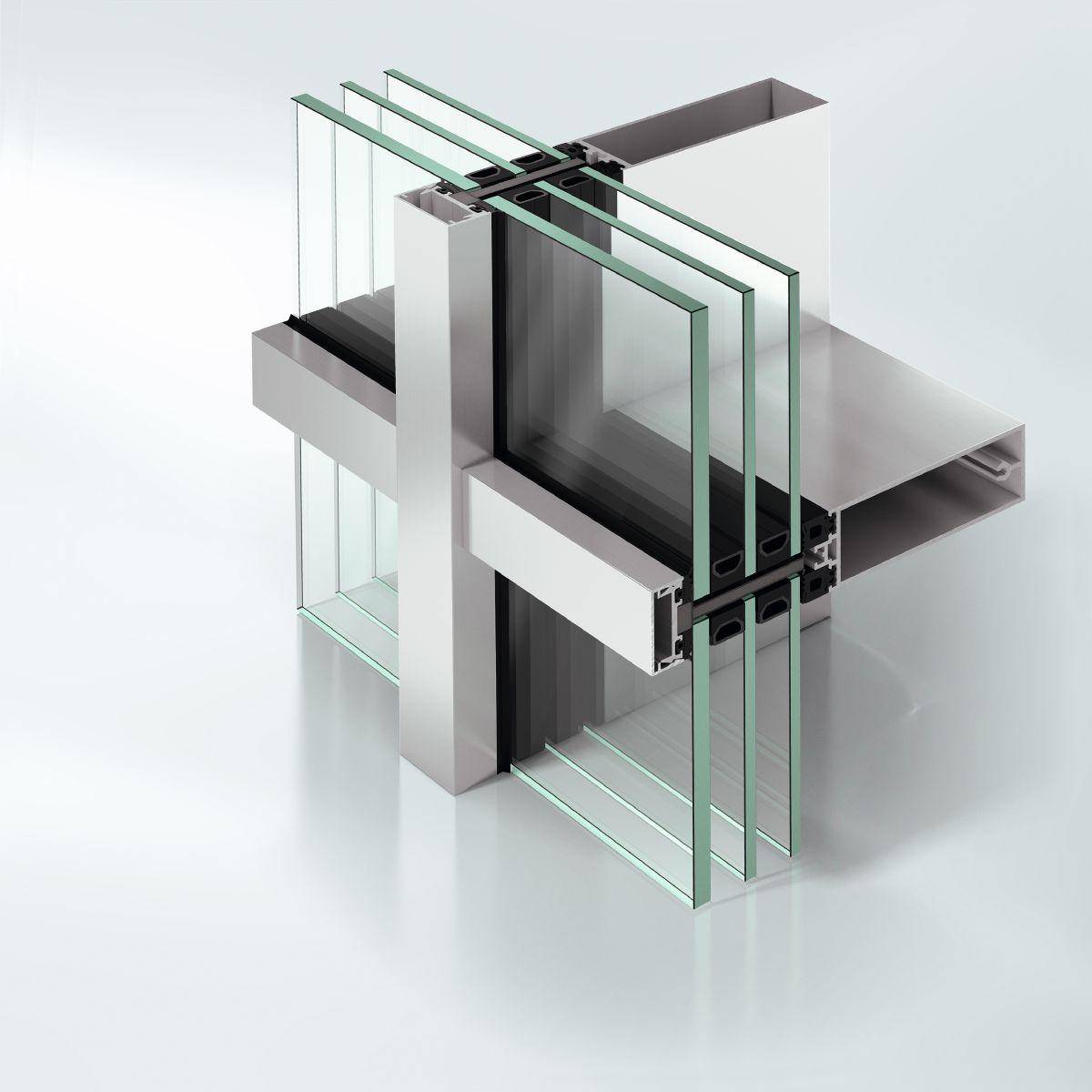

Mullion and transom stick curtain walling with profiles in graduated dimensions to meet varying structural requirements.
Application
Residential, commercial buildings, education, student accommodation and hospitality.
Description
Mullion and transom stick curtain walling with profiles in graduated dimensions to meet varying structural requirements. Panorama design facades with elegant all-glass corners for corner areas with maximum transparency.
Features and benefits:
- All-glass corner without distracting profiles for maximum transparency in the corner area.
- Reduction in building cooling loads and energy consumption.
- Seamless visual integration of opening units with a high level of planning reliability.
- Visually unobtrusive system components with minimal thermal bridging.
- Suitable for safety barrier loading.
- All assemblies to include a Schueco Internet of Facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records creating a project’s digital twin.
Standards:
- EN 13830.
- EN 1627.
- CWCT.
General information
Color | Silver Other |
Finish | Powder-coated Anodized |
Material | Aluminium Glass |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H11/110 Curtain walling |
Specification data - Stick curtain walling systems
Framing | |
Frame members | Aluminium curtain wall frame sections, polyester powder-coated.Guidance for specification option: Insert colour requirements. Aluminium curtain wall frame sections, anodized.Aluminium curtain wall frame sections, painted.Guidance for specification option: Insert colour requirements. |
Frame accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements, or omit. |
Fasteners | Manufacturer's standard. |
Cladding units | |
Glass units | Manufacturer guidanceInsert requirements, 4–50 mm thick. |
Glazing accessories | Manufacturer guidanceInsert requirements or omit. |
Fasteners | Manufacturer's standard. |
Perimeter seals | Manufacturer's standard. |
System accessories | None.Accessories for frame anchor.Sun shading attachment.Facade brackets.Lightning protection. |
Face width | 35 mm. |
Thermal transmittance (U-Value) | Manufacturer guidanceInsert requirements or consult manufacturer for values. Uf value of frame: ≥ 1.4 W/m²·K. |
Acoustic performance rating | Manufacturer guidanceInsert requirements, up to Rw 49 dB. |
Burglar resistance | Manufacturer guidanceInsert requirements; to DIN EN 1627, up to RC 3. |
Air permeability | Class AE. |
Watertightness | Class RE 1200. |
Resistance to wind load | 2.0/ 3.0 kN/m². Guidance for specification option: Design load/ safety load. Consult manufacturer’s literature for further details. |
Impact resistance | I5/ E5. |
Standards | To DIN EN 1627; EN ISO 10077; DIN EN 13830; General building authority approval. |
Passive House Certified | Yes. Guidance for specification option: Passive house compliant; class: phA. |
Label | Schueco ‘IoF’ ID tag with QR code. Guidance for specification option: Internet of facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records. |
Sustainability data
Country of material origin | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Schüco FWS 35 PD
