Stick curtain walling façade system - FWS50
Verified by manufacturer 4 months ago

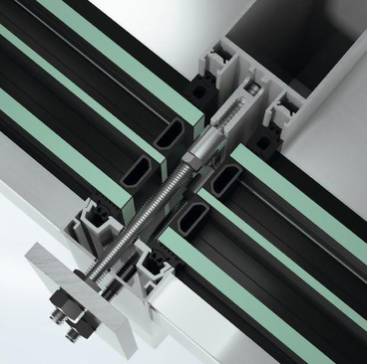

Mullion and transom stick curtain walling with profiles in graduated dimensions.
Application
Residential, commercial, education, student accommodation and hospitality.
Description
Mullion and transom stick curtain walling with profiles in graduated dimensions to meet varying structural requirements.
Features and benefits:
- New, profile-integrated spandrel safety barriers for floor-to-ceiling opening units and low spandrels ensure a reduced and harmonious facade appearance.
- Wide selection of pressure plate profiles and facade cover caps, including stainless steel, for the most varied of design requirements.
- Flush-fitted structural glazing design provides a high level of design freedom throughout the system range.
- All-glass facade or the semi-structural glazing facade with horizontal or vertical profile accentuation for the Schüco Façade FW 50+ SG and Schüco Façade FW 60+ SG systems.
- Mullion and transom profiles are available in graduated dimensions to meet varying structural requirements.
- All assemblies to include a Schueco Internet of Facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records creating a project’s digital twin.
Standards:
- EN 13830.
- EN 1627.
- CWCT.
General information
Finish | Powder-coated Anodized |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H11/110 Curtain walling |
Specification data - Stick curtain walling systems
Framing | |
Frame members | Aluminium curtain wall frame sections. |
System accessories | Not required.Profile integrated spandrel safety barriers.Accessories for frame anchor.Sun shading attachment.Facade brackets.Lightning protection. |
Execution | Curtain wall assembly and erection. |
Load | 1080 kg. Guidance for specification option: Glass load. |
Depth | 50—250 mm. |
Length | 4.0 m. 6.5 m. 7.2 m. Manufacturer guidanceStock length of profiles. |
Air permeability | AE. |
Watertightness | RE 1200. |
Resistance to wind load | 2.0—3.0 kN/m². Guidance for specification option: Design load—safety load. |
Impact resistance | I5/E5. |
Security level | To EN 1627 RC2, RC3 and PAS24. |
Bullet resistance | FB4 NS. |
Acoustic performance rating | Up to Rw 48 dB. |
Finish as delivered | Polyester powder coated. Anodized. |
Width | 50 mm. Guidance for specification option: Nominal. |
Label | Schueco ‘IoF’ ID tag with QR code. Guidance for specification option: Internet of facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | cradle2cradle |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Case studies
Frederick Douglass Centre, Newcastle University
Joseph Priestley Building, University of Huddersfield

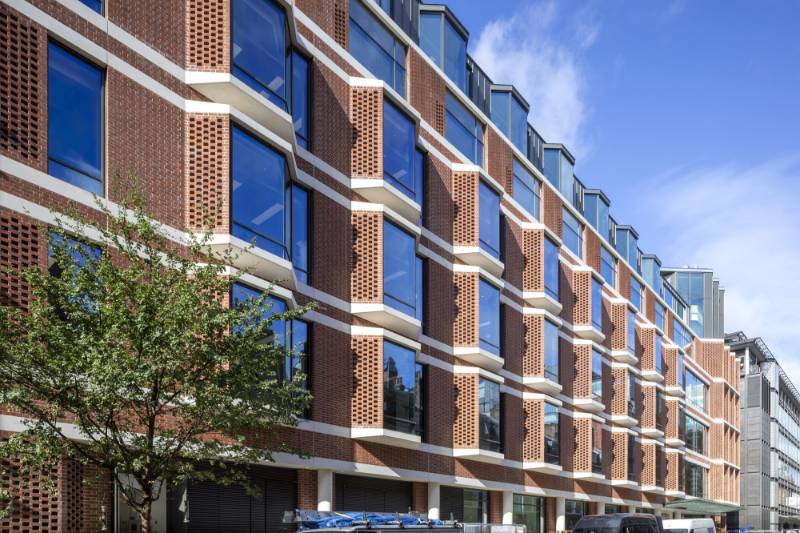

Pembury Circus
University College London Hospital’s (UCLH)

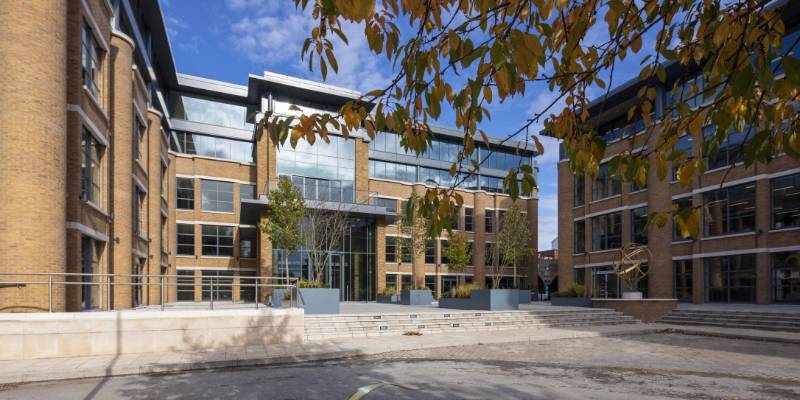

Office complex in the heart of Windsor
