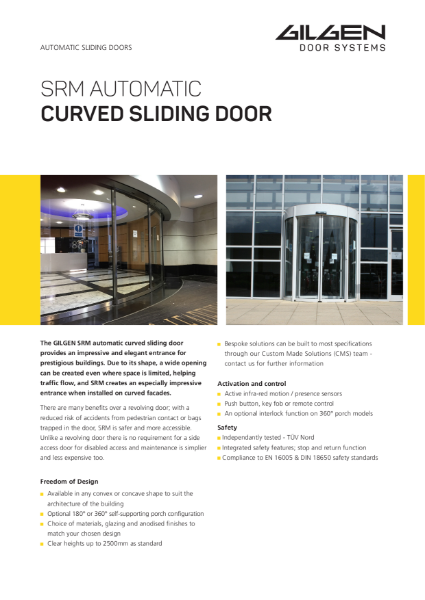

SRM Automatic Curved Sliding Door

SRM 180° and 360° automatic curved sliding doors are available in both convex and concave shapes – six standard radii are available. These solutions are suitable for use as an emergency escape route.

All equipment is designed to meet the rigorous safety requirements of the Building Regulations (E&W) Approved Document M England and Wales), The Equality Act 2010, BS 8300: 2009 and BS EN 16005: 2012, and is installed by Automatic Door Suppliers Association (ADSA) accredited engineers.  Independently tested - TÜV Nord.

To protect pedestrians when entering the door threshold area, two infrared light detectors protect the walkthrough area. If the light beam is cut by pedestrians entering the door threshold area ,the doors are prevented from closing, or the closing motion is reversed.

24 V DC motor with microprocessor controller which allows options for :opening width; electric locking; summer/ winter modes; exit only; manual control; speed of opening; and the length of time the door is open. 230 V single phase. A 13 A live neon-lit fused spur supply, protected by a 30 mA RCD must be provided prior to installation. In order to comply with BS EN 16005, the mains connection must be capable of disconnection to prevent unintentional and unauthorised reactivation. Fail-safe system (battery back-up) enables up to 30-minutes operation (subject to use) in the event of a mains failure. The fail safe system is automatically tested at least once every 24 hours.

Fire alarm interface connection enables door leaves to fail safe to open in the event of an emergency. In accordance with BS EN 16005, door sets with a clear opening width of up to 2000 mm, open by at least 80% within 3 seconds after activation, by the activators in the escape direction (or within 5 seconds in the event of the loss of power).

·      Automatic locking within drive mechanism.

·      Automatic stay bar locking CLS.

·      Manual unlocking inside.

·      Manual unlocking outside.
