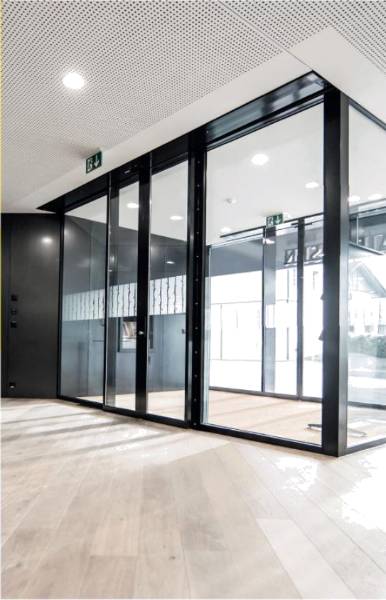

SLX/D Hermetically Sealed Automatic Sliding Door

In hospital clean-rooms, clinics or food production facilities, chemical and pharmaceutical industries, tightly sealed doors are indispensable. The tested automatic Gilgen SLX-D sliding door with patented pivoting mechanism prevents unwanted exchange of air as well as the penetration of foreign particles and impurities. With SLX-D the required pressure hierarchy is always consistently maintained.

Automatic door leaf locking:

Automatic opening and closing ensures hygienic and barrier-free access whilst ensuring the correct operating procedure.

Automatic door leaf locking:

• High degree of tightness.
• Controlled hygiene.
• High degree of sound insulation.
• Fully tested system - TÜV-tested DIN 18650-1/2 - Air permeability conforming to EN 12207, class 2.

Functional and user-friendly:

The complete range of selectable functions and available control and safety elements enables you to find the optimal solution for your situation.

User safety:

The Combi-Scan and (depending to situation) the Side-Scan presence detectors integrated in the drive unit offer protection to door users staying in the range of movement of the door leaves.

Opening elements:

Large optical pushbuttons and/ or movement sensors integrated into the drive mechanism ensure smooth, hands-free access.

Controlled access:

Pushbuttons, elbow-activated switches or other access systems can be selected for a controlled opening.

Door-opening in event of a power failure:

The operating lever allows you to open the door manually in the event of a power failure, even if there are differences in pressure.

During the closing movement, the pivoting mechanism integrated into the drive unit causes the wing to be simultaneously lowered and pressed against the door frame. The lowering movement and allround gaskets provide the door with a hermetic seal.

The drive mechanism, door leaf surface and seals have been designed to withstand all commonly used cleaning products and the rounded shape of the aluminium drive cover ensures any residue cleaning product will run off.
