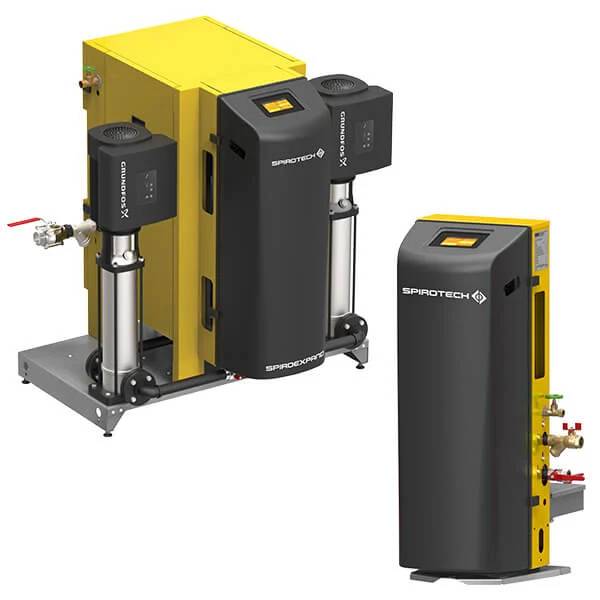

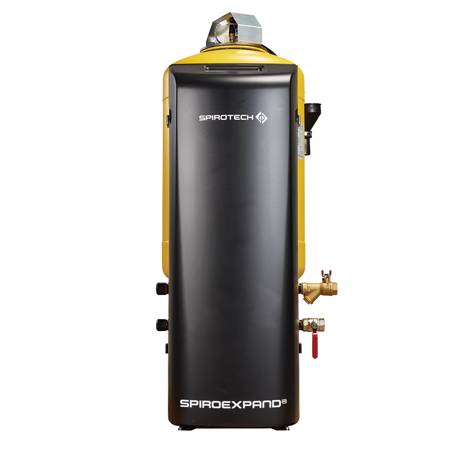

SpiroExpand MultiControl Kompakt - Automatic Expansion/Pressure-Maintaining

Name: SpiroExpand MultiControl Kompakt - Automatic Expansion/Pressure-Maintaining
Brand: Spirotech UK
SKU: rH18XxvUiJUmRqrSD2MgZk

Verified by manufacturer 26 days ago

MultiControl Kompact SOLO

Spirotech UK

Product certifications:

Certificate of Conformity
Certificate type
Certificate of Conformity
Certificate type
Certificate of Conformity
Certificate type
Certificate of Conformity
Certificate type
Certificate of Conformity
Certificate type

Range of automatic expansion and pressure-maintaining devices, with pump(s), overflow valve(s) and an integrated unpressurized expansion tank.

Jump to:

Request BIM

+44 (0)208 451 3344 Website

Application

Suitable for residential and commercial heating and cooling systems.

Description

Range of automatic expansion and pressure-maintaining devices, with pump(s), overflow valve(s) and an integrated unpressurized expansion tank.

Features and benefits:

Contains one or two pumps, depending on model.
One or two overflow valves, depending on model.
Operational pressure range up to 8.1 bar
Comes with vessel volumes up to 500 litres.
Two further vessels can be added.
Maximum expansion volume of 1500 litres.
Maximum temperature at the point of connection: 70°C (over 70°C possible with auxiliary tank).
Maximum safety temperature in the system: 110°C.
Maximum operating pressure (PN): 10 bar.

General information

Color	Yellow Black
Finish	Powder-coated
Shape	Other
Length	725 mm 728 mm 800 mm 850 mm 932 mm 936 mm 1022 mm 1026 mm 1027 mm 1033 mm Show more
Width	575 mm 850 mm
Height	1351 mm 1375 mm 1405 mm 1515 mm 1577 mm 2130 mm 2157 mm Show more
Warranty description	Two year

Uniclass	Pr_65_53_86_68 Pressurization unitsPrimary
CAWS	T90/110 Heating system T90/110 Heating system

SKU Code	EMCK-S125-4.0, EMCK-S125-5.6, EMCK-S125-8.1, EMCK-S200-4.0, EMCK-S200-5.6, EMCK-S200-8.1, EMCK-S300-4.0, EMCK-S300-5.6, EMCK-S300-8.1, EMCK-S45-4.0, EMCK-S45-5.6, EMCK-S45-8.1, EMCK-S500-4.0, EMCK-S500-5.6, EMCK-S500-8.1, EMCK-S75-4.0, EMCK-S75-5.6, EMCK-S75-8.1, EMCK-D125-4.0, EMCK-D125-5.6, EMCK-D125-6.6, EMCK-D125-8.1, EMCK-D200-4.0, EMCK-D200-5.6, EMCK-D200-6.6, EMCK-D200-8.1, EMCK-D300-4.0, EMCK-D300-5.6, EMCK-D300-6.6, EMCK-D300-8.1, EMCK-D45-4.0, EMCK-D45-5.6, EMCK-D45-6.6, EMCK-D45-8.1, EMCK-D500-4.0, EMCK-D500-5.6, EMCK-D500-6.6, EMCK-D500-8.1, EMCK-D75-4.0, EMCK-D75-5.6, EMCK-D75-6.6, EMCK-D75-8.1, EMCK-D125-4.0-twin, EMCK-D125-5.6-twin, EMCK-D125-6.6-twin, EMCK-D125-8.1-twin, EMCK-D200-4.0-twin, EMCK-D200-5.6-twin, EMCK-D200-6.6-twin, EMCK-D200-8.1-twin, EMCK-D300-4.0-twin, EMCK-D300-5.6-twin, EMCK-D300-6.6-twin, EMCK-D300-8.1-twin, EMCK-D45-4.0-twin, EMCK-D45-5.6-twin, EMCK-D45-6.6-twin, EMCK-D45-8.1-twin, EMCK-D500-4.0-twin, EMCK-D500-5.6-twin, EMCK-D500-6.6-twin, EMCK-D500-8.1-twin, EMCK-D75-4.0-twin, EMCK-D75-5.6-twin, EMCK-D75-6.6-twin, EMCK-D75-8.1-twin, EMCK-M125-4.0, EMCK-M125-5.6, EMCK-M125-8.1, EMCK-M200-4.0, EMCK-M200-5.6, EMCK-M200-8.1, EMCK-M300-4.0, EMCK-M300-5.6, EMCK-M300-8.1, EMCK-M45-4.0, EMCK-M45-5.6, EMCK-M45-8.1, EMCK-M500-4.0, EMCK-M500-5.6, EMCK-M500-8.1, EMCK-M75-4.0, EMCK-M75-5.6, EMCK-M75-8.1, EMCK-M125-4.0-twin, EMCK-M125-5.6-twin, EMCK-M125-8.1-twin, EMCK-M200-4.0-twin, EMCK-M200-5.6-twin, EMCK-M200-8.1-twin, EMCK-M300-4.0-twin, EMCK-M300-5.6-twin, EMCK-M300-8.1-twin, EMCK-M45-4.0-twin, EMCK-M45-5.6-twin, EMCK-M45-8.1-twin, EMCK-M500-4.0-twin, EMCK-M500-5.6-twin, EMCK-M500-8.1-twin, EMCK-M75-4.0-twin, EMCK-M75-5.6-twin, EMCK-M75-8.1-twin

Specification data - Pressurization units

Classification data
Format	Fully automatic pre-wired packaged unit on common base plate.
Duties	-
Operating pressure	Maximum 4.0 bar. Maximum 5.6 bar. Maximum 8.1 bar.
Motor	-
Nominal voltage	Single phase 230 V a.c.
Accessories	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Volume	45 L. 75 L. 125 L. 200 L. 300 L. 500 L.
Power consumption	0.6 kW.
