Summary

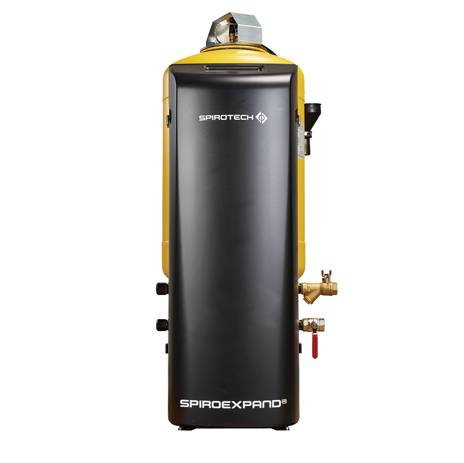

Range of automatic expansion and pressure-maintaining devices, with pump(s), overflow valve(s) and an integrated unpressurized expansion tank.
-
-
Application
Suitable for residential and commercial heating and cooling systems.
-
-
Description
Range of automatic expansion and pressure-maintaining devices, with pump(s), overflow valve(s) and an integrated unpressurized expansion tank.
Features and benefits:
- Contains one or two pumps, depending on model.
- One or two overflow valves, depending on model.
- Operational pressure range up to 8.1 bar
- Comes with vessel volumes up to 500 litres.
- Two further vessels can be added.
- Maximum expansion volume of 1500 litres.
- Maximum temperature at the point of connection: 70°C (over 70°C possible with auxiliary tank).
- Maximum safety temperature in the system: 110°C.
- Maximum operating pressure (PN): 10 bar.
-
-
Product certifications
- Certificate of Conformity CERTIFICATE OF CONFORMITY
- Certificate of Conformity CERTIFICATE OF CONFORMITY SUPERIORS
- Certificate of Conformity CERTIFICATE OF CONFORMITY SUPERIORS 2024
- Certificate of Conformity CERTIFICATE OF CONFORMITY PED
- Certificate of Conformity CERTIFICATE OF CONFORMITY UK DIRECTIVES
-
-
Color
Yellow, Black
-
-
Finish
Powder-coated
-
-
Shape
Other
-
-
Length
725 mm, 728 mm, 800 mm, 850 mm, 932 mm, 936 mm, 1022 mm, 1026 mm, 1027 mm, 1033 mm
-
-
Width
575 mm, 850 mm
-
-
Height
1351 mm, 1375 mm, 1405 mm, 1515 mm, 1577 mm, 2130 mm, 2157 mm
-
-
Warranty description
Two year
-
-
SKU Code
EMCK-S125-4.0, EMCK-S125-5.6, EMCK-S125-8.1, EMCK-S200-4.0, EMCK-S200-5.6, EMCK-S200-8.1, EMCK-S300-4.0, EMCK-S300-5.6, EMCK-S300-8.1, EMCK-S45-4.0, EMCK-S45-5.6, EMCK-S45-8.1, EMCK-S500-4.0, EMCK-S500-5.6, EMCK-S500-8.1, EMCK-S75-4.0, EMCK-S75-5.6, EMCK-S75-8.1, EMCK-D125-4.0, EMCK-D125-5.6, EMCK-D125-6.6, EMCK-D125-8.1, EMCK-D200-4.0, EMCK-D200-5.6, EMCK-D200-6.6, EMCK-D200-8.1, EMCK-D300-4.0, EMCK-D300-5.6, EMCK-D300-6.6, EMCK-D300-8.1, EMCK-D45-4.0, EMCK-D45-5.6, EMCK-D45-6.6, EMCK-D45-8.1, EMCK-D500-4.0, EMCK-D500-5.6, EMCK-D500-6.6, EMCK-D500-8.1, EMCK-D75-4.0, EMCK-D75-5.6, EMCK-D75-6.6, EMCK-D75-8.1, EMCK-D125-4.0-twin, EMCK-D125-5.6-twin, EMCK-D125-6.6-twin, EMCK-D125-8.1-twin, EMCK-D200-4.0-twin, EMCK-D200-5.6-twin, EMCK-D200-6.6-twin, EMCK-D200-8.1-twin, EMCK-D300-4.0-twin, EMCK-D300-5.6-twin, EMCK-D300-6.6-twin, EMCK-D300-8.1-twin, EMCK-D45-4.0-twin, EMCK-D45-5.6-twin, EMCK-D45-6.6-twin, EMCK-D45-8.1-twin, EMCK-D500-4.0-twin, EMCK-D500-5.6-twin, EMCK-D500-6.6-twin, EMCK-D500-8.1-twin, EMCK-D75-4.0-twin, EMCK-D75-5.6-twin, EMCK-D75-6.6-twin, EMCK-D75-8.1-twin, EMCK-M125-4.0, EMCK-M125-5.6, EMCK-M125-8.1, EMCK-M200-4.0, EMCK-M200-5.6, EMCK-M200-8.1, EMCK-M300-4.0, EMCK-M300-5.6, EMCK-M300-8.1, EMCK-M45-4.0, EMCK-M45-5.6, EMCK-M45-8.1, EMCK-M500-4.0, EMCK-M500-5.6, EMCK-M500-8.1, EMCK-M75-4.0, EMCK-M75-5.6, EMCK-M75-8.1, EMCK-M125-4.0-twin, EMCK-M125-5.6-twin, EMCK-M125-8.1-twin, EMCK-M200-4.0-twin, EMCK-M200-5.6-twin, EMCK-M200-8.1-twin, EMCK-M300-4.0-twin, EMCK-M300-5.6-twin, EMCK-M300-8.1-twin, EMCK-M45-4.0-twin, EMCK-M45-5.6-twin, EMCK-M45-8.1-twin, EMCK-M500-4.0-twin, EMCK-M500-5.6-twin, EMCK-M500-8.1-twin, EMCK-M75-4.0-twin, EMCK-M75-5.6-twin, EMCK-M75-8.1-twin
-
-
Specification
Classification data
Format
Fully automatic pre-wired packaged unit on common base plate.
-
-
Duties
-
-
-
Operating pressure
Maximum 4.0 bar., Maximum 5.6 bar., Maximum 8.1 bar.
-
-
Motor
-
-
-
Nominal voltage
Single phase 230 V a.c.
-
-
Accessories
-
-
-
Additional properties
Volume
45 L., 75 L., 125 L., 200 L., 300 L., 500 L.
-
-
Power consumption
0.6 kW.
-
-
