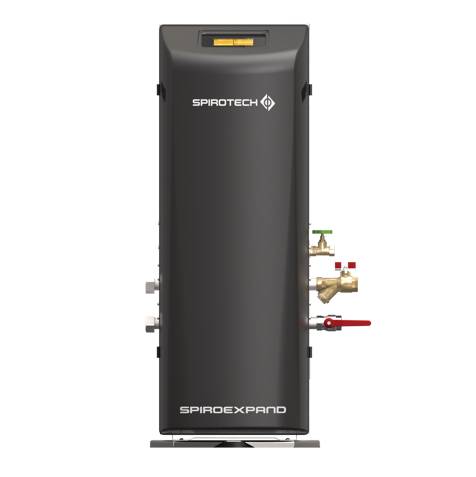

SpiroExpand MultiControl COOL - Automatic Expansion/Pressure Maintaining

Verified by manufacturer 5 days ago

SOLO 4.0 bar (EMCC-S1-4.0)

Spirotech UK Variant:
Product certifications:
  • Certificate of Conformity

    Certificate type

  • Certificate of Conformity

    Certificate type

  • Certificate of Conformity

    Certificate type

  • Certificate of Conformity

    Certificate type

  • Certificate of Conformity

    Certificate type

Automatic expansion and pressure-maintaining devices designed for cooling systems.

Jump to:
+44 (0)208 451 3344 Website

Application

Suitable for residential and commercial cooling systems.

Description

Automatic expansion and pressure-maintaining devices designed for cooling systems. Part of the SpiroExpand MultiControl range (other products available separately).

Features and benefits:

  • One pump (SOLO: 1 x 100%) or two pumps (DUO: 2 x 50%; MAXI: 2 x 100%).
  • One overflow valve.
  • A separate storage tank is required.
  • Operational pressure range up to 4.0 or 5.6 bar.
  • An unpressurized expansion vessel is required.
  • Maximum expansion volume: 125–500 L.
  • Minimum temperature at the point of connection: -10°C.
  • Maximum temperature at the point of connection: 70°C (>70°C possible with auxiliary tank).

General information

Color

Black

Material

Steel

Guidance for specification option:

Housing.

Copper

Brass

Shape

Rectangle

Length

820 mm

Guidance for specification option:

Overall depth.

Width

612 mm

Guidance for specification option:

Overall.

Height

1149 mm

Uniclass

Pr_65_53_86_68 Pressurization unitsPrimary

SKU Code

EMCC-S1-4.0, EMCC-S1-5.6, EMCC-D1-4.0, EMCC-D1-5.6, EMCC-M1-4.0, EMCC-M1-5.6

Specification data - Pressurization units

Classification data

Format

Automatic pre-wired packaged unit.

Guidance for specification option:

Operating principle: pump.

Arrangement

Vertical expansion and pressure-maintaining device.

Manufacturer guidance

Note that a separate storage tank is required.

Duties

-

Operating temperatures

-

Flow

Minimum temperature at point of connection: -10°C.
Maximum temperature at point of connection: 70°C.

Guidance for specification option:

Over 70°C possible with auxiliary tank, consult manufacturer for details.

Operating pressure

Maximum 4.0 bar.

Manufacturer guidance

Pressure rating: PN10.

Motor

-

Nominal voltage

Single phase 230 V a.c.

Components

Digital control unit.
Nominal diameter expansion connection: 25 mm (1").
Pump (1 x 100%).
Overflow valve (1 x 100%).

Accessories

Guidance for specification option:

Consult manufacturer for details and insert requirement, or omit.

Manufacturer guidance

Note that a separate storage tank is required.

Power consumption

0.8 kW.

Sustainability data

Material

Steel

Guidance for specification option:

Housing.

Copper
Brass

Product certifications

Certificate of Conformity

Certificate of Conformity

CERTIFICATE OF CONFORMITY

Certificate of Conformity

Certificate of Conformity

CERTIFICATE OF CONFORMITY PED

Certificate of Conformity

Certificate of Conformity

CERTIFICATE OF CONFORMITY SUPERIORS

Certificate of Conformity

Certificate of Conformity

CERTIFICATE OF CONFORMITY SUPERIORS 2024

Certificate of Conformity

Certificate of Conformity

CERTIFICATE OF CONFORMITY UK DIRECTIVES

Literature

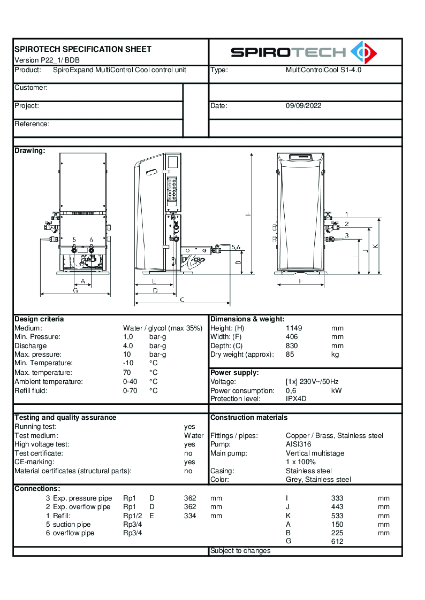

EMCC-S1-4.0 PDF DATASHEET

EMCC-S1-4.0 PDF DATASHEET
