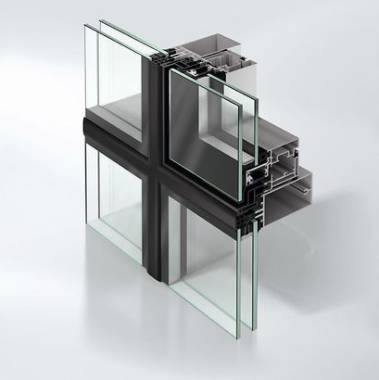

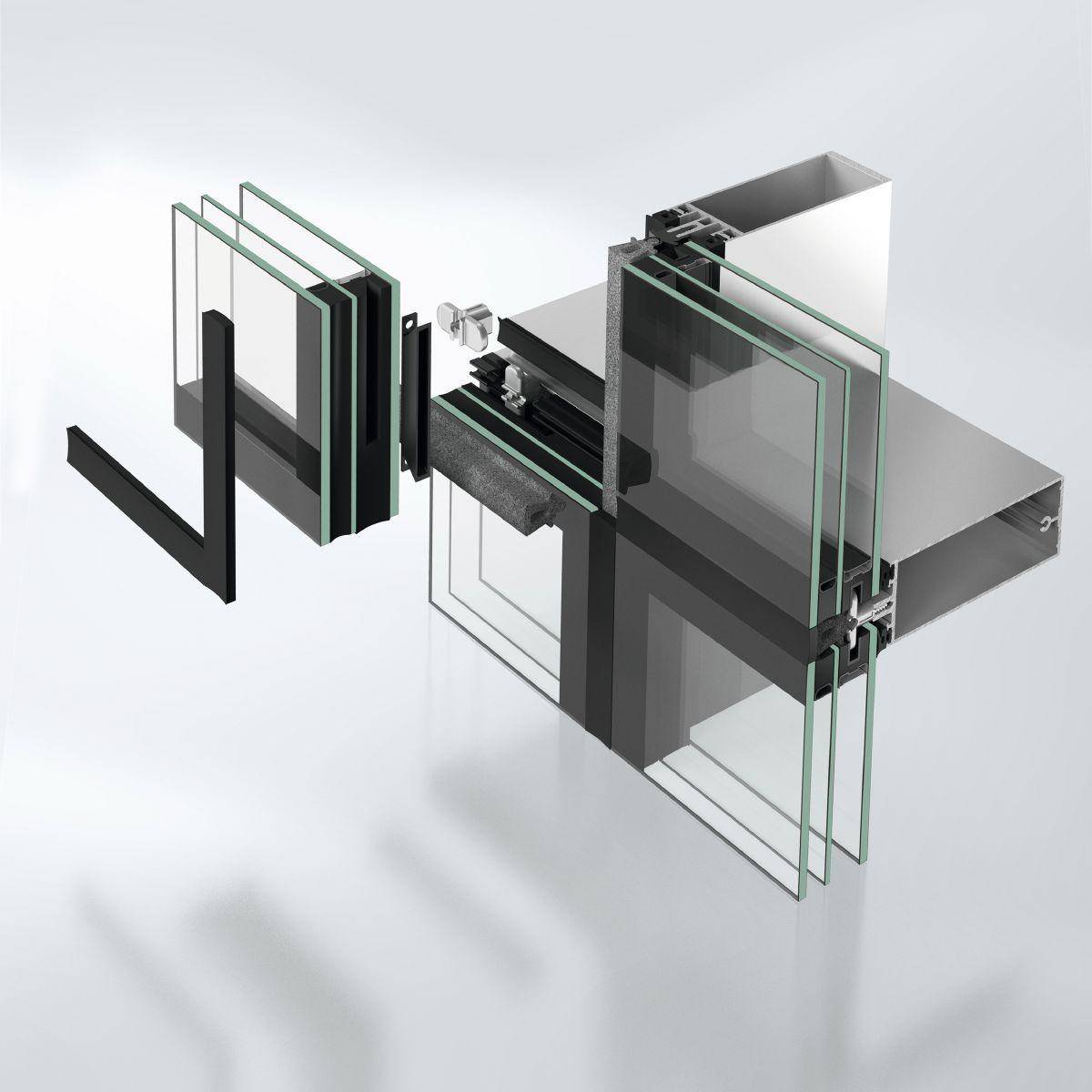

Slimline stick curtain walling façade system - FWS 50 SG

Verified by manufacturer 5 months ago

Schueco UK Ltd

Slimline all-glass facade with 50 mm face width.

Jump to:
+44 (0)1908 282111 Website

Application

Residential, commercial buildings, education, student accommodation and hospitality.

Description

Slimline all-glass facade with 50 mm face width.


Features and benefits:

  • External spaces between the panes of 12, 16 and 20 mm.
  • Concealed fixing of insulating glass units with glazing clips.
  • Plastic pocket profile for incremental mechanical fixing of the insulating glass unit to the load-bearing structure.
  • Screw-in glazing clip.
  • Clip-on function for simple profile installation.
  • Including colour coding for correct foil positioning for attachment to the building structure.
  • Efficient production of the structural glazing insulating glass with two-part stainless steel spacer.
  • Plastic pocket profile for incremental engagement in the pane edge seal or with one-part aluminium spacer and the use of fabrication machinery developed specifically for the respective application.
  • All assemblies to include a Schueco Internet of Facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records creating a project’s digital twin.


Standards:

  • EN 13830.
  • EN 1627.
  • CWCT.

General information

Finish

Powder-coated

Anodized

Material

Aluminium

Glass

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_10_20_85 Stick curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

Specification data - Stick curtain walling systems

Framing

-

Frame members

Aluminium curtain wall frame sections, polyester powder-coated.

Guidance for specification option:

Insert colour requirements.

Aluminium curtain wall frame sections, anodized.

Aluminium curtain wall frame sections, painted.

Guidance for specification option:

Insert colour requirements.

Frame accessories

-

Manufacturer guidance

Consult manufacturer for options and insert requirements, or omit.

Fasteners

Manufacturer's standard.

Cladding units

-

Glass units

-

Manufacturer guidance

Insert requirements, including thickness 32–44 mm thick.

Glazing accessories

-

Manufacturer guidance

Insert requirements or omit.

Fasteners

Manufacturer's standard.

Perimeter seals

Manufacturer's standard.

System accessories

-

Manufacturer guidance

Consult manufacturer for options and insert requirements, or omit.

Face width

50 mm.

Guidance for specification option:

Minimum.

Thermal transmittance (U-Value)

-

Manufacturer guidance

Insert requirements or consult manufacturer for values.

Uf value of frame: ≥ 1.4 W/m²K.

Acoustic performance rating

-

Manufacturer guidance

Insert requirements, up to Rw 46 dB.

Burglar resistance

-

Manufacturer guidance

Insert requirements; to EN 1627, up to RC 2.

Air permeability

Class AE.

Watertightness

Class RE 1200.

Resistance to wind load

2.0/ 3.0 kN/m².

Guidance for specification option:

Design load/ safety load.

Impact resistance

I5/ E5.

Label

Schueco ‘IoF’ ID tag with QR code.

Guidance for specification option:

Internet of facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

United Kingdom

Recyclability

cradle2cradle

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Schüco Façade Systems FWS

Schüco Façade Systems FWS
