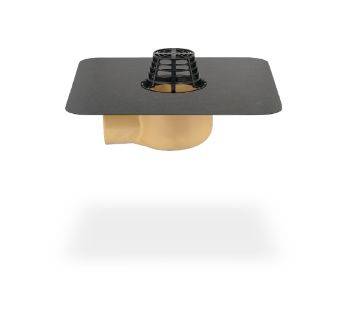

SitaTrendy Rainwater Outlet - Thermally Insulated Roof Outlet

Name: SitaTrendy Rainwater Outlet - Thermally Insulated Roof Outlet
Brand: Sita Bauelemente GmbH
SKU: 3X7mYCheiAprXpNfaXHJq5

Verified by manufacturer 2 months ago

Angled

Third party certifications:

Range of small, strong, flexible thermally insulated roof outlets with bodies made of rigid polyurethane integral foam.

Jump to:

BOS

Application

For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 for large used and unused flat roofs.

Range of small, strong, flexible thermally insulated roof outlets with bodies made of rigid polyurethane integral foam.

Features and benefits:

Compact design.
High discharge rate, considerably above the requirements of DIN EN 1253-2.
Also available with foamed-in heating element.
With foamed-in connection sleeve of choice, screw-on flange or adhesive flange.
Not sensitive to the weather (UV/ IR radiation, rain/ snow, temperature, ozone, etc.).
Impact and shock resistant.
Durable.
Up to size DN 125.
Suitable for bridging all insulation thicknesses from 60 to 520 mm.

Color	Black Beige
Material	Polyurethane (PUR) Bitumen PVC Thermoplastic polyolefin (TPO) Thermoplastic elastomer (TPE)
Shape	Circle Square
Warranty description	Six year

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS	R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets

Roof construction	-
Form	Guidance for specification option: Insert details.
Roof insulation thickness	Guidance for specification option: Insert details. Outlet is suitable for bridging all insulation thicknesses from 60 to 520 mm.
Material	Body: Rigid polyurethane integral foam.
Grating	Domed.
Spigots	DN70, outer diameter 75 mm. Guidance for specification option: Recess dimension: 250 x 350 mm. DN100, outer diameter 110 mm. Guidance for specification option: Recess dimension: 250 x 350 mm. DN125, outer diameter 125 mm. Guidance for specification option: Recess dimension: 250 x 420 mm. Manufacturer guidance Consult manufacturer's literature for full details.
Integral accessories	Bitumen sleeve 495 x 495 mm.

Orientation	Angled.
Standard	For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 for large used and unused flat roofs.
Accessories	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Reaction to fire	Euroclass E/ B2 normal flammability.

Country of material origin	Germany
Country of product manufacture	Germany
Material	Polyurethane (PUR) Bitumen PVC Thermoplastic polyolefin (TPO) Thermoplastic elastomer (TPE)
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	13.4 kg CO₂ eq/unit
