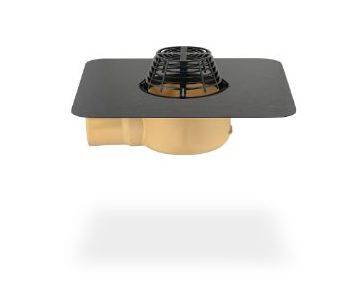

SitaStandard Rainwater Outlet - Thermally Insulated Roof Outlet
Verified by manufacturer 3 months ago
Angled
Angled
BRE Certificate
Certificate type
ISO 9001 Quality Management
Certificate type
TUV - Safety and Quality Report
Certificate type
EPD
Certificate type

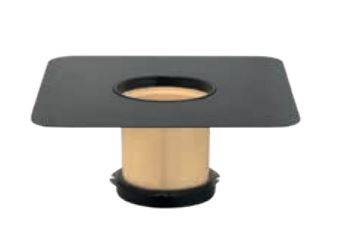

Range of thermally insulated roof outlets with bodies made of rigid polyurethane integral foam.
Application
For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 for large used and unused flat roofs.
Description
Range of Thermally Insulated Roof Outlets featuring bodies made of rigid polyurethane, designed for both main and emergency drainage applications.
The SitaStandard Vertical outlet is constructed from thermally insulated polyurethane and complies with DIN EN 1253-2 standards. Available in nominal widths of DN 70, DN 100, DN 125, DN 150, and DN 200, it offers a direct connection to pipes with push-fit sockets for gravity drainage. It includes a large integrated connection sleeve (495 mm x 495 mm) suitable for roof waterproofing membranes and liquid applied systems, and a fixing ring to secure the connection sleeve and support the included gravel trap.
Features and benefits:
- Not sensitive to the weather (UV/ IR radiation, rain/ snow, temperature, ozone, etc.).
- Impact and shock resistant.
- Durable.
- Heated option for most models.
- Features a large inlet pot resulting in a high discharge rate.
- Maximum discharge volume.
- Up to size DN 200.
- Robust construction.
- Homogeneous roofing membrane connection.
- Suitable for bridging all insulation thicknesses from 60 to 520 mm.
General information
Color | Black Beige |
Material | Polyurethane (PUR) |
Shape | Circle Square |
Length | Bespoke |
Width | 70 mm 100 mm 125 mm 150 mm 200 mm Manufacturer guidancePipe DN. |
Height | Bespoke |
Warranty description | Six year |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
Specification data - Gravity rainwater outlets
Roof construction | |
Form | Guidance for specification option: Insert details. |
Roof insulation thickness | Guidance for specification option: Insert details. Outlet is suitable for bridging all insulation thicknesses from 60 to 520 mm. |
Material | Body: Rigid polyurethane integral foam. |
Grating | Domed. |
Spigots | DN70, outer diameter 75 mm.Guidance for specification option: Recess dimension: 250 x 350 mm. DN100,outer diameter 110 mm.Guidance for specification option: Recess dimension: 250 x 350 mm. DN125,outer diameter 125 mm.Guidance for specification option: Recess dimension: 250 x 430 mm. Manufacturer guidanceConsult manufacturer's literature for full details. |
Integral accessories | Bitumen sleeve 495 x 495 mm. |
Orientation | Angled. |
Standard | For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 for large used and unused flat roofs. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Reaction to fire | Euroclass E/ B2 normal flammability. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Polyurethane (PUR) |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 13.4 kg CO₂ eq/unit |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
BRE Certificate
BRE Rainwater Outlet Thermal Performance Certification
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
TUV - Safety and Quality Report
LGA Certification - EN 1253-2:2015
EPD
Sita Flat-Roof Outlets – EPD
Literature

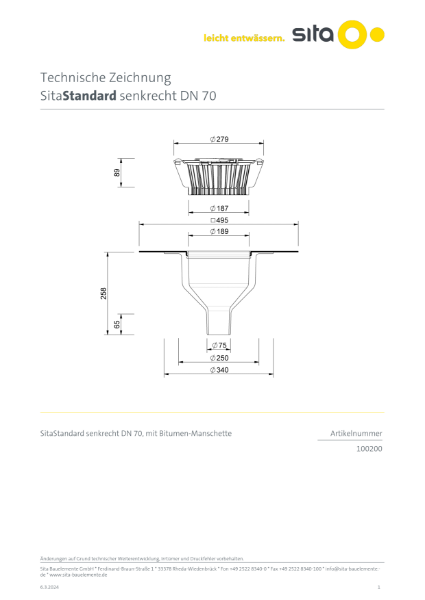

DN70 SitaStandard Vertical Roof Outlet - Technical Drawing

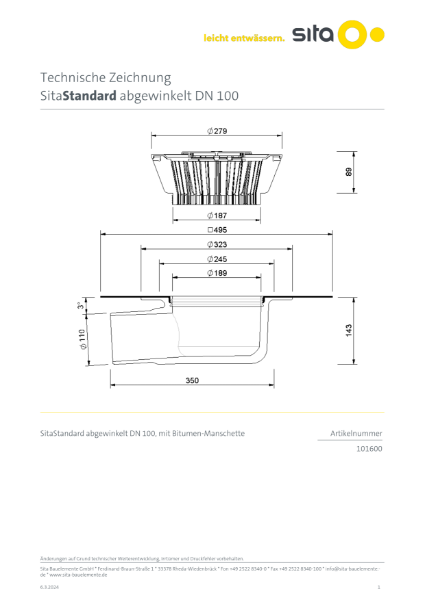

DN100 SitaStandard Angled Roof Outlet - Technical Drawing

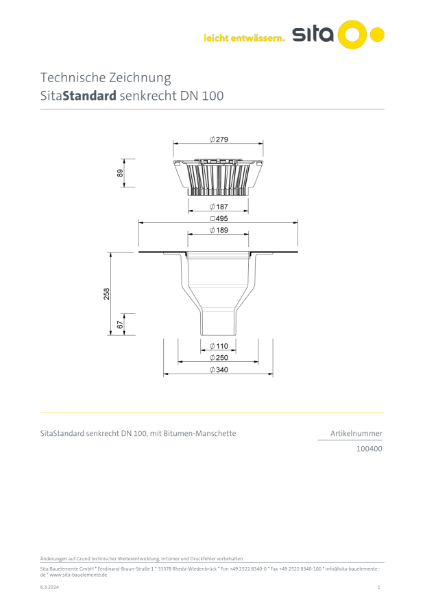

DN100 SitaStandard Vertical Roof Outlet - Technical Drawing

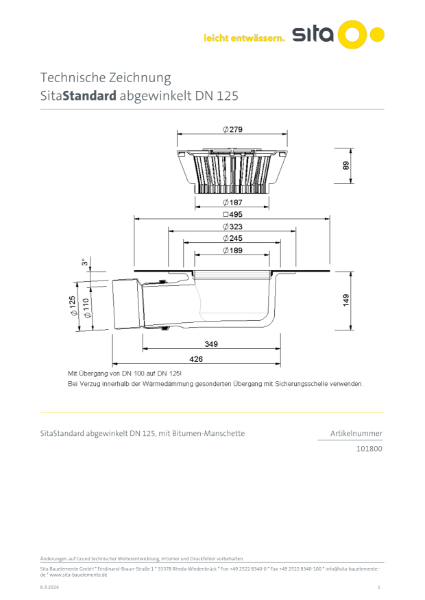

DN125 SitaStandard Angled Roof Outlet - Technical Drawing

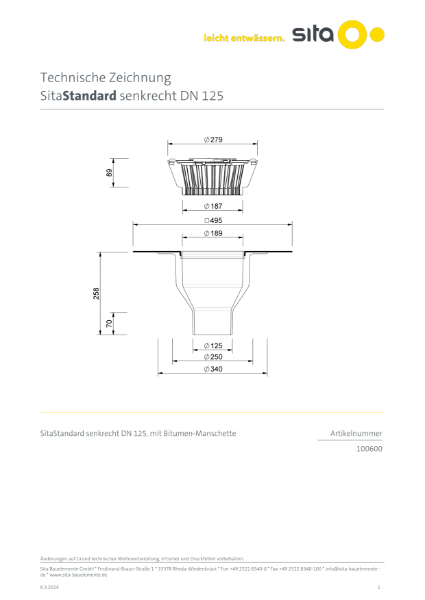

DN125 SitaStandard Vertical Roof Outlet - Technical Drawing

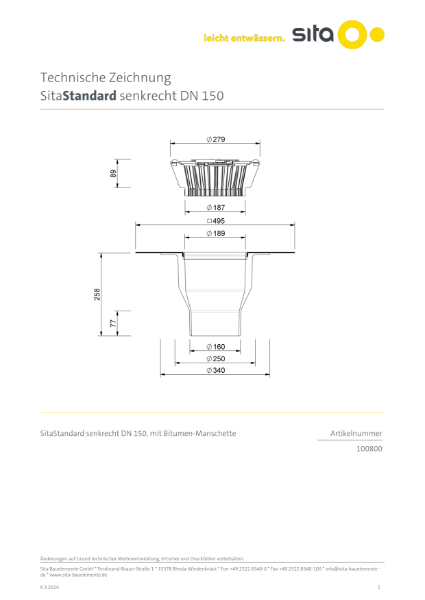

DN150 SitaStandard Vertical Roof Outlet - Technical Drawing

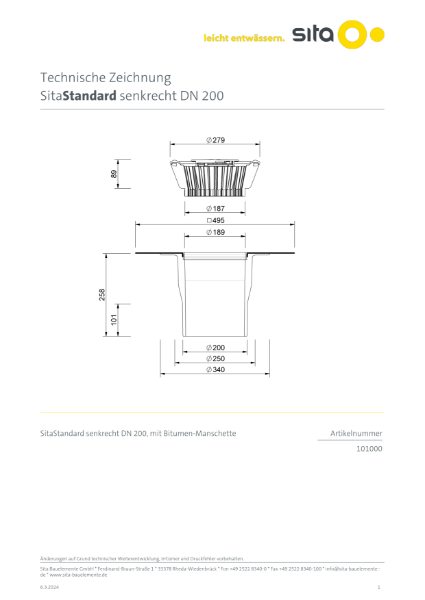

DN200 SitaStandard Vertical Roof Outlet - Technical Drawing

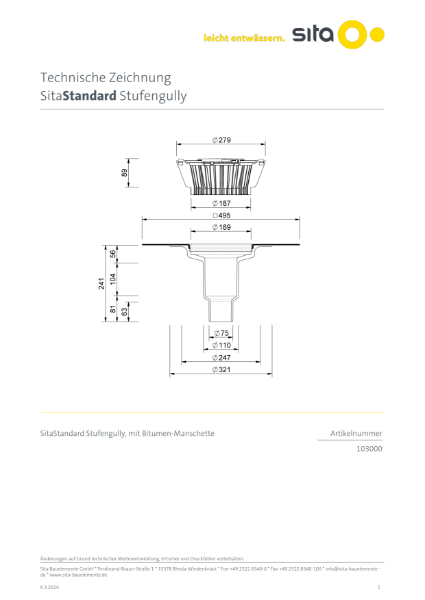

DN70/DN100 SitaStandard Stepped Roof Outlet - Technical Drawing

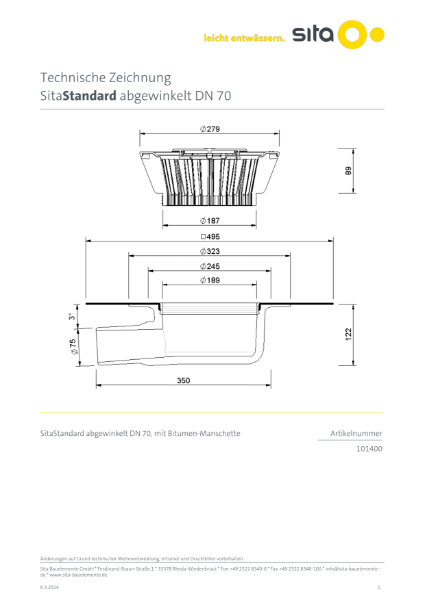

DN70 SitaStandard Angled Roof Outlet - Technical Drawing

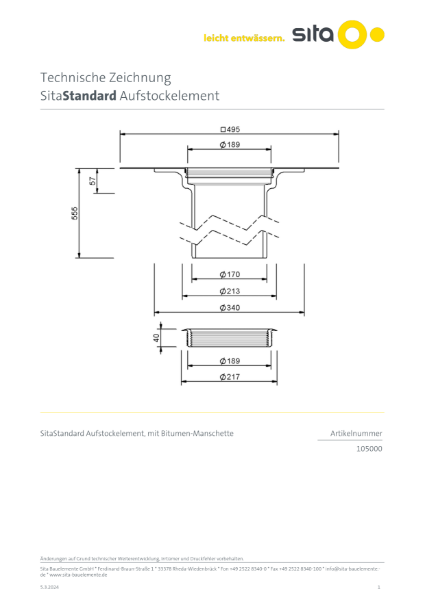

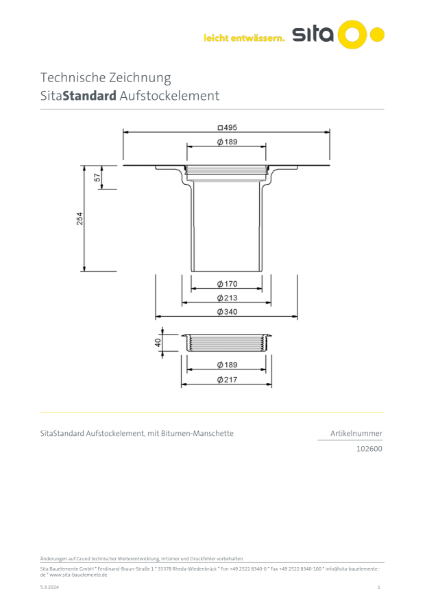

60-520mm SitaStandard Extension Unit - Technical Drawing
60-220mm SitaStandard Extension Unit - Technical Drawing

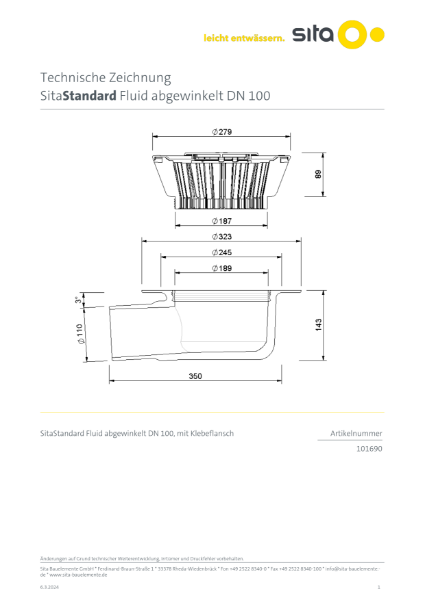

DN100 SitaStandard Fluid Angled Roof Outlet - Technical Drawing

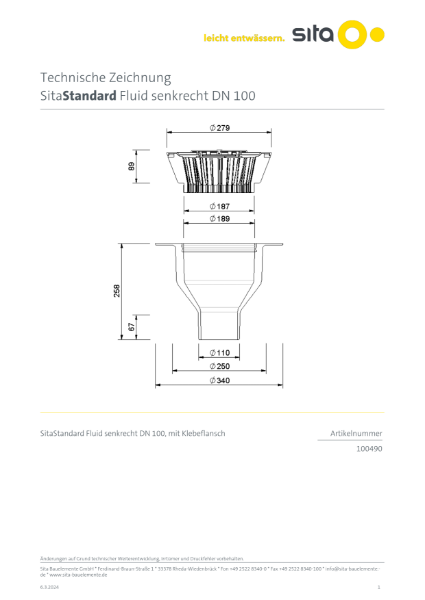

DN100 SitaStandard Fluid Vertical Roof Outlet - Technical Drawing
DN125 SitaStandard Fluid Vertical Roof Outlet - Technical Drawing

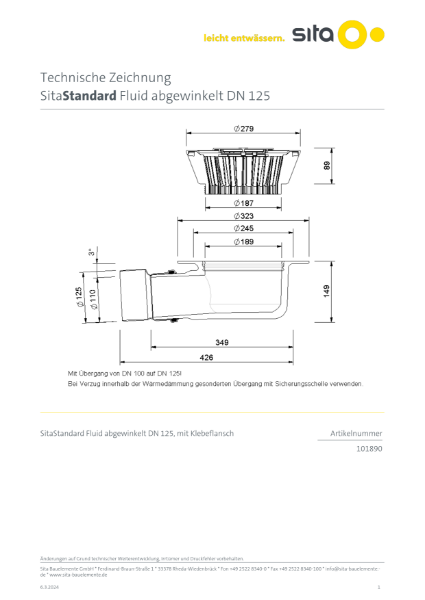

DN125 SitaStandard Fluid Angled Roof Outlet - Technical Drawing

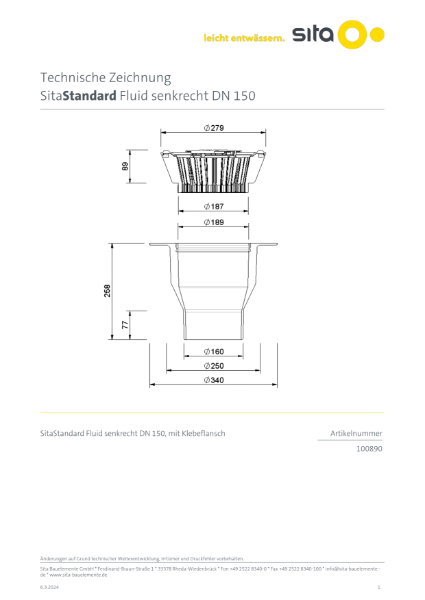

DN150 SitaStandard Fluid Vertical Roof Outlet - Technical Drawing

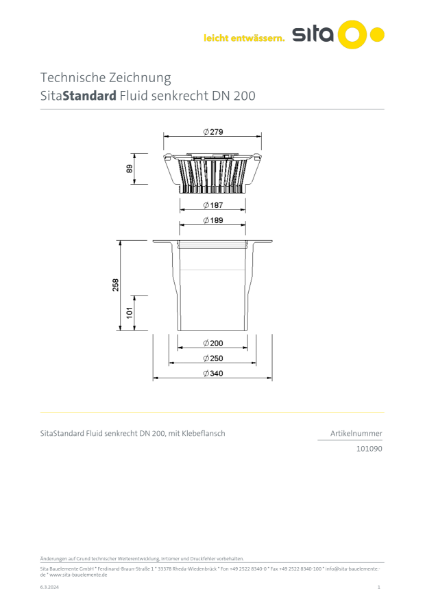

DN200 SitaStandard Fluid Vertical Roof Outlet - Technical Drawing

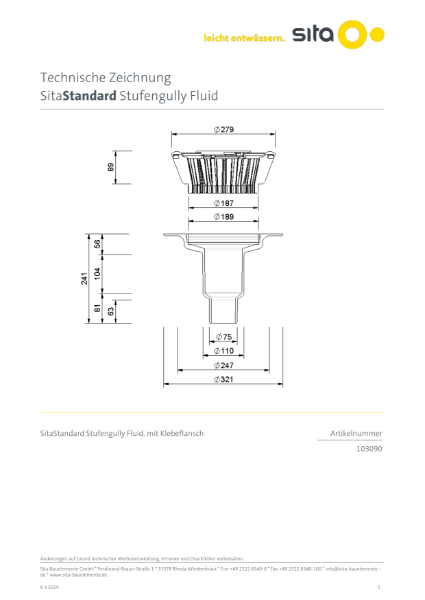

DN70/DN100 SitaStandard Liquid Stepped Roof Outlet - Technical Drawing

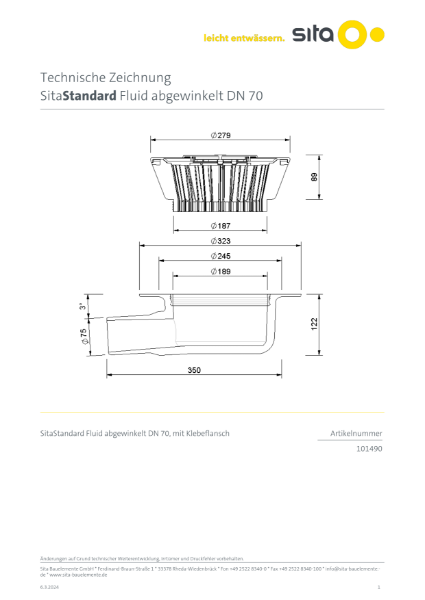

DN70 SitaStandard Fluid Angled Roof Outlet - Technical Drawing

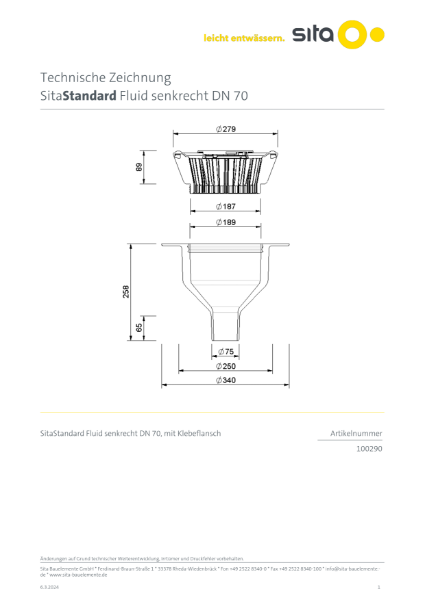

DN70 SitaStandard Fluid Vertical Roof Outlet - Technical Drawing
60-160mm SitaStandard Extension Unit - Technical Drawing
