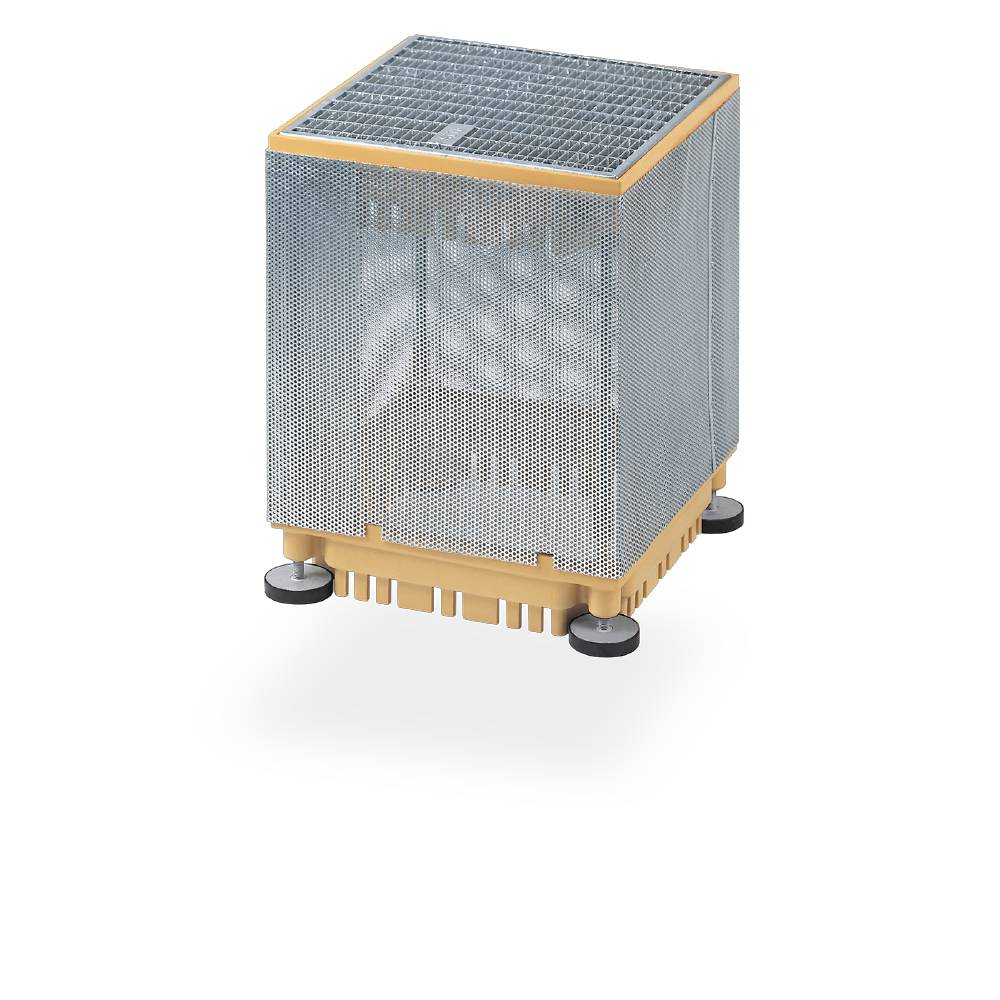

SitaGreen Green Roof Inspection Chambers - Modular Inspection Shaft for Area Outlet
Verified by manufacturer 2 months ago
Intensive green roofs
Intensive green roofs
EPD
Certificate type
Green roof shafts providing a solution for rainwater drainage on all levels of the layered structure for planted roofs. Suitable for intensive and extensive roofs.
Application
For rainwater drainage from intensive and extensive roof greenery.
Description
Green roof shafts providing a solution for rainwater drainage on all levels of the layered structure for planted roofs.
Features and benefits:
- For intensive and extensive greenery.
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.).
- Impact and shock resistant.
- Durable.
- Modular inspection shaft for area outlets.
- Drainage of all layers.
- Suitable for any roof greenery.
- Infinitely height-adjustable.
- Simple installation.
General information
Color | Silver Beige |
Finish | Galvanized Guidance for specification option: End grate. |
Material | Polyurethane (PUR) Rubber Steel |
Shape | Square |

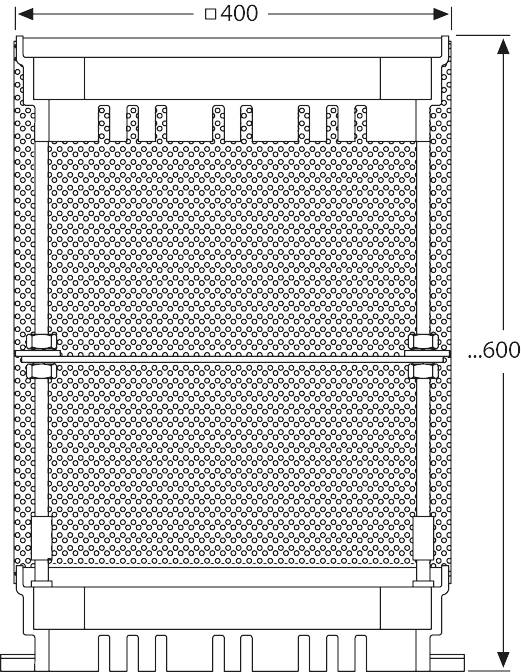

Length | 400 mm |
Width | 400 mm |
Height | 600 mm Guidance for specification option: Maximum height, intensive green roofs. 130 mm Guidance for specification option: Maximum height, extensive green roofs. |
Warranty description | Six year |
Uniclass | |
CAWS | Q37/120 Simple intensive green roof Q37/110 Intensive green roof Q37/130 Extensive green roof R10/365 Proprietary rainwater outlets R10/26 Proprietary rainwater outlets |
Specification data - Gravity rainwater outlets
Material | Polyurethane frame with perforated aluminium sides.Guidance for specification option: Height adjustable 100–130 mm. |
Grating | Flat; 400 x 400 mm, mesh size 9 x 32 mm; hot-dip galvanized. |
Frame height | 230–600 mm (adjustable). Guidance for specification option: Height adjustable up to 600 mm; can be shortened on site to 230 mm. Consult manufacturer for details. |
Accessories | None. SitaGreen extension unit. SitaCompact retaining ring. SitaMore retaining ring. SitaTrendy retaining ring. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Polyurethane (PUR) Rubber Steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 13.4 kg CO₂ eq/unit |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
EPD
Sita Flat-Roof Outlets – EPD
