SitaEasy Go Parapet Rainwater Outlet - Parapet Outlet
Verified by manufacturer 2 months ago
DN100
DN100
ISO 9001 Quality Management
Certificate type
TUV - Safety and Quality Report
Certificate type
EPD
Certificate type
Thermally insulated parapet outlet, for main and emergency drainage through the parapet.
Application
For main drainage on flat and slightly pitched, used and unused roof surfaces.
For direct connection of pipes with plug-in coupler, for conventional drainage.
Description

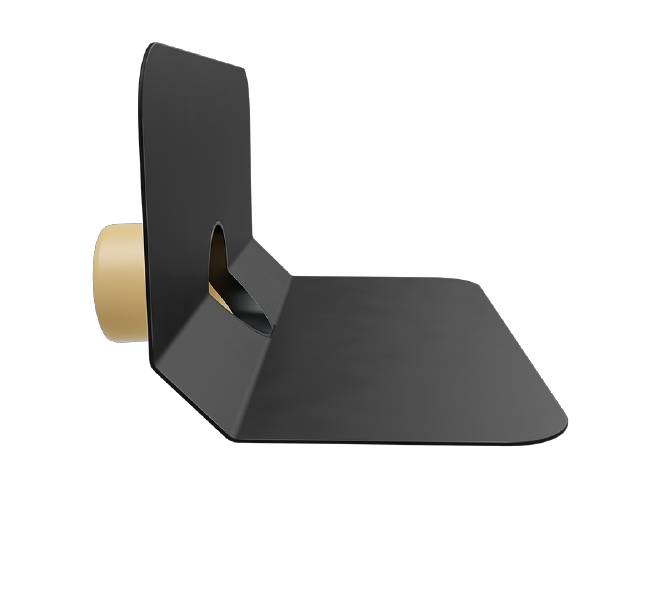

Thermally insulated parapet outlet made of polyurethane, for main and emergency drainage through the parapet.
Features and benefits:
- Not sensitive to the weather (UV/ IR radiation, rain/ snow, temperature, ozone, etc.).
- Sizes DN 70 and 100.
- Impact and shock resistant.
- Durable.
General information
Color | Black Beige |
Material | Polyurethane (PUR) Bitumen Guidance for specification option: Sleeves only. PVC Thermoplastic elastomer (TPE) Thermoplastic polyolefin (TPO) |
Shape | Circle Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Six year |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
Specification data - Gravity rainwater outlets
Roof construction | |
Form | Guidance for specification option: Insert details. |
Material | Body: Rigid polyurethane integral foam. |
Grating | Not applicable. |
Spigots | DN100, outer diameter 110 mm.Guidance for specification option: Pipe connection (support) length: 68 mm. Opening/ core borehole: 150 mm. Manufacturer guidanceDischarge rate 0.7 L/s as waterspout at 35 mm retaining height. Consult manufacturer's literature for further details. |
Integral accessories | Bitumen sleeve; fixing ring.Guidance for specification option: Fixing ring for addition securing of the connection sleeve and to hold a dome grate; see Accessories. |
Orientation | Horizontal (through parapet). |

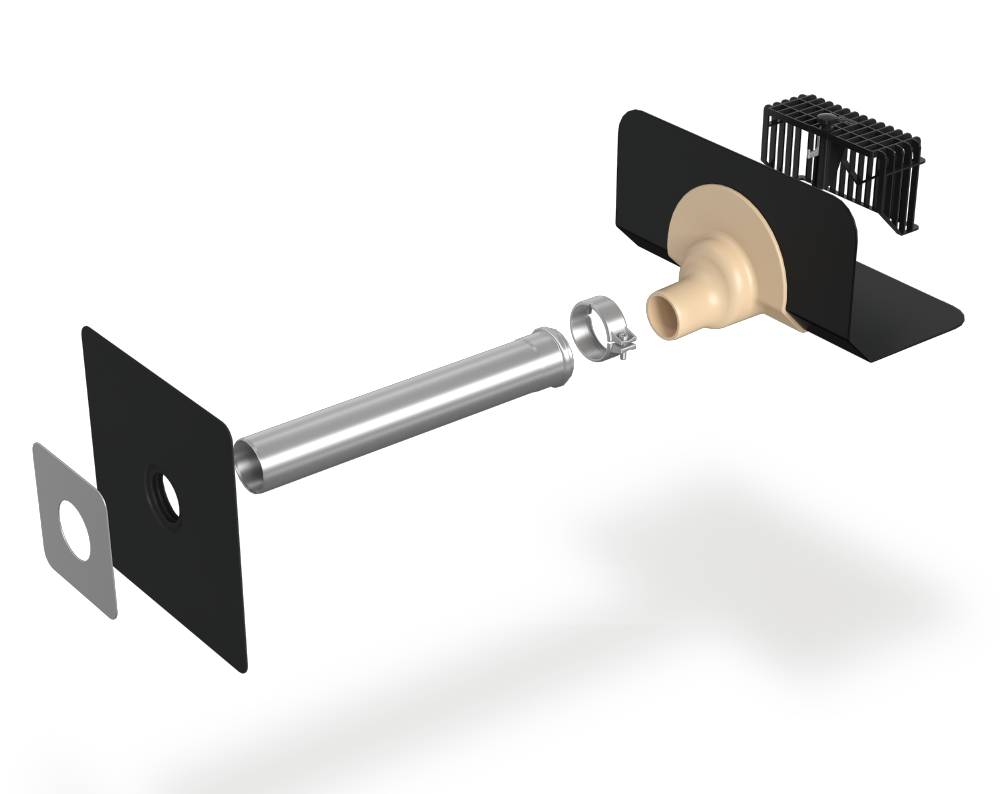

Accessories | None. SitaEasy Go dome grate. SitaMore vapour barrier plate (1 x DN100). SikaAttika cladding cover plate. SitaMore sealing sleeve. |
Reaction to fire | Euroclass E/ B2 normal flammability. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Polyurethane (PUR) Bitumen Guidance for specification option: Sleeves only. PVC Thermoplastic elastomer (TPE) Thermoplastic polyolefin (TPO) |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 13.4 kg CO₂ eq/unit |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
TUV - Safety and Quality Report
LGA Certification - EN 1253-2:2015
EPD
Sita Flat-Roof Outlets – EPD
