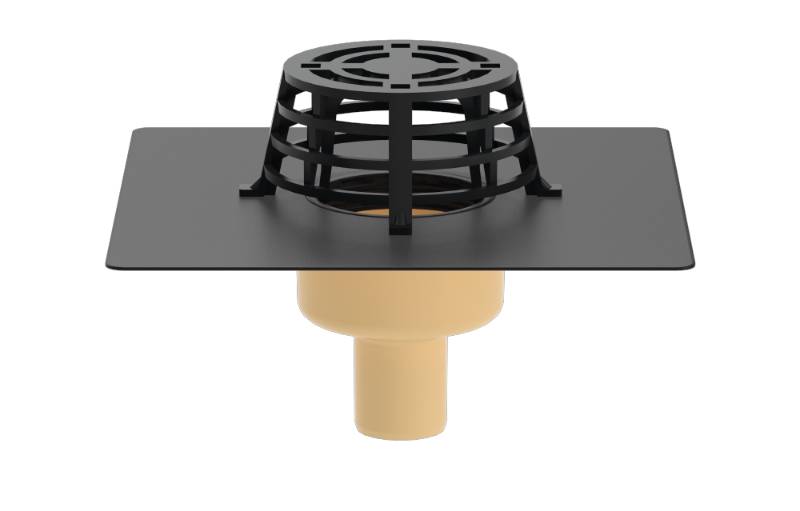

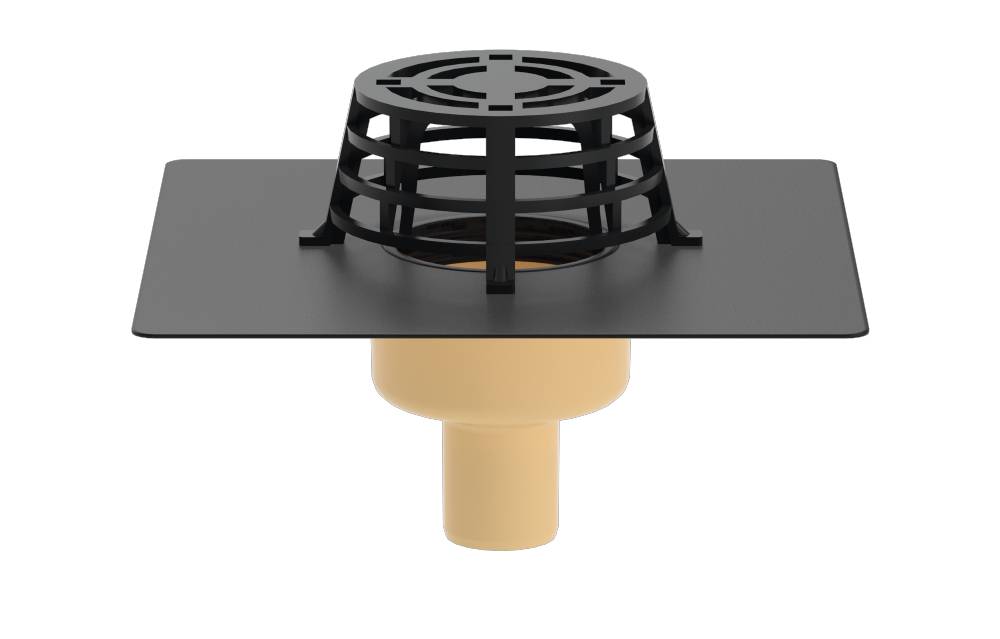

SitaCompact Balcony & Terrace Rainwater Outlet - Thermally Insulated Roof Outlet
Verified by manufacturer 2 months ago
Vertical, DN50
Vertical, DN50
ISO 9001 Quality Management
Certificate type
TUV - Safety and Quality Report
Certificate type
EPD
Certificate type
Range of thermally insulated roof outlets with small cross-sections and large capacity for use one areas where space may be constricted.
Application
For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 of balconies, terraces, loggias and garages.
Description
Range of small yet particularly efficient rainwater outlets, as required on small flat roofs, terraces, balconies and garages to ensure good drainage due to the often constricted space available.
The SitaCompact balcony outlet series was specially designed for this area of application.
Features and benefits:
- Compact design.
- High discharge rate, considerably above the requirements of DIN EN 1253-2.
- Also available with foamed-in heating element.
- With foamed-in connection sleeve of choice, screw-on flange or adhesive flange.
- Not sensitive to the weather (UV/ IR radiation, rain/ snow, temperature, ozone, etc.).
- Impact and shock resistant.
- Durable.
- Up to size DN 125.
- Suitable for bridging all insulation thicknesses from 60 to 520 mm.
General information
Color | Black Beige |
Material | Polyurethane (PUR) Bitumen |
Shape | Circle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Six year |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
Specification data - Gravity rainwater outlets
Roof construction | |
Form | Guidance for specification option: Insert details. |
Roof insulation thickness | Guidance for specification option: Insert details. Outlet is suitable for bridging all insulation thicknesses from 60 to 520 mm. |
Material | Body: Polyurethane. |
Grating | Domed. |
Spigots | DN50, outer diameter 50 mm.Guidance for specification option: Pipe connection length: 52 mm. Manufacturer guidanceOpening/ core borehole: 153 mm. Consult manufacturer's literature for full details. |
Integral accessories | Bitumen sleeve; fixing ring. |
Orientation | Vertical. |
Accessories | Guidance for specification option: Consult manufacturer's literature for options and insert requirements. |
Standard | For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 of balconies, terraces, loggias and garages. |
Reaction to fire | Euroclass E/ B2 normal flammability. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Polyurethane (PUR) Bitumen |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 13.4 kg CO₂ eq/unit |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
TUV - Safety and Quality Report
LGA Certification - EN 1253-2:2015
EPD
Sita Flat-Roof Outlets – EPD
