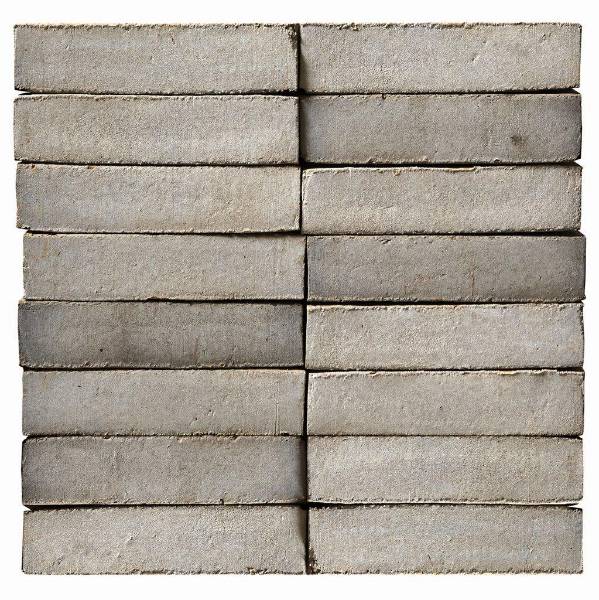

Sisteron Grey - Clay Facing Brick
Verified by manufacturer 16 days ago
Extruded wire-cut brick in grey multi colour with smooth appearance with perforation pattern.
Application
Suitable for external use.
Description
Produced by extruding a column of clay through a brick shaped die and then cutting the column into individual bricks using a wire. Wirecut bricks tend to have very precise edges and also have perforations through the bricks. The perforation pattern can be in many different forms depending on where the bricks are manufactured. They can also be produced as solid bricks.
Features and benefits:
- Wirecut bricks.
- Precise edges.
- Smooth appearance.
- Perforation pattern.
- Grey multi colour.
- Sized inline with BS EN 771-1.
General information
Color | Grey Manufacturer guidanceGrey Multi. |
Finish | Smooth |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102.5 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Smooth. |
Work size (length x width x height) | 215 x 102.5 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥30 N/mm². |
Category | I. |
Durability designation | F2. |
Density | |
Gross dry | 1700 kg/m³. |
Tolerance | D1. |
Water absorption | ≤16%.Guidance for specification option: Percentage of water overall absorption. |
Configuration | Perforated. |
Thermal conductivity | P=90% NPD W/m⋅K.Guidance for specification option: 10,dry,unit value (EN 1745 tabulated: S1). |
Water vapour permeability | Manufacturer guidanceRefer to BS EN 1745 tabulated values. |
Bond strength | Manufacturer guidanceRefer to BS EN 1052-3. |
Reaction to fire | Class A1 to BS EN 13501-1. |
Active soluble salts | S2. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Denmark |
Country of product manufacture | Denmark |
Material | Clay |
Literature

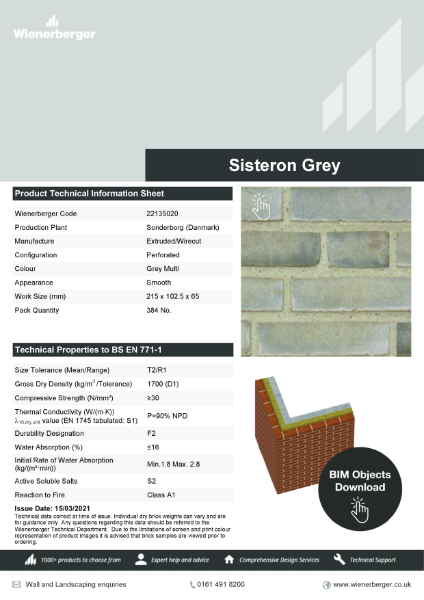

Sisteron Grey Data Sheet
