Siniat Independent Lining system IWL 008 (IS70B)

Verified by manufacturer 2 months ago

Siniat

Independent lining system.

Jump to:
+44 (0)1275 377773 Website

Application

Metal stud wall lining system

Description

Siniat offers a wide range of plasterboard lining fixing options to walls and roofs for most typical substrates. Different depths of cavity spaces can be created between the Siniat Board or Siniat Thermal Board lining and underlying wall. These cavities hide services or help to achieve high levels of fire resistance, U-Values and sound insulation.


Features:

  • Suitable for commercial projects where deep continuous cavities behind boards are needed to correct or isolate substrates and accommodate services.
  • Particularly suited to substrates which may not be suitable for direct fixing, e.g. metal cladding and other modern methods of construction.


Benefits:

  • Based on the Siniat Metal Stud systems for straightforward specification and installation.
  • Completely independent from substrate so no thermal bridges are created.
  • Allows drylining upgrade of any substrate or accommodate services by creating a separate 'false' wall.

General information

Finish

Other

Material

Plasterboard

Metal

Shape

Other

Width

Bespoke

Height

Bespoke

WarrantyDescription

Lifetime

Etex Building Performance Limited offers both a comprehensive Lifetime System Warranty (excl. Aquaboard™ and Weather Defence) and External Board Warranty (Incl. Aquaboard™ - 10 Years and Weather Defence - 12 Years). For full details see the full Warranty and Proprietary Systems Policy at www.siniat.co.uk/knowledge-centre/. Etex Building Performance Limited warrants to the purchaser that the Siniat Plasterboard Solutions (“Systems”) as originally designed, built and unaltered will perform to the original laboratory performance parameters as set out in the Siniat Drywall Manual and other relevant literature as published by Siniat. The system must be constructed solely with the proprietary products and components as supplied by Siniat. The system must be installed by a professional installer in accordance with: the Siniat Drywall Manual; this specification document; CAD drawings; advice; and all relevant and applicable construction standards and regulations.

Uniclass

Ss_25_25_45_35 Gypsum board wall lining systemsPrimary

CAWS

K10/165 Wall lining system (metal framing)

K10/35 Wall lining system (metal framing)

Specification data - Gypsum board wall lining systems

System performance

All Siniat systems should be constructed to BS 8212:1995 and BS 8000-8:1989.

  • BS 8212:1995 - 'Code of practice for drylining and partitioning using gypsum plasterboard'.
  • BS 8000-8:1989 - 'Code of practice for plasterboard partitions and drylining.'

Insulation

Glass Mineral Wool.

  • Density (minimum): 10 kg/m³.
  • Thickness (minimum): 25 mm.


Linings

-

Inner layers

15 mm Siniat Fire Board.

Face layer

15 mm Siniat Fire Board.

Fasteners

Inner layer: 25 mm Siniat Self Tapping Screws all at maximum 600 mm centres. Face layer: 45 mm Siniat Performance Self Tapping Screws at maximum 300 mm centres.

Joint treatment

When using an outer layer for Siniat Aqua Board follow manufacturer’s guidance on wet area installation.

Decorative.

Siniat taping and jointing system using appropriate Siniat jointing materials and Siniat Paper Joint Tape.

Consult manufacturer for further details.

Non-decorative.

Outer boards should be taped and jointed using appropriate Siniat compounds to at least first stage (bedding).

Consult manufacturer for further details.

Finish

Apply undiluted across the whole drylined surface by brush or roller to coverage rate as defined by current Siniat Drywall Manual.

Siniat Universal Sealer.

Siniat Drywall Sealer.

Samples required

Consult manufacturer and insert requirements or omit.

Framing

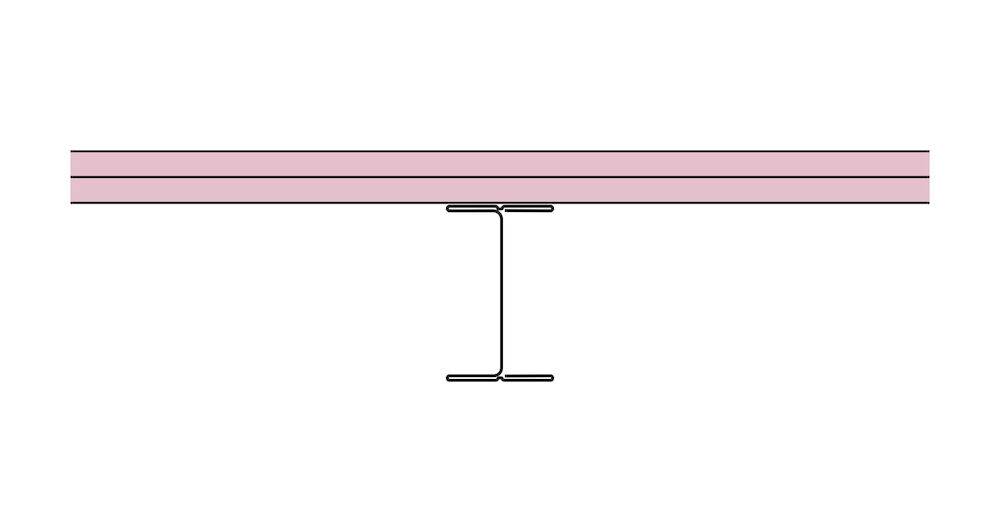

Channel: 70 mm Siniat I Stud IS70/B at 600 mm centres. Top track: 72 mm Siniat Deep Flange U Tracks UDT72/B. Base track: 72 mm Siniat U Tracks UT72/Rx.

Head and base track fixed to structure at maximum 600 mm centres with suitable fixing by others.

Sealing (joints and penetrations)

Intumescent acoustic sealant.

Apply 6 mm continuous beads of Siniat Intumescent Acoustic Sealant around the perimeter of the framing or to the edge of outer layers of board, ensuring that all air-paths are sealed.


All penetrations should use supporting constructions detailed in the Siniat Drywall Manual unless superseded by specific test information. For combined, warrantied performance specify FSi fire-stopping products. For cPVC pipe sealing use FSI PYROPRO(R) Sealant in place of Siniat Intumescent Acoustic Sealant.

Height

Maximum height: 4000 mm.

Sound insulation

35 Rw dB (32 Rw dB + Ctr).

Thickness

Nominal.

100 mm.

Deflection

Insert requirements or omit. If required as per Drywall manual.

System code

IS70B-215F#0.

Third-party certification

All products are CE marked and UKCA marked in accordance with construction products regulation.

Where relevant standards or European Technical Approvals exist

Standards

To BS EN 520, BS EN 10346, BS EN 10162, BS EN 14195 and BS EN 14566.

  • All boards to conform to BS EN 520 or alternative standard where appropriate.
  • Metal framing components are hot dipped galvanized steel to BS EN 10346.
  • Metal sections rolled to BS EN 10162.
  • Metal studs, tracks and accessories conform to BS EN 14195 where required.
  • Drywall screws conform to BS EN 14566.

Fire performance

Fire resistance to BS 476-22: 30 minutes. Fire resistance to EN 1364-1: EI30 E60. Fire performance to EN 13381-2 (for concrete, and steel beams/columns): 120 minutes.
