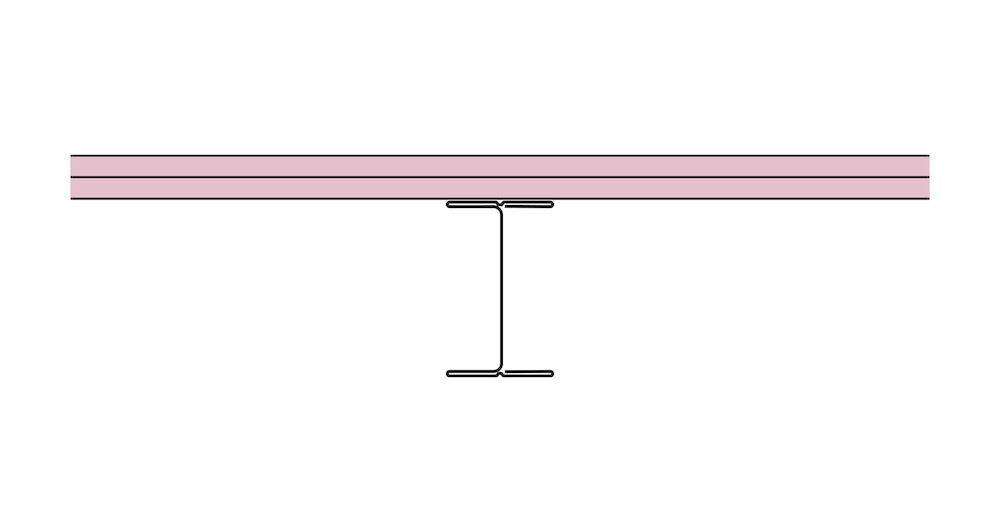

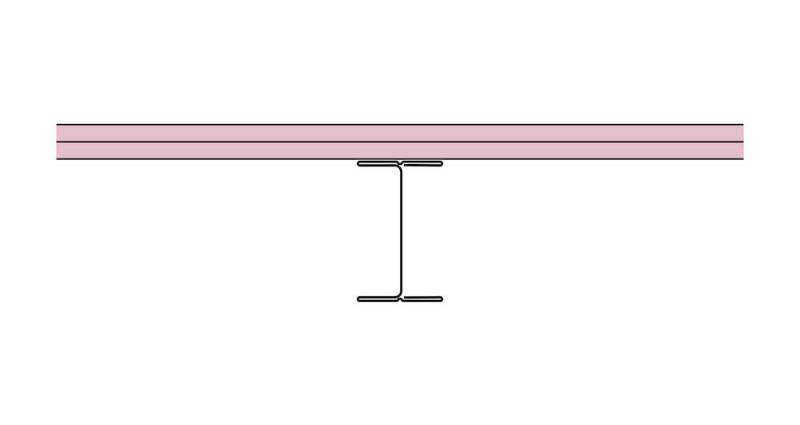

Siniat Independent Lining system IWL 007 (IS50R)
Verified by manufacturer 9 months ago
Independent lining system.
Application
Metal stud wall lining system
Description
Siniat offers a wide range of plasterboard lining fixing options to walls and roofs for most typical substrates. Different depths of cavity spaces can be created between the Siniat Board or Siniat Thermal Board lining and underlying wall. These cavities hide services or help to achieve high levels of fire resistance, U-Values and sound insulation.
Features:
- Suitable for commercial projects where deep continuous cavities behind boards are needed to correct or isolate substrates and accommodate services.
- Particularly suited to substrates which may not be suitable for direct fixing, e.g. metal cladding and other modern methods of construction.
Benefits:
- Based on the Siniat Metal Stud systems for straightforward specification and installation.
- Completely independent from substrate so no thermal bridges are created.
- Allows drylining upgrade of any substrate or accommodate services by creating a separate 'false' wall.
General information
Finish | Other |
Material | Plasterboard Metal |
Shape | Other |
Width | Bespoke |
Height | Bespoke |
Warranty description | Lifetime Guidance for specification option: Etex Building Performance Limited offers both a comprehensive Lifetime System Warranty (excl. Aquaboard™ and Weather Defence) and External Board Warranty (Incl. Aquaboard™ - 10 Years and Weather Defence - 12 Years). For full details see the full Warranty and Proprietary Systems Policy at www.siniat.co.uk/knowledge-centre/. Etex Building Performance Limited warrants to the purchaser that the Siniat Plasterboard Solutions (“Systems”) as originally designed, built and unaltered will perform to the original laboratory performance parameters as set out in the Siniat Drywall Manual and other relevant literature as published by Siniat. The system must be constructed solely with the proprietary products and components as supplied by Siniat. The system must be installed by a professional installer in accordance with: the Siniat Drywall Manual; this specification document; CAD drawings; advice; and all relevant and applicable construction standards and regulations. |
