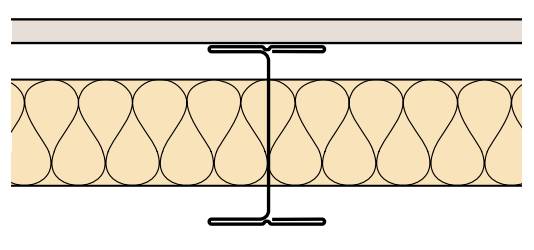

Siniat Independent Lining system IWL 002 (IS50R)

Name: Siniat Independent Lining system IWL 002 (IS50R)
Brand: Siniat
SKU: njWPHco6ZQyH3fFdrZU77H

Verified by manufacturer 1 month ago

Siniat

Independent lining system.

Jump to:

+44 (0)1275 377773 Website

Application

Metal stud wall lining system

Description

Siniat offers a wide range of plasterboard lining fixing options to walls and roofs for most typical substrates. Different depths of cavity spaces can be created between the Siniat Board or Siniat Thermal Board lining and underlying wall. These cavities hide services or help to achieve high levels of fire resistance, U-Values and sound insulation.

Features:

Suitable for commercial projects where deep continuous cavities behind boards are needed to correct or isolate substrates and accommodate services.
Particularly suited to substrates which may not be suitable for direct fixing, e.g. metal cladding and other modern methods of construction.

Benefits:

Based on the Siniat Metal Stud systems for straightforward specification and installation.
Completely independent from substrate so no thermal bridges are created.
Allows drylining upgrade of any substrate or accommodate services by creating a separate 'false' wall.

General information

Finish	Other
Material	Plasterboard Metal
Shape	Other
Width	Bespoke
Height	Bespoke
Warranty description	Lifetime Guidance for specification option: Etex Building Performance Limited offers both a comprehensive Lifetime System Warranty (excl. Aquaboard™ and Weather Defence) and External Board Warranty (Incl. Aquaboard™ - 10 Years and Weather Defence - 12 Years). For full details see the full Warranty and Proprietary Systems Policy at www.siniat.co.uk/knowledge-centre/. Etex Building Performance Limited warrants to the purchaser that the Siniat Plasterboard Solutions (“Systems”) as originally designed, built and unaltered will perform to the original laboratory performance parameters as set out in the Siniat Drywall Manual and other relevant literature as published by Siniat. The system must be constructed solely with the proprietary products and components as supplied by Siniat. The system must be installed by a professional installer in accordance with: the Siniat Drywall Manual; this specification document; CAD drawings; advice; and all relevant and applicable construction standards and regulations.

Uniclass	Ss_25_25_45_35 Gypsum board wall lining systemsPrimary
CAWS	K10/165 Wall lining system (metal framing) K10/35 Wall lining system (metal framing)

Specification data - Gypsum board wall lining systems

System performance	All Siniat systems should be constructed to BS 8212:1995 and BS 8000-8:1989. Guidance for specification option: BS 8212:1995 - 'Code of practice for drylining and partitioning using gypsum plasterboard'. BS 8000-8:1989 - 'Code of practice for plasterboard partitions and drylining.'
Insulation	Glass Mineral Wool. Guidance for specification option: Density (minimum): 10 kg/m³. Thickness (minimum): 25 mm.
Linings	-
Face layer	12.5 mm Siniat Standard Board.
Fasteners	25 mm Siniat Self Tapping Screws all at maximum 300 mm centres.
Joint treatment	Decorative. Guidance for specification option: Siniat taping and jointing system using appropriate Siniat jointing materials and Siniat Paper Joint Tape. Consult manufacturer for further details. Non-decorative. Guidance for specification option: Outer boards should be taped and jointed using appropriate Siniat compounds to at least first stage (bedding). Consult manufacturer for further details. Manufacturer guidance When using an outer layer for Siniat Aqua Board follow manufacturer’s guidance on wet area installation.
Finish	Siniat Universal Sealer. Siniat Drywall Sealer. Manufacturer guidance Apply undiluted across the whole drylined surface by brush or roller to coverage rate as defined by current Siniat Drywall Manual.
Samples required	Guidance for specification option: Consult manufacturer and insert requirements or omit.

Framing	Channel: 50 mm Siniat I Stud IS50/Rx at 600 mm centres. Top track: 52 mm Siniat Deep Flange U Tracks UDT52/B. Base track: 52 mm Siniat Deep Flange U Tracks UDT52/B. Guidance for specification option: Head and base track fixed to structure at maximum 600 mm centres with suitable fixing by others.
Sealing (joints and penetrations)	Intumescent acoustic sealant. Guidance for specification option: Apply 6 mm continuous beads of Siniat Intumescent Acoustic Sealant around the perimeter of the framing or to the edge of outer layers of board, ensuring that all air-paths are sealed. All penetrations should use supporting constructions detailed in the Siniat Drywall Manual unless superseded by specific test information. For combined, warrantied performance specify FSi fire-stopping products. For cPVC pipe sealing use FSI PYROPRO(R) Sealant in place of Siniat Intumescent Acoustic Sealant.
Height	Guidance for specification option: Maximum height: 2800 mm.
Sound insulation	28 Rw dB (25 Rw dB + Ctr).
Thickness	62.5 mm. Manufacturer guidance Nominal.
Deflection	Guidance for specification option: Insert requirements or omit. If required as per Drywall manual.
System code	IS50R-12St#0-25G.
Third-party certification	All products are CE marked and UKCA marked in accordance with construction products regulation. Guidance for specification option: Where relevant standards or European Technical Approvals exist
Standards	To BS EN 520, BS EN 10346, BS EN 10162, BS EN 14195 and BS EN 14566. Guidance for specification option: All boards to conform to BS EN 520 or alternative standard where appropriate. Metal framing components are hot dipped galvanized steel to BS EN 10346. Metal sections rolled to BS EN 10162. Metal studs, tracks and accessories conform to BS EN 14195 where required. Drywall screws conform to BS EN 14566.

Sustainability data

Country of material origin	Spain Manufacturer guidance Applies to the bulk material (gypsum) only. Other components are from other countries. Consult manufacturer for details.
Country of product manufacture	United Kingdom Manufacturer guidance UK applies to the majority of manufacture but a small percentage of finished items are imported. Contact manufacturer for details.
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	- Manufacturer guidance Latest EPD information available from: www.siniat.co.uk/en-gb/documentation/
Recyclability	Gypsum and metal components can be recycled depending on the segregation of all materials.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Gypsum average 33.5% and metal average 17%.
