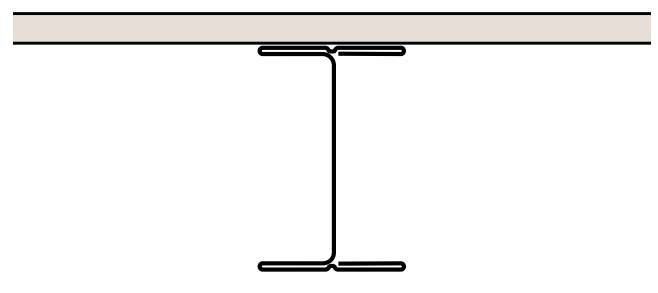

Siniat Independent Lining system IWL 001 (IS70B)
Verified by manufacturer 8 months ago
Independent lining system.
Application
Metal stud wall lining system
Description
Siniat offers a wide range of plasterboard lining fixing options to walls and roofs for most typical substrates. Different depths of cavity spaces can be created between the Siniat Board or Siniat Thermal Board lining and underlying wall. These cavities hide services or help to achieve high levels of fire resistance, U-Values and sound insulation.
Features:
- Suitable for commercial projects where deep continuous cavities behind boards are needed to correct or isolate substrates and accommodate services.
- Particularly suited to substrates which may not be suitable for direct fixing, e.g. metal cladding and other modern methods of construction.
Benefits:
- Based on the Siniat Metal Stud systems for straightforward specification and installation.
- Completely independent from substrate so no thermal bridges are created.
- Allows drylining upgrade of any substrate or accommodate services by creating a separate 'false' wall.
General information
Finish | Other |
Material | Plasterboard Metal |
Shape | Other |
Width | Bespoke |
Height | Bespoke |
Warranty description | Lifetime Guidance for specification option: Etex Building Performance Limited offers both a comprehensive Lifetime System Warranty (excl. Aquaboard™ and Weather Defence) and External Board Warranty (Incl. Aquaboard™ - 10 Years and Weather Defence - 12 Years). For full details see the full Warranty and Proprietary Systems Policy at www.siniat.co.uk/knowledge-centre/. Etex Building Performance Limited warrants to the purchaser that the Siniat Plasterboard Solutions (“Systems”) as originally designed, built and unaltered will perform to the original laboratory performance parameters as set out in the Siniat Drywall Manual and other relevant literature as published by Siniat. The system must be constructed solely with the proprietary products and components as supplied by Siniat. The system must be installed by a professional installer in accordance with: the Siniat Drywall Manual; this specification document; CAD drawings; advice; and all relevant and applicable construction standards and regulations. |
Uniclass | |
CAWS | K10/165 Wall lining system (metal framing) K10/35 Wall lining system (metal framing) |
Specification data - Gypsum board wall lining systems
System performance | All Siniat systems should be constructed to BS 8212:1995 and BS 8000-8:1989.Guidance for specification option:
|
Linings | |
Face layer | 12.5 mm Siniat Standard Board. |
Fasteners | 25 mm Siniat Self Tapping Screws all at maximum 300 mm centres. |
Joint treatment | Decorative.Guidance for specification option: Siniat taping and jointing system using appropriate Siniat jointing materials and Siniat Paper Joint Tape. Consult manufacturer for further details. Non-decorative.Guidance for specification option: Outer boards should be taped and jointed using appropriate Siniat compounds to at least first stage (bedding). Consult manufacturer for further details. Manufacturer guidanceWhen using an outer layer for Siniat Aqua Board follow manufacturer’s guidance on wet area installation. |
Finish | Siniat Universal Sealer.Siniat Drywall Sealer.Manufacturer guidanceApply undiluted across the whole drylined surface by brush or roller to coverage rate as defined by current Siniat Drywall Manual. |
Samples required | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Framing | Channel: 70 mm Siniat I Stud IS70/B at 600 mm centres. Top track: 72 mm Siniat Deep Flange U Tracks UDT72/B. Base track: 72 mm Siniat U Tracks UT72/Rx. Guidance for specification option: Head and base track fixed to structure at maximum 600 mm centres with suitable fixing by others. |
Sealing (joints and penetrations) | Intumescent acoustic sealant. Guidance for specification option: Apply 6 mm continuous beads of Siniat Intumescent Acoustic Sealant around the perimeter of the framing or to the edge of outer layers of board, ensuring that all air-paths are sealed. All penetrations should use supporting constructions detailed in the Siniat Drywall Manual unless superseded by specific test information. For combined, warrantied performance specify FSi fire-stopping products. For cPVC pipe sealing use FSI PYROPRO(R) Sealant in place of Siniat Intumescent Acoustic Sealant. |
Height | Guidance for specification option: Maximum height: 4000 mm. |
Sound insulation | 27 Rw dB (23 Rw dB + Ctr). |
Thickness | 82.5 mm. Manufacturer guidanceNominal. |
Deflection | Guidance for specification option: Insert requirements or omit. If required as per Drywall manual. |
System code | IWL 001 (IS70B). |
Third-party certification | All products are CE marked and UKCA marked in accordance with construction products regulation. Guidance for specification option: Where relevant standards or European Technical Approvals exist |
Standards | To BS EN 520, BS EN 10346, BS EN 10162, BS EN 14195 and BS EN 14566. Guidance for specification option:
|
Sustainability data
Country of material origin | Spain Manufacturer guidanceApplies to the bulk material (gypsum) only. Other components are from other countries. Consult manufacturer for details. |
Country of product manufacture | United Kingdom Manufacturer guidanceUK applies to the majority of manufacture but a small percentage of finished items are imported. Contact manufacturer for details. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceLatest EPD information available from: www.siniat.co.uk/en-gb/documentation/ |
Recyclability | Gypsum and metal components can be recycled depending on the segregation of all materials. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceGypsum average 33.5% and metal average 17%. |
Literature
Siniat Drywall Manual - Introduction
Siniat Drywall Manual - Linings
