Siniat GTEC Pregybel Independent Lining Systems
Application

For creating sound-absorbing walls to control sound reflection in larger spaces.

Description

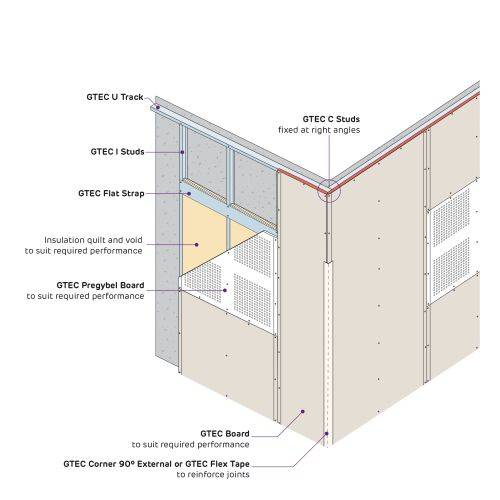

Acoustic gypsum board wall lining systems.

Features and benefits:

Creates a more comfortable level of sound and improved audibility.

Application:

For creating sound-absorbing walls to control sound reflection in larger spaces.

General information

Features

Creates a more comfortable level of sound and improved audibility

Material

Plasterboard, timber frame and glass fibre insulation

Size

System height dependent on system build up

Uniclass 2015

Ss_25_25_45_35 Gypsum board wall lining systemsPrimary

CAWS

K10/155 Wall lining system (metal studs)

K10/30 Metal stud

Specification data - Gypsum board wall lining systems

Product Reference

Siniat GTEC Pregybel Independent Lining Systems

.

Support

GTEC Corner and Edge Beads

Provides corner and edge reinforcement.

Insulation

None or glass mineral wool (supplied by others) with GTEC Insulation Hold to secure and prevent slump

Dependent on lining type selected, various sizes.

Cavity fire barriers

GTEC Intumescent Acoustic Sealant

Perimeter sealing to restrict smoke, sound and fire penetration. Ensures system performance.

Linings

-

Face layer

GTEC Pregybel C10no8 Board, GTEC Pregybel R12no2 Board, GTEC Pregybel R15no1 Board or GTEC Pregybel L5x80no8 Board

Dependant on lining type selected, various thicknesses.

Fasteners

GTEC Self-Tapping Drywall Screws

Joint treatment

Insert requirements from manufacturer's literature.

Type

PGL 001: Pregybel Lining

System weight: 12 kg/m²; Acoustic absorption class: B; Absorption co-efficient: 0.8 αw.

PGL 002: Pregybel Lining

System weight: 12 kg/m²; Acoustic absorption class: C; Absorption co-efficient: 0.75 αw.

PGL 003: Pregybel Lining

System weight: 12 kg/m²; Acoustic absorption class: C; Absorption co-efficient: 0.7 αw.

PGL 004: Pregybel Lining

System weight: 12 kg/m²; Acoustic absorption class: C; Absorption co-efficient: 0.6 αw.

PGL 101: Pregybel Lining

System weight: 12 kg/m²; Acoustic absorption class: C; Absorption co-efficient: 0.7 αw.

PGL 102: Pregybel Lining

System weight: 12 kg/m²; Acoustic absorption class: C; Absorption co-efficient: 0.65 αw.

PGL 201: Pregybel Lining

System weight: 12 kg/m²; Acoustic absorption class: C; Absorption co-efficient: 0.7 αw.

PGL 202: Pregybel Lining

System weight: 12 kg/m²; Acoustic absorption class: C; Absorption co-efficient: 0.7 αw.

PGL 301: Pregybel Lining

System weight: 12 kg/m²; Acoustic absorption class: C; Absorption co-efficient: 0.6 αw.

PGL 302: Pregybel Lining

System weight: 12 kg/m²; Acoustic absorption class: D; Absorption co-efficient: 0.5 αw.

PGL 401: Pregybel Lining

System weight: 12 kg/m²; Acoustic absorption class: D; Absorption co-efficient: 0.55 αw.

PGL 402: Pregybel Lining

System weight: 12 kg/m²; Acoustic absorption class: D; Absorption co-efficient: 0.55 αw.

Studs

IS50Rx

50 mm width, 2.7 m maximum system height.

IS60B

60 mm width, 3.9 m maximum system height.

IS70B

70 mm width, 4.5 m maximum system height.

IS90B

mm width, 5.4 m maximum system height.

Sealer

GTEC Drywall Sealer

Ivory, pre-decoration coat for plasterboard.

GTEC Universal Sealer

For use on plasterboard prior to painting for improved whiteness and covering power.

Socket integrity

GTEC Socket Pad

Maintains acoustic and fire integrity at sockets.

Standard product features

Features:

Creates a more comfortable level of sound and improved audibility.

Material:

Plasterboard, timber frame and glass fibre insulation.

Size:

System height dependent on system build up.
