Description

Lining systems offering a wide range of plasterboard lining fixing systems to walls for most typical substrates. Different depths of cavity spaces can be created between the GTEC Board or GTEC Thermal Board lining and underlying wall. These cavities hide services or help to achieve high levels of fire resistance, U-values and sound insulation.

General information
Specification data - Gypsum board wall lining systems
Product Reference

RFL 002

– U-value: 0.3 W/m²K; Fire performance: 30 minutes; Acoustic performance: 51 dB sound reduction.

RFL 003

U-value: 0.29 W/m²K; Fire performance: 60 minutes; Acoustic performance: 53 dB sound reduction.

RFL 015

U-value: 0.29 W/m²K; Fire performance: 30 minutes; Acoustic performance: 60 dB -5 Ctr sound reduction.

RFL 016

U-value: 0.29 W/m²K; Fire performance: 60 minutes; Acoustic performance: 61 dB -4 Ctr sound reduction.

RFL 051

U-value: 0.34 W/m²K; Fire performance: 60 minutes; Acoustic performance: 59 dB sound reduction.

Lining

GTEC Aqua Board

Sheathing board

Supplied by others.

Jointing

Insert requirement(s) from manufacturer's literature.

Sealer

GTEC Drywall Sealer

Ivory, pre-decoration coat for plasterboard.

GTEC Universal Sealer

For use on plasterboard prior to painting for improved whiteness and covering power.

Standard product features

GTEC Intumescent Acoustic Sealant:

Perimeter sealing to restrict smoke, sound and fire penetration. Ensures system performance.

GTEC Corner and Edge Beads:

Provides corner and edge reinforcement.

GTEC Socket Pad:

Maintains acoustic and fire integrity at sockets.

GTEC Insulation Hold:

Secures insulation to prevent slump.

Fixings:

Dependent on lining.

Product Options

Product reference:

- RFL 002:

  • Facing outer layer: One 15 mm-thick GTEC Fire V Board.
  • Lining: Sheathing board (GTEC Aqua Board is recommended).
  • Insulation: 120 mm-thick glass fibre (to BS 5250) (supplied by others).
  • Internal wall leaf: Timber frame stud work (supplied by others).
  • External wall leaf: Brickwork (supplied by others).
  • Fire performance (to BS 476-21 and BS EN 1365-1): 30 minutes.

- RFL 003:

  • Facing inner layer: One 12.5 mm-thick GTEC Vapour Board.
  • Facing outer layer: One 12.5 mm-thick GTEC Fire Board.
  • Lining: Sheathing board (GTEC Aqua Board is recommended).
  • Insulation: 120 mm-thick glass fibre (to BS 5250) (supplied by others).
  • Internal wall leaf: Timber frame stud work (supplied by others).
  • External wall leaf: Brickwork (supplied by others).
  • Fire performance (to BS 476-21 and BS EN 1365-1): 60 minutes.

- RFL 015:

  • Facing outer layer: One 15 mm-thick GTEC Fire V Board.
  • Lining: Sheathing board (GTEC Aqua Board is recommended).
  • Insulation: 120 mm-thick glass fibre (to BS 5250) (supplied by others).
  • Internal wall leaf: Timber frame stud work (supplied by others) with GTEC Resilient Bars at 400 mm centres.
  • External wall leaf: Brickwork (supplied by others).
  • Fire performance (to BS 476-21 and BS EN 1365-1): 30 minutes.

- RFL 016:

  • Facing inner layer: One 12.5 mm-thick GTEC Vapour Board.
  • Facing outer layer: One 12.5 mm-thick GTEC Fire Board.
  • Lining: Sheathing board (GTEC Aqua Board is recommended).
  • Insulation: 120 mm-thick glass fibre (to BS 5250) (supplied by others).
  • Internal wall leaf: Timber frame stud work (supplied by others) with GTEC Resilient Bars at 400 mm centres.
  • External wall leaf: Brickwork (supplied by others).
  • Fire performance (to BS 476-21 and BS EN 1365-1): 60 minutes.

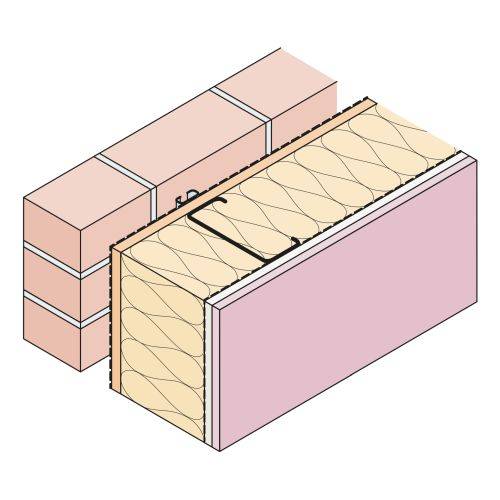

- RFL 051:

  • Facing inner layer: One 12.5 mm-thick GTEC Vapour Board.
  • Facing outer layer: One 12.5 mm-thick GTEC Fire Board.
  • Lining: One 15 mm-thick GTEC Aqua Board.
  • Insulation: 150 mm-thick glass fibre (to BS 5250) within steel framing system (supplied by others).
  • Internal wall leaf: 150 mm steel framing system (supplied by others).
  • External wall leaf: 100 mm brickwork with 50 mm cavity (supplied by others).
  • Fire performance (to BS 476-21 and BS EN 1365-1): 60 minutes.

System height (maximum):

2.4–4.2 m.
