Sentry Glass Access Module
Verified by manufacturer 11 months ago

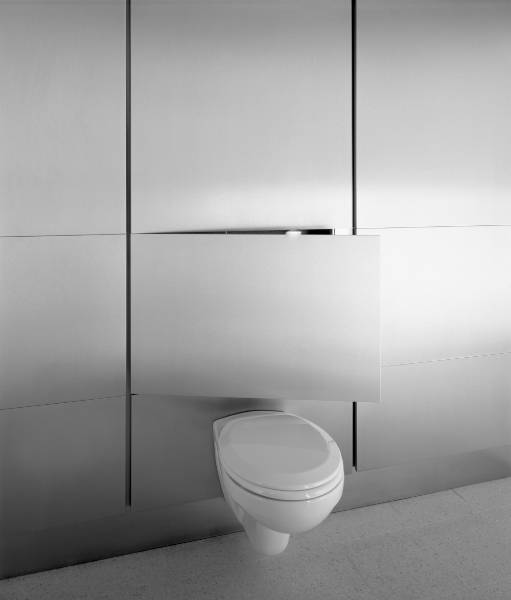

A fully pre-fabricated glass access panel system.
Application
- Toilet cubicles with a WC toilet pan.
- Airports.
- Commercial spaces.
- Football grounds.
- High quality offices.
- Hotels.
- Leisure areas/ clubs.
- Schools.
- Theatres.
Description
Fully pre-fabricated unique hinged access panel module up to 3000 mm high and in a maximum width of 1000 mm, manufactured in the UK using Aluminium Alloy 6063T6. Overall depth from the rear of the framework to front face of panel is 87 mm. The system offers corrosion resistance to moisture, but is not designed to prevent water penetration. The system is suitable for use inside toilet cubicles with a WC toilet pan, to house urinals or wash-hand basins, or as wall lining. It can be used on a back wall or in a back-to-back layout.
Features and benefits:
- Factory-prefabricated access panel system.
- Full aluminium framework.
- Hinged access doors.
- Doors secured by catches.
General information
Color | Other |
Finish | Gloss |
Material | Glass |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | K32/150 Duct/ wall linings – panels and proprietary frames K32/15 Duct/ wall lining panels |
Specification data - Duct and wall panel lining systems
Panels | 5 mm low-iron toughened glass.Guidance for specification option: Back-painted colours from manufacturer's selection. |
Fasteners | Access panels are factory-fitted to framework, using adjustable zinc alloy die-cast hinges and fastened using zinc alloy die-cast locating catches. Panel accessed using supplied injection-moulded key. |
Supporting frame | |
Duct panels | Full aluminium frame using Aluminium Alloy 6063T6, factory-assembled using extruded vertical posts and horizontal cross-rails.Manufacturer guidanceFull aluminium frame using Aluminium Alloy 6063T6, factory-assembled using extruded vertical posts and horizontal cross-rails, manufactured to bespoke width and height and supported by 12 mm diameter zinc-plated carbon steel adjustable feet. Frame locates into floor and ceiling channel and is braced to the back wall with aluminium angle to a specified distance (standard is 300 mm to the face of the panels). This framework fully supports the module, and no other elements are required to enable the fitting of the system. |
Access panel | Not required. Medium density fibreboard Particleboard Manufacturer guidance22 mm finished thickness consisting of 15 mm moisture-resistant chipboard/ MDF core, sourced from sustainable forests, finished on both faces with matching high pressure laminate, before being edged with matching PVC/ ABS tape to accept a 5 mm back-painted toughened glass panel to front face. The standard configuration allows for three panels per module, although this can be varied to suit a particular application. The size and positioning of all cut-outs for the sanitaryware and any other accessories need to be confirmed by others, prior to the fabrication of the glass panels. |
Size: | Manufacturer guidanceUp to 3000 mm high and 1000 mm wide. |
Infill panels | High Pressure Laminate. Guidance for specification option: Insert requirements from manufacturer's selection. Manufacturer guidanceInfill panels: The infills form an integral part of the framework, consisting of vertical infills, a head infill and skirting, creating required shadow gaps/ clearances to the vertical edge of the panels and at the floor and ceiling. 17 mm finished thickness consisting of 15 mm moisture-resistant MDF core, sourced from sustainable forests, faced with high pressure laminate with balancing backing laminate. Alternatively, WBP plywood can be supplied as skirting to accept finishes by others, such as tiling/ vinyl. When fitted prior to the finished ceiling, the head infill can sit above the level of the ceiling, with the ceiling then subsequently fitted to the face of the head infill. Alternatively, if the ceiling is fitted first, the head infill can be scribed to the underside of the ceiling. The system has standard shadow gaps of 16 mm to the centre and 25 mm to side walls. These can be reduced to suit a particular requirement by using alternative hardware. |
Edging | ABS. PVC. |
Colour: | Manufacturer guidanceInsert requirements from manufacturer's selection. |
Product Reference | Sentry Glass Access Module |
Literature

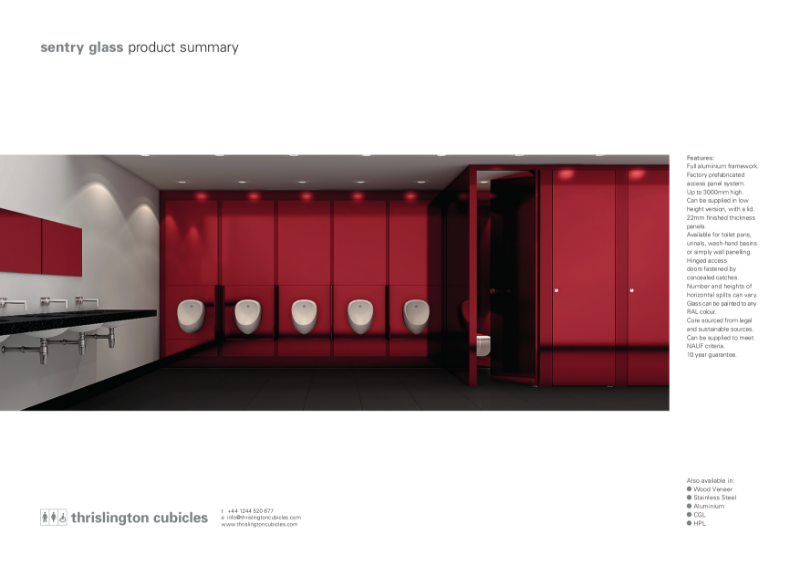

Thrislington Product Summary - Sentry Ducting
