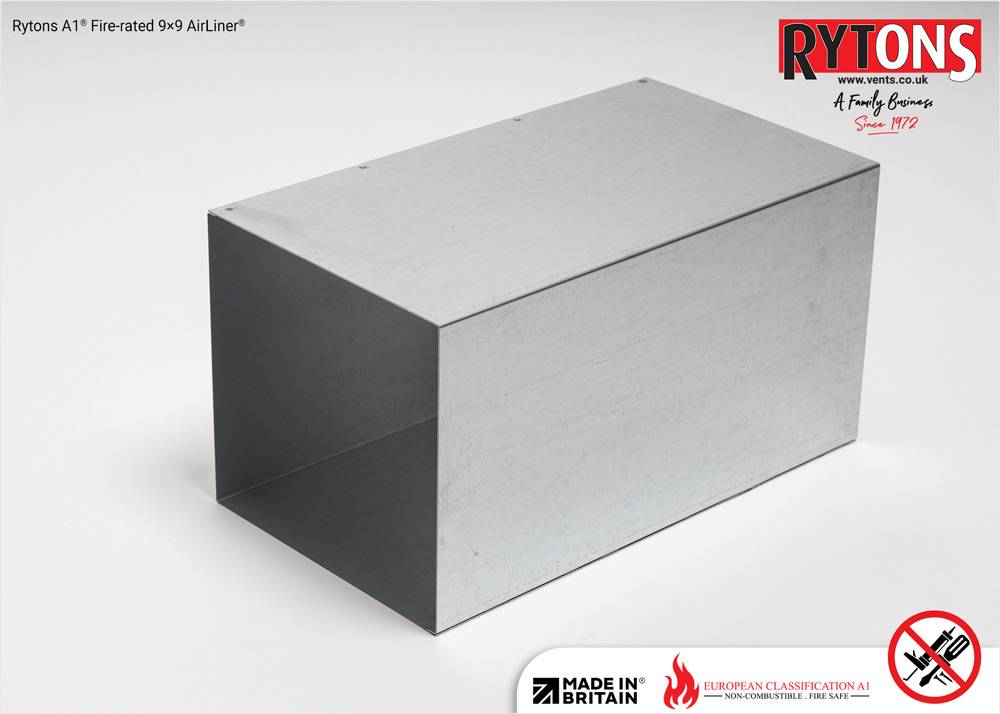

Rytons A1® Fire-rated 9 × 9 AirLiner®

Verified by manufacturer 3 months ago

With Return Grille Triple Air Brick (A1RGT)

Rytons Building Products Ltd Variant:

Class A1 fire-rated, non-combustible, metal 9x9 AirLiner® cross-cavity sleeve with a choice of air brick grille for high-rise buildings over 18 m (11 m in Scotland) and cladding remediation projects.

Jump to:
+44 (0)1536 511874 Website

Application

Suitable for use in high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.

Description

A tailor-made Class A1 fire-rated cross-cavity sleeve.


Features and benefits:

  • Compliant with regulations for the requirement of non-combustible ducting in the external walls of high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.

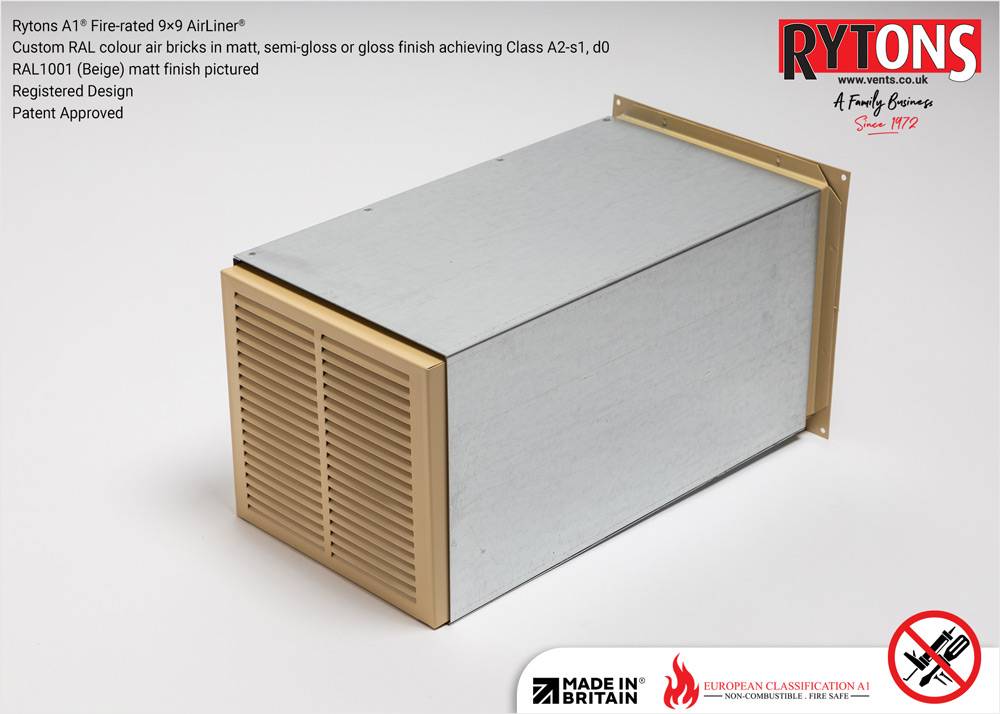

  • Available with or without a Rytons A1® Fire-rated Metal Triple Air Brick at one end or both ends.
  • Three air brick styles available, all offering low resistance and high airflows. For cladding, choose a flanged option to cover cut edges and maintain the aesthetic appearance.
  • Custom powder coated air brick. Choose from the RAL Classic colour chart in matt, semi-gloss or gloss finish achieving Class A2-s1, d0. RAL Design and signature architectural coatings are also available.
  • Made to custom length.
  • Supplied ready to install with no on-site assembly required.
  • Custom design option available.
  • Made in Britain.

General information

Finish

Matt

Guidance for specification option:

Custom powder coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available.

Semi-gloss

Guidance for specification option:

Custom powder coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available.

Gloss

Guidance for specification option:

Custom powder coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available.

Material

Steel

Guidance for specification option:

Galvanized steel.

0.9 mm.

Shape

Rectangle

Length

Bespoke

Width

220 mm

Height

207 mm

Uniclass

Pr_35_90_50_03 AirbricksPrimary

CAWS

F30/160 Airbricks in external walling

F30/15 Airbricks in external walling

Product range

Rytons Metal A1 Fire-rated Range

Specification data - Airbricks

Standard

-

Manufacturer guidance

Class 1 without testing.

Work sizes

220 x 207 mm.

Material

Galvanized steel.

Guidance for specification option:

0.9 mm.

Integral accessories

15 mm flange and corner screw holes.

Guidance for specification option:

To all flanged air brick products.

Length

Guidance for specification option:

Specified by customer.

Free area

28 800 mm².

Surface finish

Matt.

Guidance for specification option:

Custom powder-coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available.

Semi-gloss.

Guidance for specification option:

Custom powder-coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available.

Gloss.

Guidance for specification option:

Custom powder-coated air brick from the RAL Classic colour chart (achieving Class A2-s1, d0). RAL Design and signature architectural coatings also available.

Fire performance

Class A1.

Guidance for specification option:

Made from galvanized steel. Galvanized steel is considered fire class A1 without testing, as per European Commission paper 96/603/EC referred to in BS EN 13501-1:2018. The material remains robust at elevated temperatures and has a high melting point temperature of 1450–1520°C. Classification: A1. Definition: Non-combustible. Description: No contribution to fire.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Guidance for specification option:

Galvanized steel.

0.9 mm.

Recyclability

Recyclable
