Summary

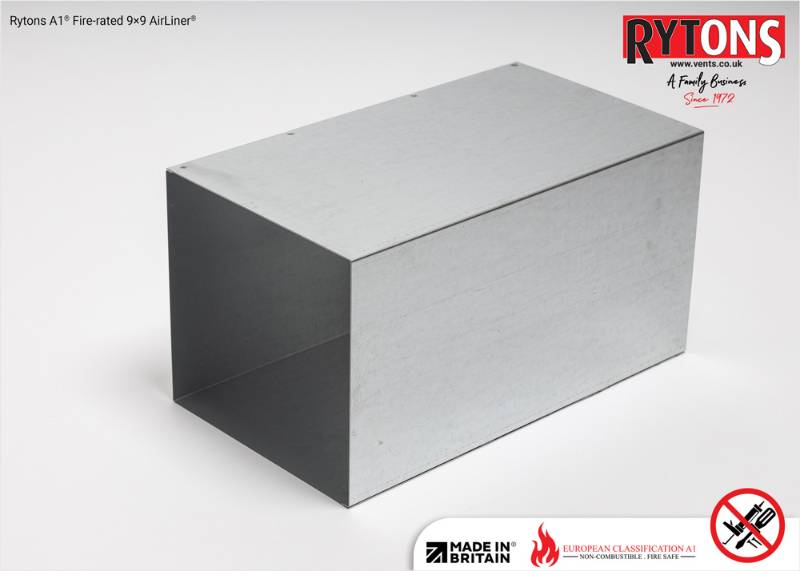

Class A1 fire-rated, non-combustible, metal 9x9 AirLiner® cross-cavity sleeve with a choice of air brick grille for high-rise buildings over 18 m (11 m in Scotland) and cladding remediation projects.
-
-
Application
Suitable for use in high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
-
-
Description
A tailor-made Class A1 fire-rated cross-cavity sleeve.
Features and benefits:
- Compliant with regulations for the requirement of non-combustible ducting in the external walls of high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
- Available with or without a Rytons A1® Fire-rated Metal Triple Air Brick at one end or both ends.
- Three air brick styles available, all offering low resistance and high airflows. For cladding, choose a flanged option to cover cut edges and maintain the aesthetic appearance.
- Custom powder coated air brick. Choose from the RAL Classic colour chart in matt, semi-gloss or gloss finish achieving Class A2-s1, d0. RAL Design and signature architectural coatings are also available.
- Made to custom length.
- Supplied ready to install with no on-site assembly required.
- Custom design option available.
- Made in Britain.
-
-
Finish
Matt, Semi-gloss, Gloss
-
-
Material
Steel
-
-
Shape
Rectangle
-
-
Length
Bespoke
-
-
Width
220 mm
-
-
Height
207 mm
-
-
SKU Code
A1AL99
-
-
Specification
Work sizes
220 x 207 mm.
-
-
Material
Galvanized steel.
-
-
Additional properties
Integral accessories
15 mm flange and corner screw holes.
-
-
Length
-
-
-
Free area
28 800 mm².
-
-
Surface finish
Matt., Semi-gloss., Gloss.
-
-
Fire performance
Class A1.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
United Kingdom
-
-
Country of product manufacture
United Kingdom
-
-
Material
Steel
-
-
Recyclability
Recyclable
-
-
