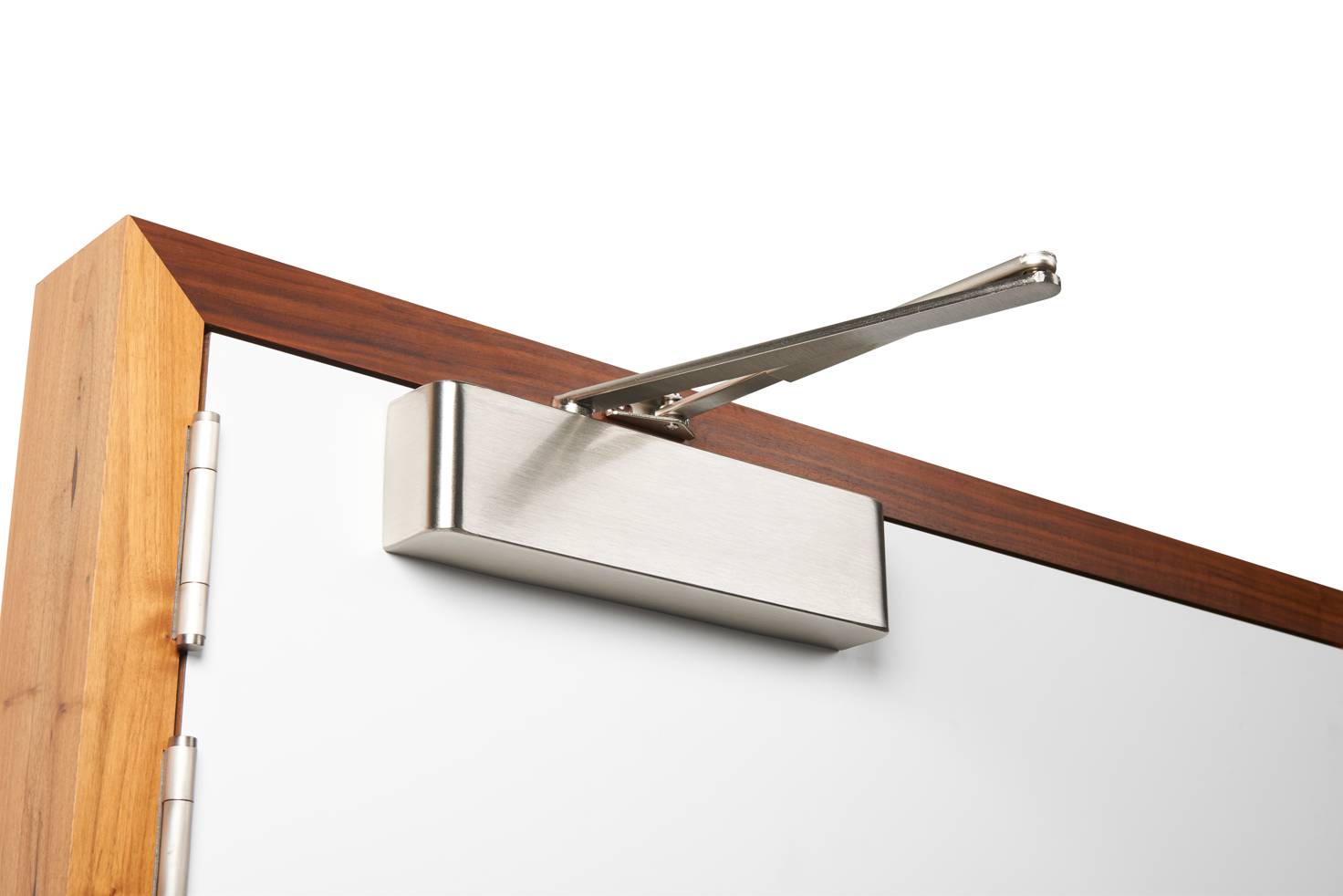

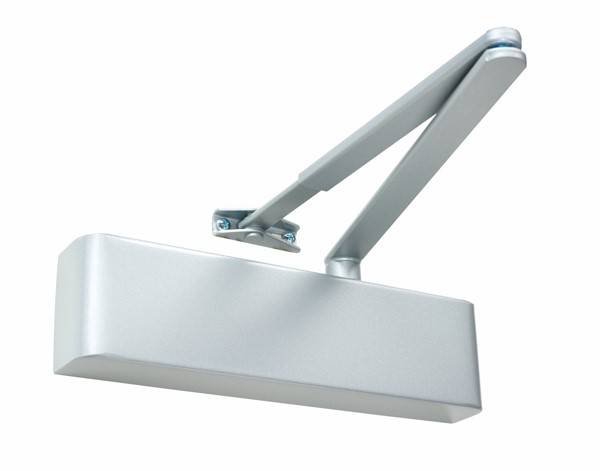

Rutland TS.9206 - Scissor Arm Door Closer - Scissor Arm

Name: Rutland TS.9206 - Scissor Arm Door Closer - Scissor Arm
Brand: Rutland
SKU: 4t9oWtoHkjo4LBAXecQpXx

Verified by manufacturer 3 months ago

Rutland

Third party certifications:

IFCC
Certificate type
Certificate of constancy of performance
Certificate type

Power-adjustable rack and pinion door closer, EN2-6, with back check and delayed action as standard.

Jump to:

+44 (0)1246 261491 Website

Application

Overhead door closer that can be adjusted to suit almost all types of doors.

Description

Power-adjustable scissor arm door closer.

Features and benefits:

Variable power size: EN 2–6 (Fig 1) or EN 2–5 (Fig 66).
Adjustable closing speed/ latch speed.
Adjustable back check + delayed action
Maximum door weight/width: 120 kg/ 1400 mm.
Eight different finishes, including an anti-corrosion option (Marine 316).
CE and UKCA marked.
Fire tested to EN 1634.
Opening angle: 180°.
Universal fitting.
Easy to install.
35-year guarantee.

General information

Color	Silver Black Other
Finish	Satin Polished PVD Electro polished Other
Material	Aluminium Stainless steel
Shape	Rectangle
Length	307 mm
Width	47 mm
Height	77 mm
Warranty description	35 year

Uniclass	Pr_30_36_59_15 Controlled door closersPrimary
CAWS	P21/12 Controlled door closers P21/410 Controlled door closers

Specification data - Controlled door closers

Standard	To BS EN 1154.
Classification grades (minimum)	-
Category of use	4.
Durability	8.
Door closer power size	2-6.
Suitability for use on fire and smoke doors	1.
Safety	1.
Corrosion resistance	3.
Form	Overhead, face fixed.
Closer functions	Back check and delayed closing.
Materials and finishes	-
Bodies	Manufacturer's standard (silver).
Arms	Scissor arm to match the cover.
Casings	Series semi radius cover - Silver. Guidance for specification option: SR.96.SE. Series semi radius cover - Satin Nickel. Guidance for specification option: SR.96.SNP. Series semi radius cover - Polished Nickel. Guidance for specification option: SR.96.PNP. Series semi radius cover - Polished Brass. Guidance for specification option: SR.96.PVD. Series semi radius cover - Satin Stainless Steel. Guidance for specification option: SR.96.SSS. Series semi radius cover - Polished Stainless. Guidance for specification option: SR.96.PSS. Series semi radius cover - Black. Guidance for specification option: SR.96.RAL9011. Series semi radius cover - Marine 316. Guidance for specification option: SR.96.316S.
Colour	Silver. Guidance for specification option: TS.9206DABC.FB.SE / TS.9206DABC.SRFB3.SESE. Satin Nickel Plate. Guidance for specification option: TS.9206DABC.SRFB3.SNPSNP. Polished Nickel Plate. Guidance for specification option: TS.9206DABC.SRFB3.PNPPNP. Polished Brass. Guidance for specification option: TS.9206DABC.SRFB3.PVDPVD. Satin Stainless Steel. Guidance for specification option: TS.9206DABC.SRFB3.SSSSSS. Polished Stainless. Guidance for specification option: TS.9206DABC.SRFB3.PSSPSS. Black. Guidance for specification option: TS.9206DABC.SRFB3.RAL9011BK. Marine 316. Guidance for specification option: TS.9206DABC.SRFB3.MARS316. Colour coated. Guidance for specification option: TS.9206DABC.SRFB3.RALRAL.

Angle	180°. Manufacturer guidance Opening angle.
Maximum weight	120 kg. Manufacturer guidance Max door weight.
Door width	1400 mm. Manufacturer guidance Max door width.
Arm	Standard screw type armset - Silver. Guidance for specification option: Star cut, includes fixings and PA bracket. Silver - STA.3.SE. Flat bar armset - Silver. Guidance for specification option: Star cut, includes fixings and PA bracket. FBA.3.SE 25. Flat bar armset - Black. Guidance for specification option: Star cut, includes fixings and PA bracket. FBA.3.BK 25. Flat bar armset - Satin Nickel. Guidance for specification option: Star cut, includes fixings and PA bracket. FBA.3.SNP 25. Flat bar armset - Polished Nickel. Guidance for specification option: Star cut, includes fixings and PA bracket. FBA.3.PNP 25. Flat bar armset - Polished Brass. Guidance for specification option: Star cut, includes fixings and PA bracket. FBA.3.PVD 25. Flat bar armset - Satin Stainless Steel. Guidance for specification option: Star cut, includes fixings and PA bracket. FBA.3.SSS 25. Flat bar armset - Polished Stainless. Guidance for specification option: Star cut, includes fixings and PA bracket. FBA.3.PSS 25. Flat bar armset - Marine 316. Guidance for specification option: Star cut, includes fixings and PA bracket. FBA.3.MARS 25. Hold open armset - Silver. Guidance for specification option: Includes fixings, adjustable strength. HOA.2.SE 25. Hold open armset - Black. Guidance for specification option: Includes fixings, adjustable strength. HOA.2.BK 25. Show more
Plate	Drop plate - Silver. Guidance for specification option: DP.96.SE. Drop plate - Satin Nickel. Guidance for specification option: DP.96.SNP. Drop plate - Polished Nickel. Guidance for specification option: DP.96.PNP. Drop plate - Polished Brass. Guidance for specification option: DP.96.PVD. Manufacturer guidance Drop plate.
Brackets	Parallel arm bracket - Silver. Guidance for specification option: Includes fixings. PAB.1.SE. Parallel arm bracket - Black. Guidance for specification option: Includes fixings. PAB.1.BK. Parallel arm bracket - Polished Stainless. Guidance for specification option: Includes fixings. PAB.1.PSS. Parallel arm bracket - Satin Nickel. Guidance for specification option: Includes fixings. PAB.1.SNP. Parallel arm bracket - Polished Nickel. Guidance for specification option: Includes fixings. PAB.1.PNP. Parallel arm bracket - Polished Brass. Guidance for specification option: Includes fixings. PAB.1.PVD. Parallel arm bracket - Satin Stainless Steel. Guidance for specification option: Includes fixings. PAB.1.SS. Show more
Bracket	Architrave bracket - Silver. Guidance for specification option: Includes fixings. AB.1.SE. Architrave bracket - Black. Guidance for specification option: Includes fixings. AB.1.BK. Architrave bracket - Satin Nickel. Guidance for specification option: Includes fixings. AB.1.SNP. Architrave bracket - Polished Nickel. Guidance for specification option: Includes fixings. AB.1.PNP. Architrave bracket - Polished Brass. Guidance for specification option: Includes fixings. AB.1.PVD. Architrave bracket - Satin Stainless Steel. Guidance for specification option: Includes fixings. AB.1.SSS. Architrave bracket - Polished Stainless. Guidance for specification option: Includes fixings. AB.1.PSS. Show more
Mounting plates	Silver. Guidance for specification option: MP.96.SE.
Trim	Silver. Guidance for specification option: TP.96.SE. Manufacturer guidance Trim plate.
Shoe	Silver. Guidance for specification option: SP.1.SE. Satin Nickel. Guidance for specification option: SP.1.SNP. Manufacturer guidance Shoe plate.
Accessories	Intumescent kit for uninsulated steel doors. Guidance for specification option: IP.96M.

Sustainability data

Contains Red List materials	No
Recyclability	Yes

Third party certifications

IFCC

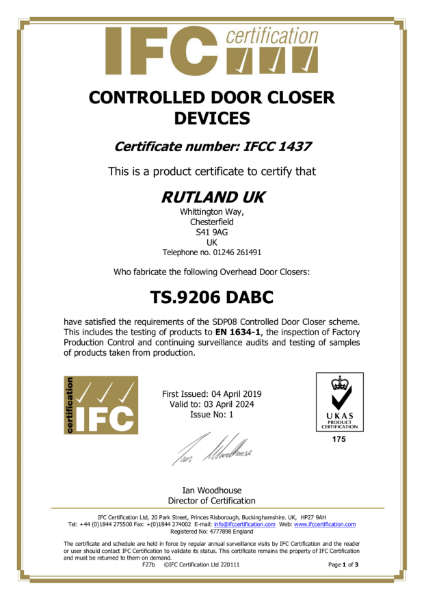

TS.9206 - BS EN 1634-1 Fire Test - IFC Certificate

Certificate of constancy of performance

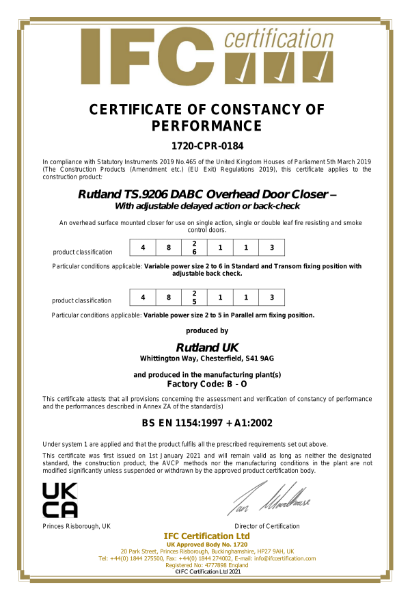

TS.9206 - BS EN 1154 - CE - Certificate of Constancy of Performance - Efectis

Certificate of constancy of performance

TS.9206 - BS EN 1154 - UKCA - Certificate of Constancy of Performance - IFC

Literature

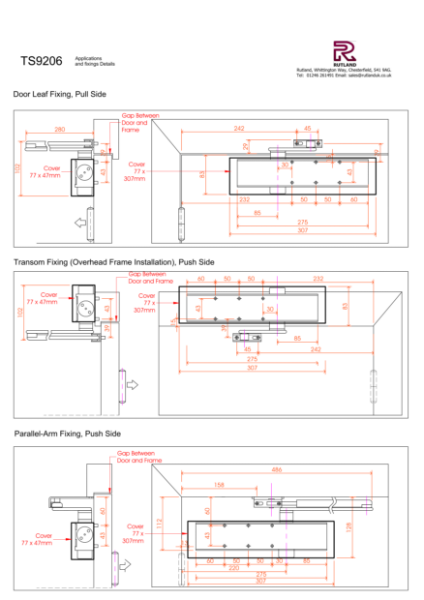

TS.9206 Dimensional Line Drawings

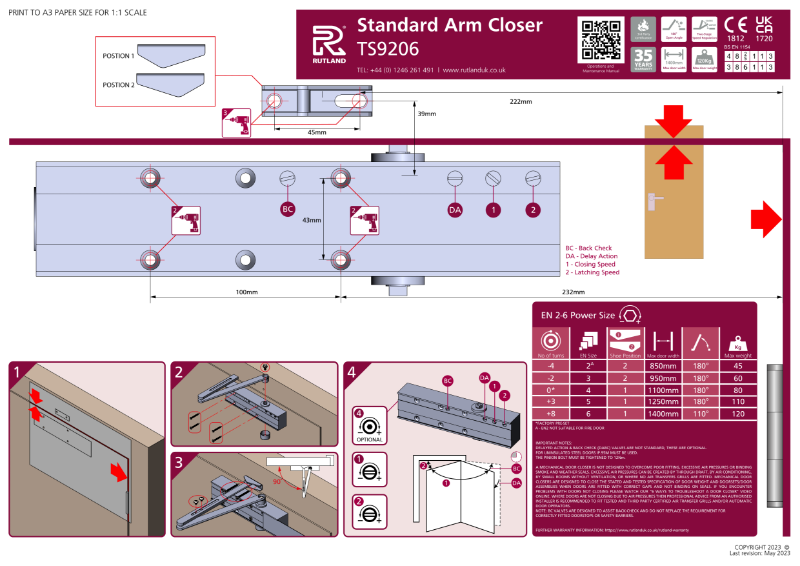

TS.9206 Fitting Instructions – Pull Side (standard arm)

TS.9206 Fitting Instructions – Push Side (Parallel arm)

Case studies

Starbucks Coffee – Rutland TS.9206 & TS.9205

Bread Bar Restaurant – Rutland TS.9206

RAF Waddington – Rutland TS.9206

Door closer air pressure and excessive smoke seal issues - how to solve?
