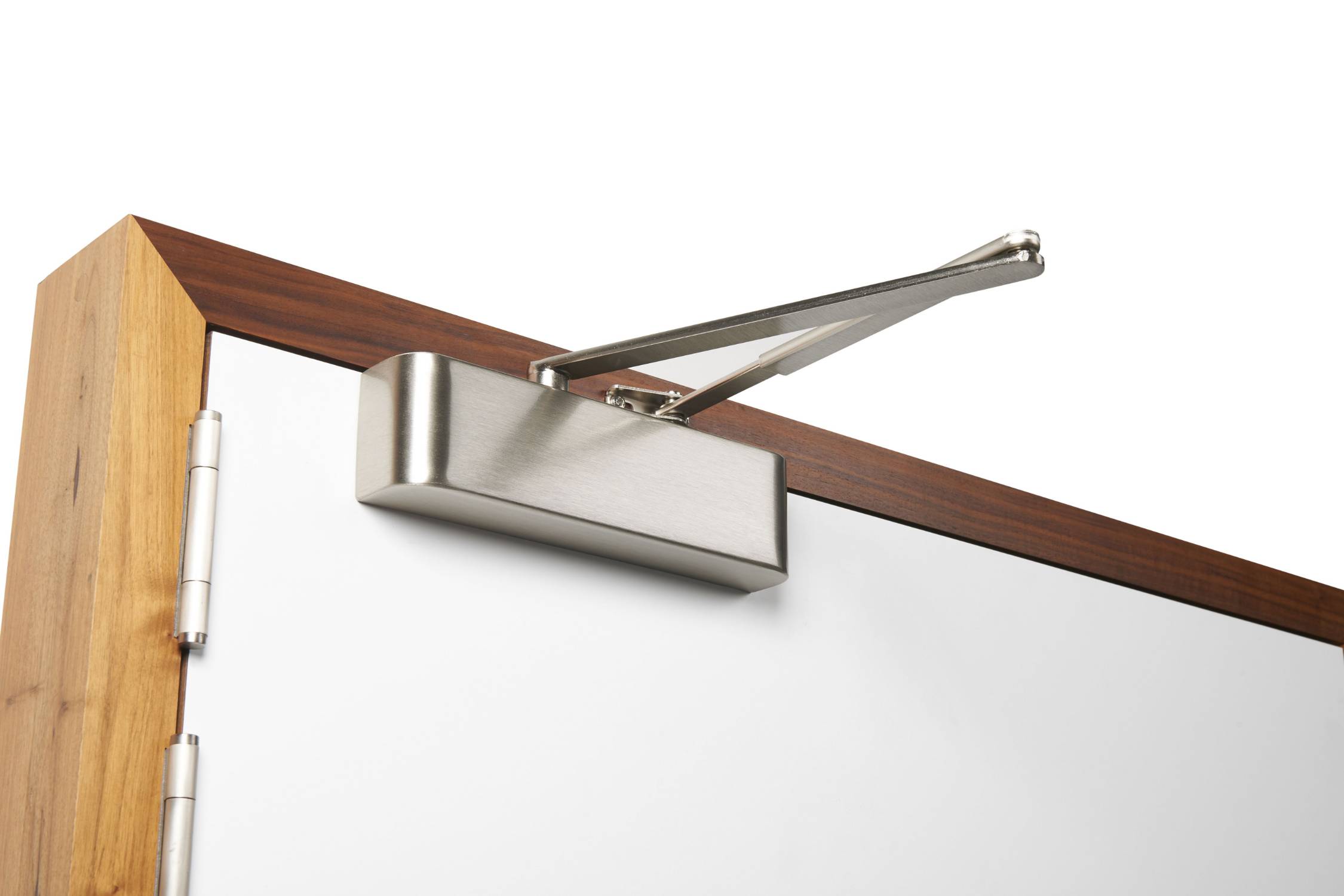

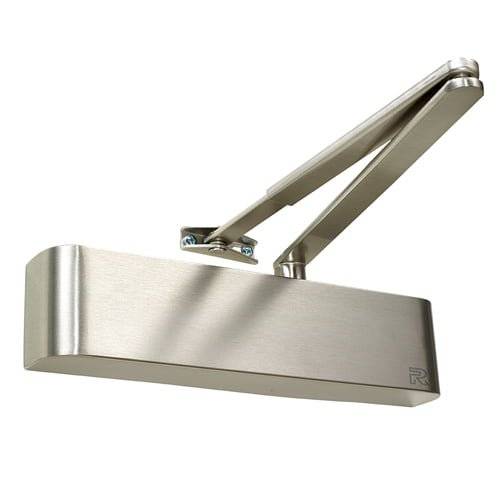

Rutland TS.5204 - Scissor Arm Door Closer - Scissor Arm

Name: Rutland TS.5204 - Scissor Arm Door Closer - Scissor Arm
Brand: Rutland
SKU: qdkQpzp1r96L4Z3C9wpgP

Verified by manufacturer 18 hours ago

Rutland

Product certifications:

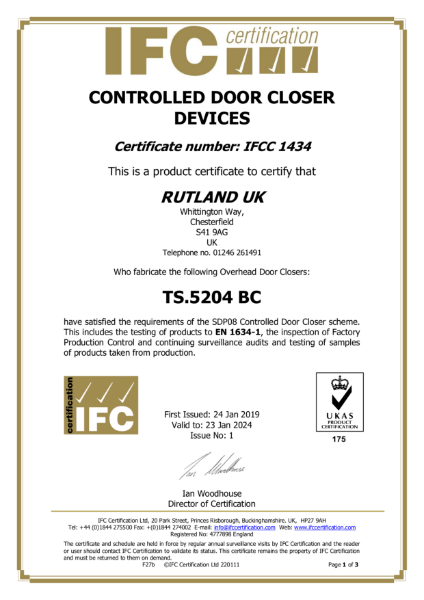

IFCC
Certificate type

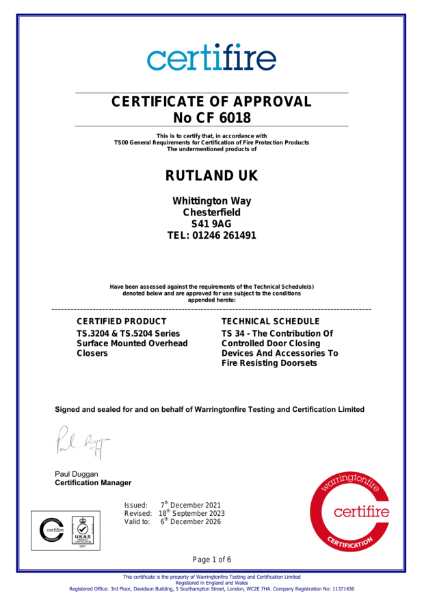

Certificate of Approval cdfa
Certificate type
Certificate of constancy of performance
Certificate type
Intertek
Certificate type

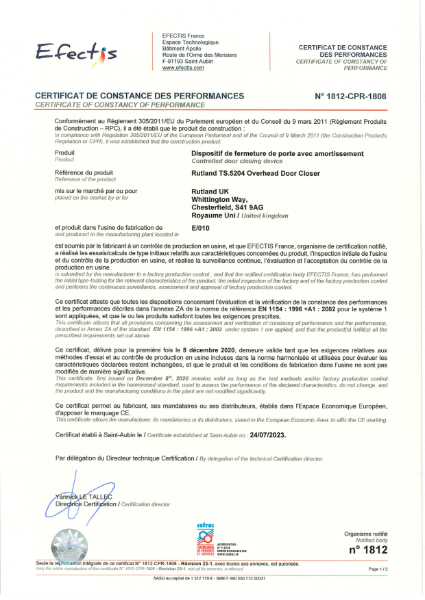

Certificate of constancy of performance
Certificate type

Power-adjustable door closer, EN 2–4.

Jump to:

+44 (0)1246 261491 Website

Application

Overhead door closer that can be adjusted to suit almost all types of doors. Assists BS 8300 for Doc M contracts.

Description

Power-adjustable door closer.

Features and benefits:

Variable power size: EN 2–4.
Assists BS 8300 for Doc M contracts, helping to assist doorsets with ease of opening.
Adjustable closing speed/ latch speed.
Available with back check and adjustable delayed action.
Maximum door weight/width: 80 kg/ 1100 mm
Range of metallic finishes.
CE and UKCA marked.
Fire tested to EN 1634-1 (120 minutes).
Opening angle: 180°.

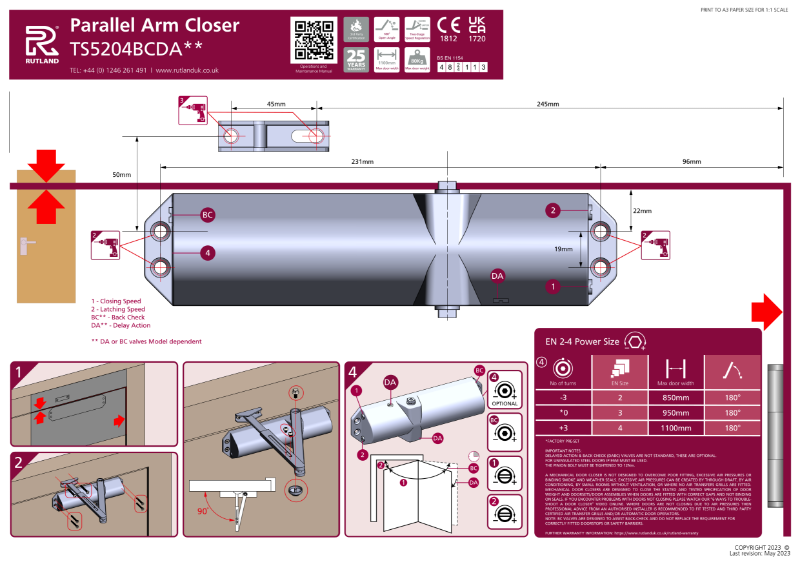

Universal application: can be fitted in standard, parallel arm or transom fitting position.
Easy to install.
25 year guarantee.

General information

Color	Silver Black Other
Finish	Polished Electro polished Satin Other Guidance for specification option: Anti-corrosion (marine environments). Brass
Material	Aluminium
Shape	Rectangle
Length	258 mm
Width	45 mm
Height	68 mm
Warranty description	Ten year

Uniclass	Pr_30_36_59_15 Controlled door closersPrimary
CAWS	P21/12 Controlled door closers P21/410 Controlled door closers

Specification data - Controlled door closers

Classification data
Standard	To BS EN 1154.
Classification grades (minimum)	-
Category of use	4.
Durability	8.
Door closer power size	2–4. Guidance for specification option: Variable power size (by spring).
Suitability for use on fire and smoke doors	1.
Safety	1.
Corrosion resistance	3.
Form	Overhead, face fixed.
Closer functions	Manufacturer's standard. Guidance for specification option: Controlled closing and latching. Manufacturer's standard with back check. Guidance for specification option: Controlled closing and latching including back check. Manufacturer's standard with back check and delayed closing. Guidance for specification option: Controlled closing and latching including delayed action and back check.
Materials and finishes	-
Bodies	Manufacturer's standard (silver).
Arms	Projecting scissor arm. Guidance for specification option: Specify colour below, including specific bar colour if different to cover.
Casings	Semi-radius cover. Guidance for specification option: Specify colour below.
Colour	Silver. Satin Nickel. Polished Nickel. Polished Brass. Black. Antique Brass.
Accessories	Parallel arm bracket. Guidance for specification option: Includes fixings. Available in all standard case colours; insert requirements if different to colour specified above. Drop plate, silver. Guidance for specification option: Includes fixings. Silver as standard. 5000 series fixing packs, silver. Guidance for specification option: Silver as standard. Shoe plate, silver. Guidance for specification option: Includes fixings. Shoe plate, satin nickel. Guidance for specification option: Includes fixings. Hold-open arm. Fig 1 hold-open arm. Guidance for specification option: Available in silver or black, consult manufacturer for details. Fig 66 hold-open arm. Guidance for specification option: Available in silver or black, consult manufacturer for details.
