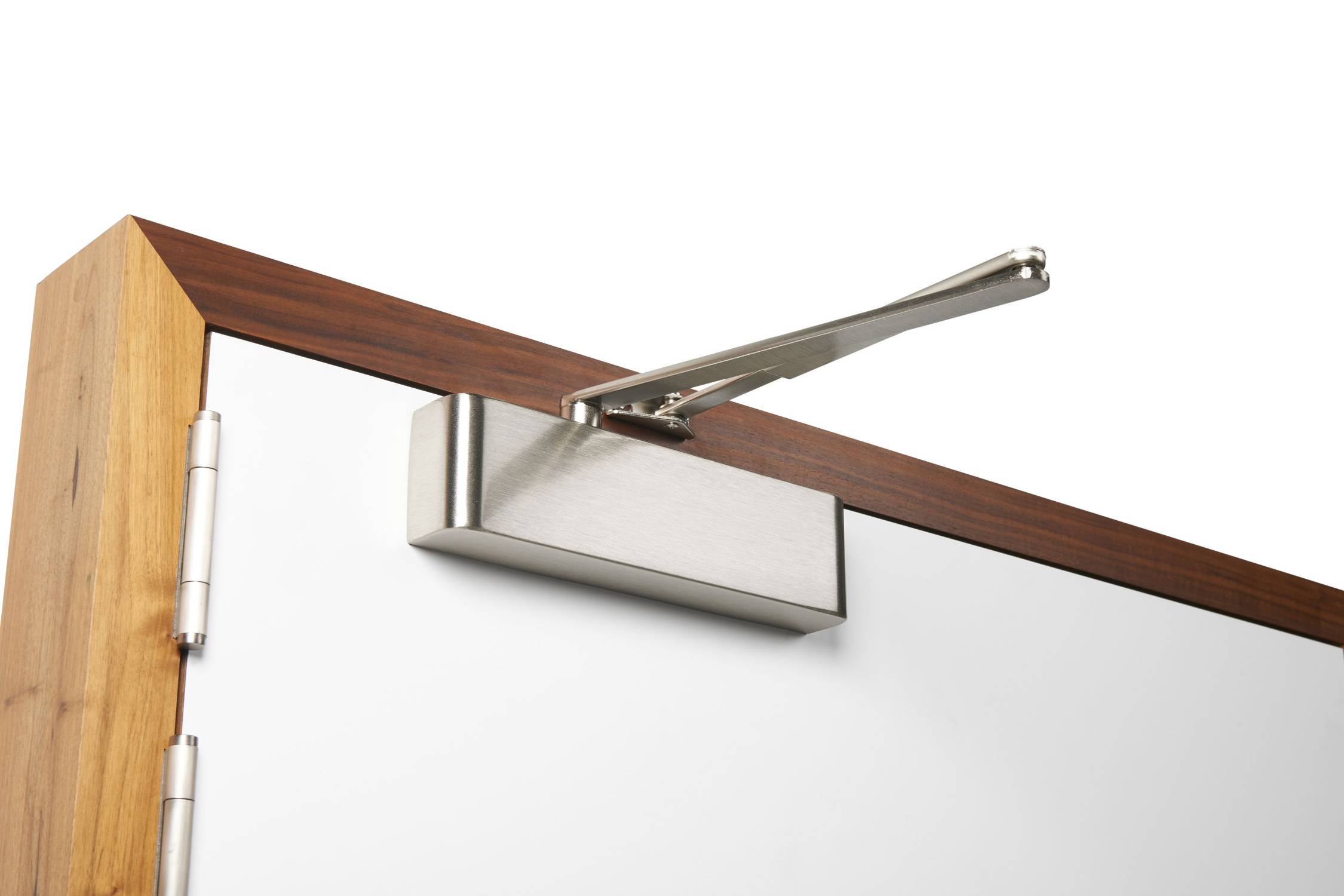

Rutland TS.9205 - Scissor Arm Door Closer - Scissor Arm
Verified by manufacturer 23 days ago
IFCC
Certificate type
Certificate of Approval cdfa
Certificate type
Certificate of constancy of performance
Certificate type
Certificate of constancy of performance
Certificate type
Power-adjustable rack + pinion door closer, EN2-5, with optional Back Check + Delayed Action.
Application
Overhead door closer that can be adjusted to suit almost all types of doors. Assists BS 8300 for Doc M contracts.
Description
Power-adjustable scissor arm door closer.
Features and benefits:
- Variable power size: EN 2–5 (Fig 1) or EN 2–4 (Fig 66).
- Assists BS 8300 for Doc M contracts, helping to assist doorsets with ease of opening.
- Adjustable closing speed/ latch speed.
- Available with delayed action and back check (both adjustable).
- Maximum door weight/width: 110 kg/ 1250 mm.
- 15 different finishes, including an anti-corrosion option (Marine 316)
- CE and UKCA marked.
- UL listed.
- Fire tested to EN 1634.
- Opening angle: 180°.
- Universal fitting.
- Easy to install.
- 35-year guarantee.
General information
Color | Silver Bronze Black Copper Other |
Finish | Polished Antiqued Electro polished Satin Other Guidance for specification option: Anti-corrosion (marine environments). |
Material | Aluminium |
Shape | Rectangle |
Length | 269 mm |
Width | 40 mm |
Height | 69 mm |
Warranty description | 35 year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Specification data - Controlled door closers
Classification data | |
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 8. |
Door closer power size | 2–5. Guidance for specification option: Variable power size (by spring). |
Suitability for use on fire and smoke doors | 1. |
Safety | 1. |
Corrosion resistance | 3. |
Form | Overhead, face fixed. |
Closer functions | Standard. Guidance for specification option: Mechanism only. With back check. Guidance for specification option: Mechanism including back check. With back check and delayed closing. Guidance for specification option: Mechanism including delayed action and back check. |
Materials and finishes | |
Bodies | Manufacturer's standard (Silver). |
Arms | Scissor arm to match the cover. |
Casings | Semi-radius cover. |
Colour | Silver. Satin Nickel. Polished Nickel. Polished Brass. Satin Stainless. Polished Stainless. Antique Brass. Antique Copper. Satin Brass. Dark Bronze. Medium Bronze. Light Bronze. Weathered Bronze. Marine 316. Other (colour-coated). Guidance for specification option: Consult manufacturer for details and insert requirements (RAL). |
Accessories | Star cut screw type armset. Hold-open armset. Intumescent kit. Drop plate. Parallel arm bracket. Architrave bracket. Shoe plate. Trim plate. Mounting plate. None. |
Sustainability data
Contains Red List materials | No |
Material | Aluminium |
Recyclability | Yes |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
Certification type

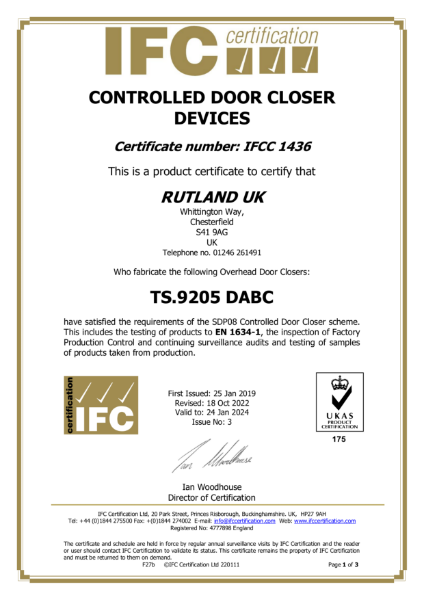

IFCC
TS.9205 - BS EN 1634-1 Fire Test - IFC Certificate

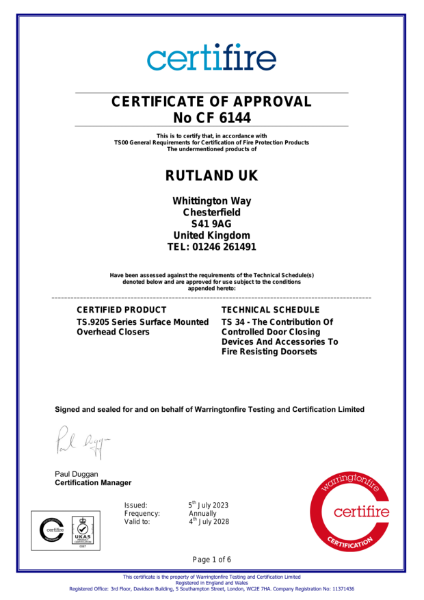

Certificate of Approval cdfa
TS.9205 - BS EN 1634-1 Fire Test - Certifire Certificate
Certificate of constancy of performance

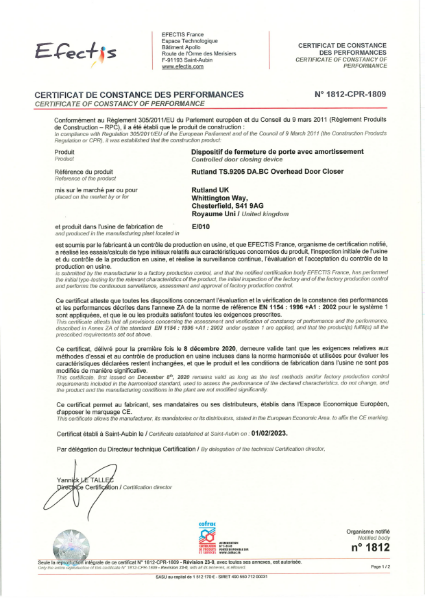

TS.9205 - BS EN 1154 - CE - Certificate of Constancy of Performance - Efectis
Certificate of constancy of performance

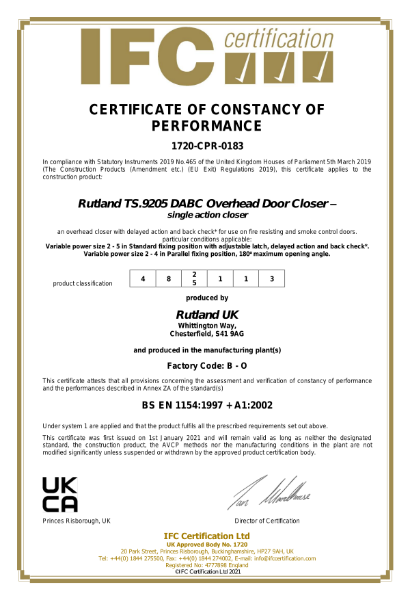

TS.9205 - BS EN 1154 - UKCA - Certificate of Constancy of Performance - IFC
Literature
Literature type
TS.9205 Dimensional Line Drawings

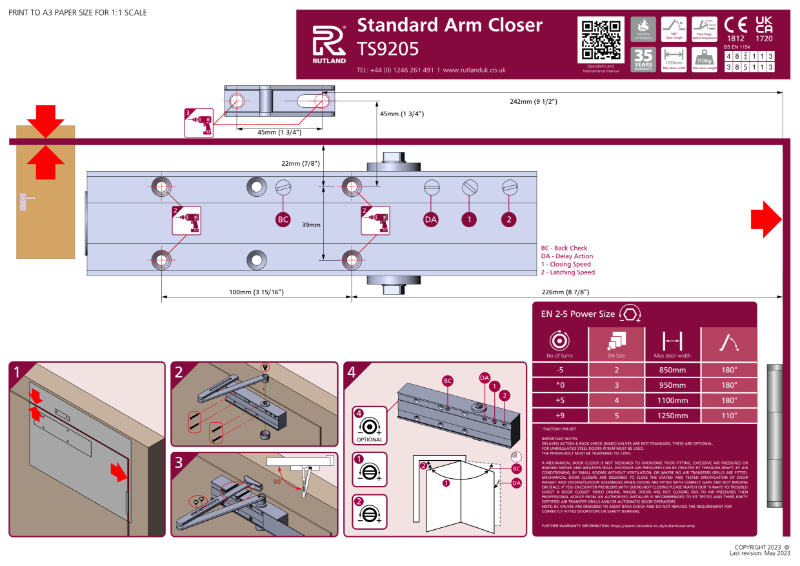

TS.9205 Fitting Instructions – Pull side (standard arm)

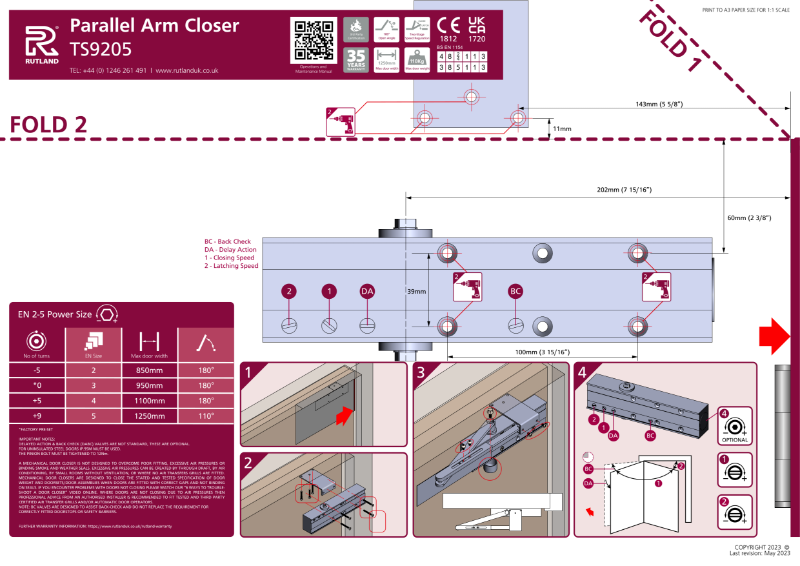

TS.9205 Fitting Instructions – Push side (parallel arm)
TS.9205 - IP.95M Fitting Instructions
Operations & Maintenance Manual - Scissor Arm Door Closers
Case studies

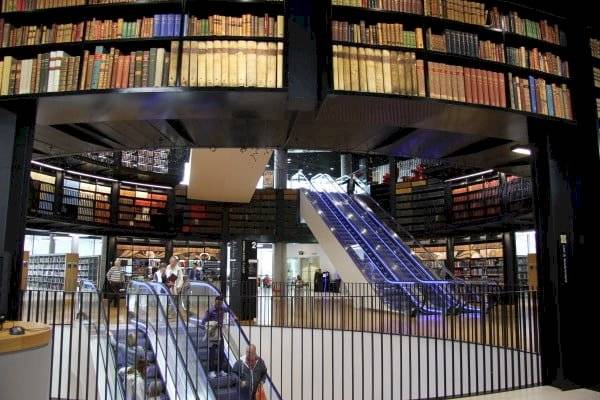

The Library of Birmingham – Rutland TS.9205

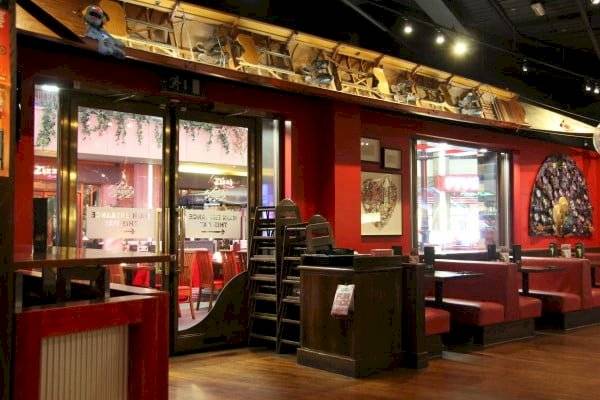

TGI Fridays – London – O2 Arena – Rutland TS.9205

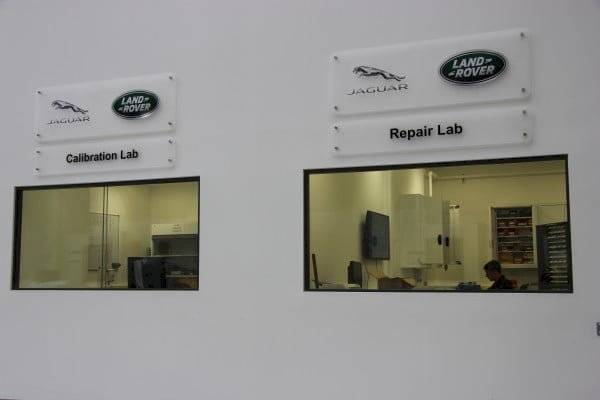

Jaguar Land Rover – Gaydon – Rutland TS.9205

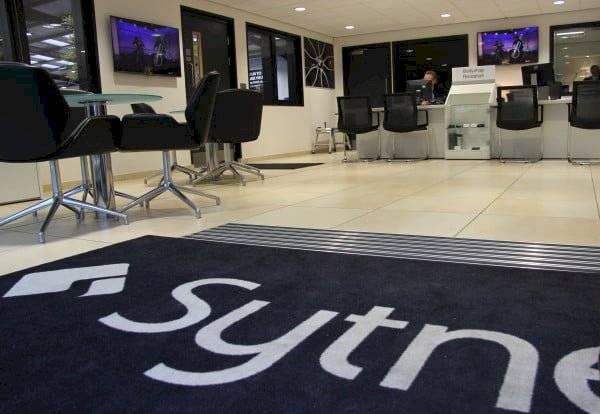

BMW Sytner – Nottingham – Rutland TS.9205

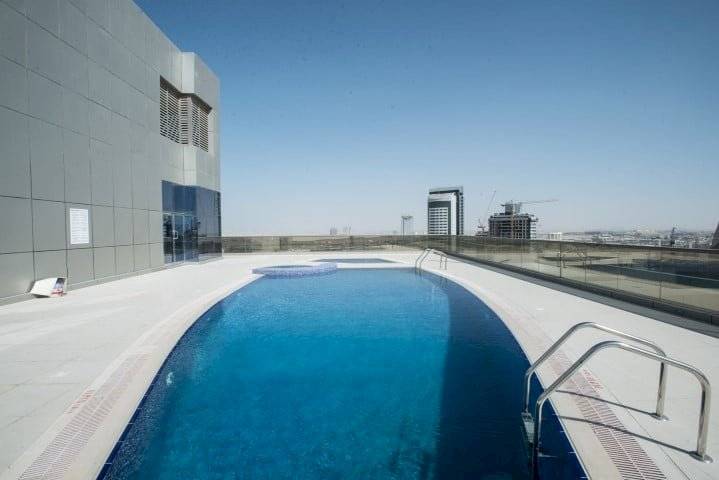

The Spirit – Dubai Sports City – Rutland TS.9205

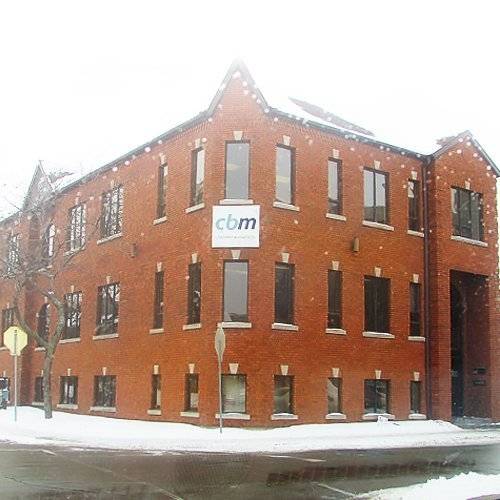

CBM Chartered Accountants – Rutland TS.9205

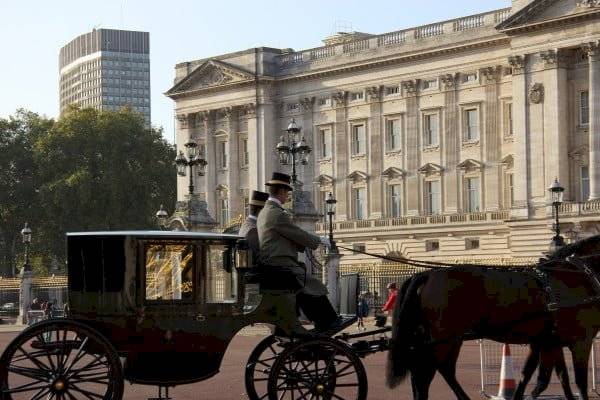

Buckingham Palace – Rutland TS.11204 & TS.9205

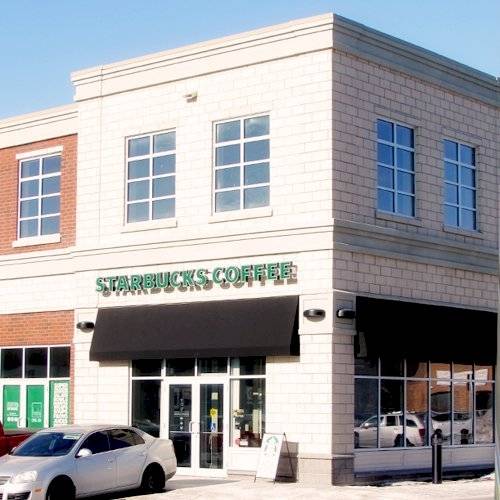

Starbucks Coffee – Rutland TS.9206 & TS.9205

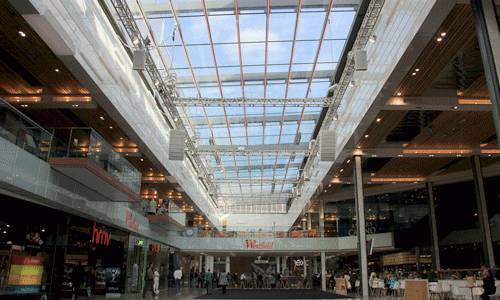

Westfield Stratford City Shopping Centre – Rutland TS.9205

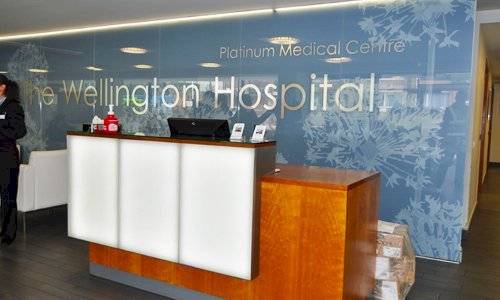

The Wellington Hospital – London, UK – Rutland TS.9205

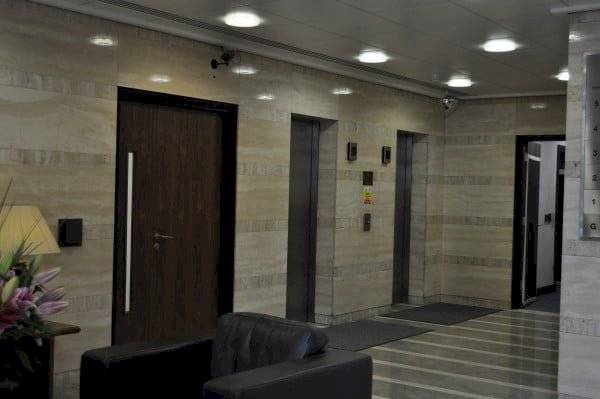

National Bank of Kuwait – Rutland TS.9205

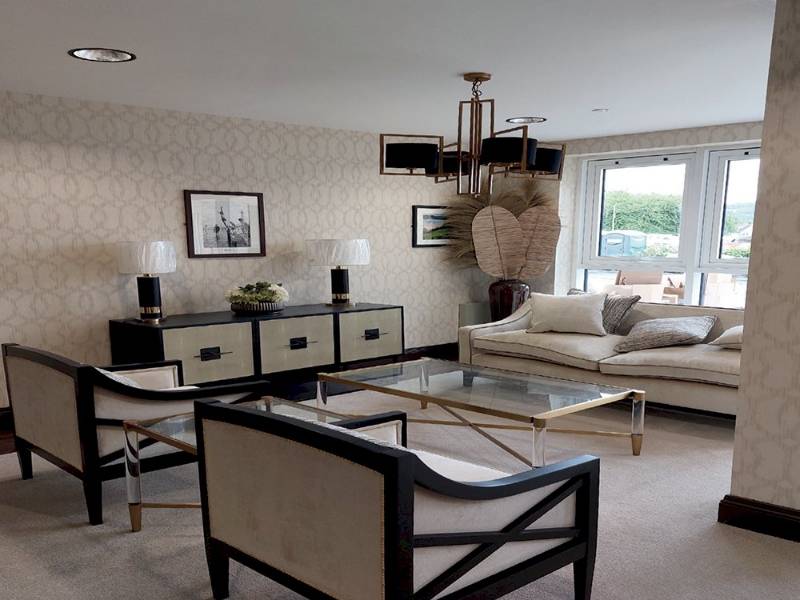

Premium Retirement Home, Stirling - Rutland TS.9205
The Shard – London UK – Rutland TS.9205 & TS.11204
InterContinental, The O2 – London – Rutland TS.9205 & TS.11204

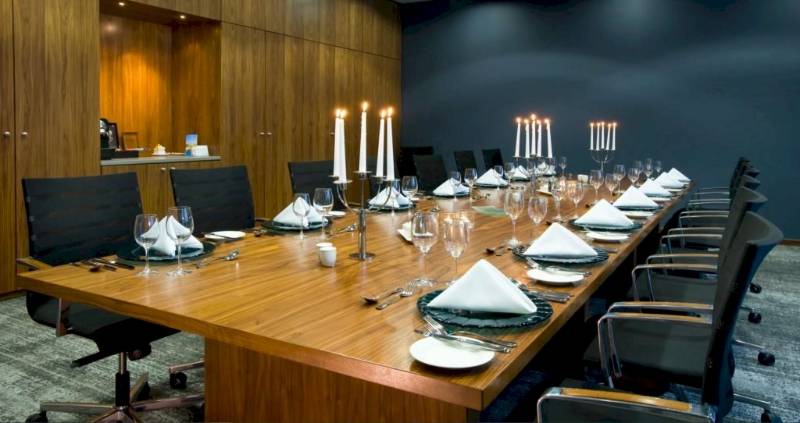

Radisson Blu – East Midlands Airport – UK – Rutland TS.11204 & TS.9205

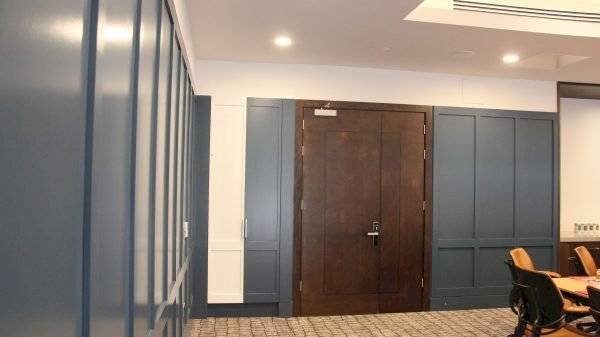

Red Cow Moran Hotel – Dublin – Rutland TS.9205

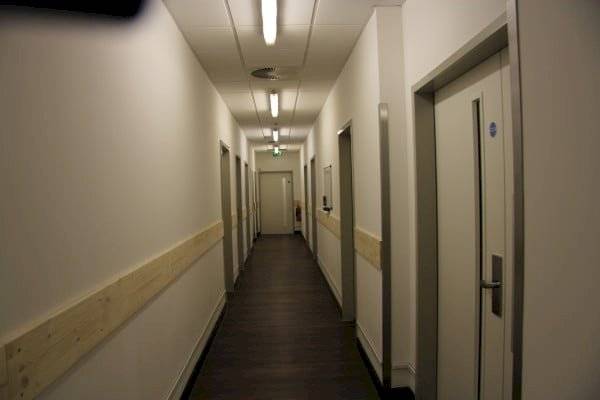

Motel one – Manchester – Rutland TS.9205 & TS.3204

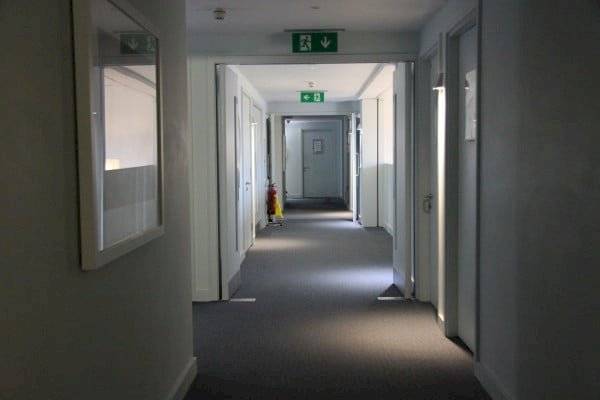

Brighton College – Rutland TS.7000 Range & TS.9205
