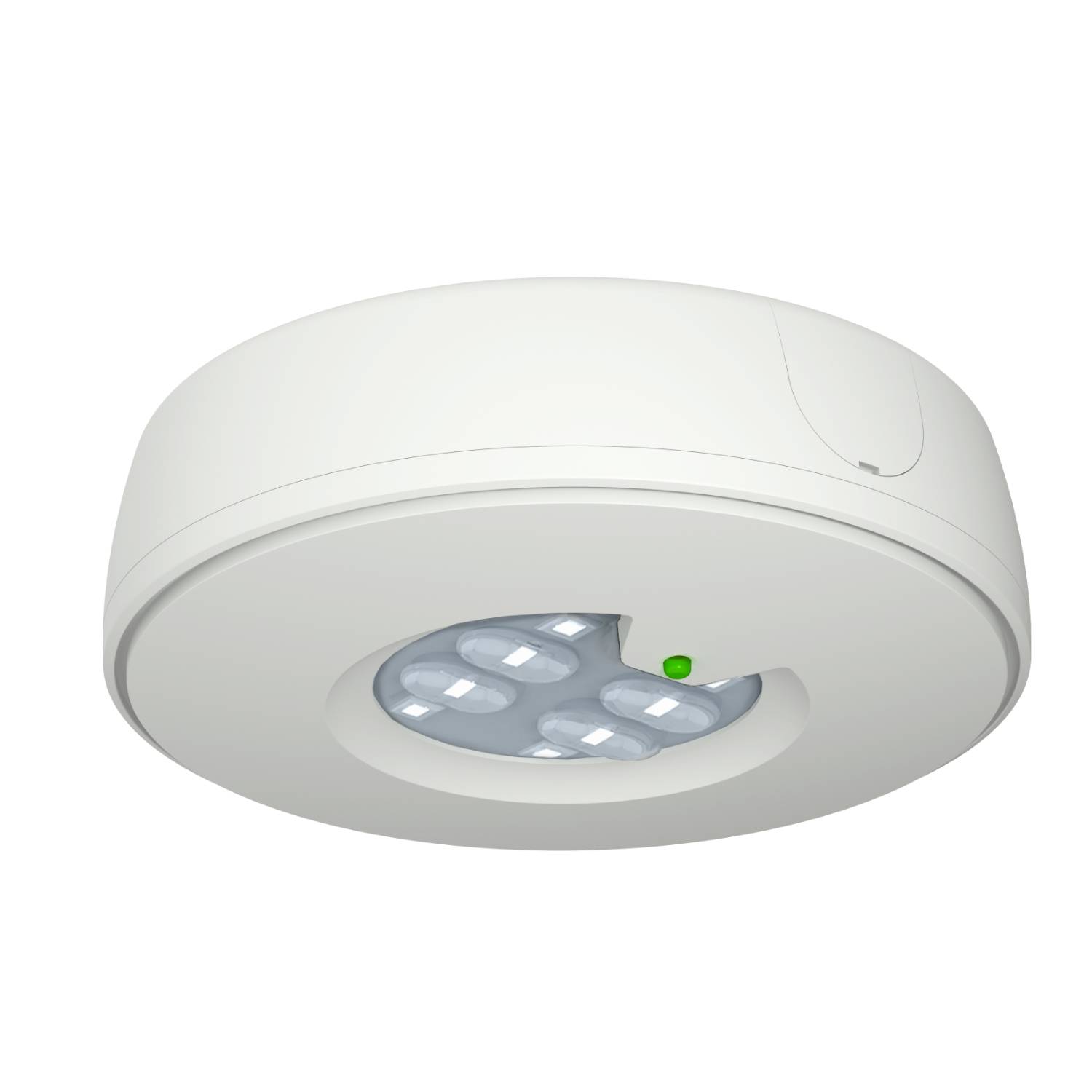

RoundTech MR SEO Recessed CG-Line - Self-Contained Safety Luminaire
Verified by manufacturer 6 months ago
CGLine+, 200 lm, 1 h - RT2RSEO200CGL1HIP
CGLine+, 200 lm, 1 h - RT2RSEO200CGL1HIP
Medium recessed safety escape route and open area emergency pin spot self-contained safety luminaire.
Application
- Recessed ceiling mounted.
- Escape routes and anti-panic areas.
- Suitable for use in cinemas, theatres, shopping malls, industrial units, healthcare or hotels
Description
With RoundTech luminaires, installing emergency lighting is quick and easy using standard circular tools for any hole size from 64 mm to 78 mm. Due to the innovative eFocus function, RoundTech is an instantly configurable single solution for both escape routes and anti-panic areas.
With eco-friendly lithium batteries and low-temperature light engine, RoundTech is available in 150 lm and 200 lm variants and low-bay options for installations up to a height of 7.5 m (with distances up to 24 m at height of 3 m), plus a high-bay version for heights up to 12 m. The LEDs inside the RoundTech luminaire as well as the automatic testing and monitoring devices (for CGLine+ versions) significantly reduce the operating and maintenance costs of the system.
Features and benefits:
- LED self-contained safety luminaire.
- Installation up to 12 m with optimum spacing of 43 m for 1 lux illumination.
- LowBay: Installation up to 7.5 m height .
- HiBay: Installation up to 12 m height.
- eFocus programming: narrow and wide light distribution, programmed by the user.
- One product applicable for Escape Route or Open Area illumination.
- User/ installer to define light distribution to fit the application.
- Automatic test for reduced inspection effort in autonomous installation or connection to CGLine+.
- Simple fault analysis and status display via bicolor LED.
- Selectable operation mode (Maintained or Non-Maintained) via switch or external contact.
- Brightness selectable in mains operation (60 lm) via magnet with additional setting (30%, 70%, 100%) .
- Easy recessed installation via standard hole saw (Ø64–78 mm).
- Low eco footprint thanks to its eco-design, low consumption and lithium battery.
- Round or square trim available for aesthetic customization options and colours.
General information
Color | White |
Material | Steel Polycarbonate |
Shape | Circle |
Length | 110 mm |
Width | 110 mm |
Height | 38 mm |
Uniclass | |
CAWS | V90/530 Self-contained emergency luminaires V90/510 General-purpose luminaires V90/510 General purpose luminaires V90/510 Luminaires |
Specification data - Recessed luminaires
Standards | To BS EN 60598-2-22. |
Third-party certification | ENEC mark. |
Luminaire description | Recessed safety luminaire for escape-route and open-area lighting. |
Classification | |
Electric shock | Class II. |
Ingress protection (minimum) | IP65. |
Circumstances of use | Normal. |
Impact protection (minimum) | IK05. |
Controlgear position | Integral within luminaire. |
Supply circuit conductor connections | CGLine+ bus through-wiring up to 2.5 mm². |
Internal fuse | Not required. |
Nominal voltage | 220–240 V a.c.Guidance for specification option: 50/60 Hz. |
LED luminaires | |
Wattage | 1.1 W.Guidance for specification option: 1.8 VA. |
Useful life | Luminous flux at the end of rated operating time, 100% at 1 h. |
Emergency version | |
Standard | To BS EN 60598-2-22. |
Classification | |
Type | X. |
Mode of operation | 0.1. |
Duration of emergency mode (minimum) | 60. |
Accessories | Not required.Round trim, black matt (RAL9005)- RT2R-RTB.Round trim, dark grey (RAL7015) - RT2R-RTG.Round trim, silver gloss (RAL 9007) - RT2R-RTS.Square trim, black matt (RAL9005)- RT2R-STB.Square trim, dark grey (RAL7015) - RT2R-STG.Square trim, silver gloss (RAL 9007) - RT2R-STS.Battery pack, LifePO4 3.2 V/ 1.5 Ah - RT2R-BAT1.Battery pack, LifePO4 3.2 V/ 3 Ah - RT2R-BAT3.Eaton magnet for configuration and tests - EMN. |
Luminous flux | 200 lm. |
Batteries | LiFePO4, 3.2 V/ 1.5 Ah. |
Housing | Polycarbonate (850 °C glow wire resistant). |
Housing colour | White. |
Dimensions | Ø110 mm. |
Mounting | Recessed ceiling mounting. |
