Rothesay Blend - Clay Facing Brick
Verified by manufacturer 16 days ago

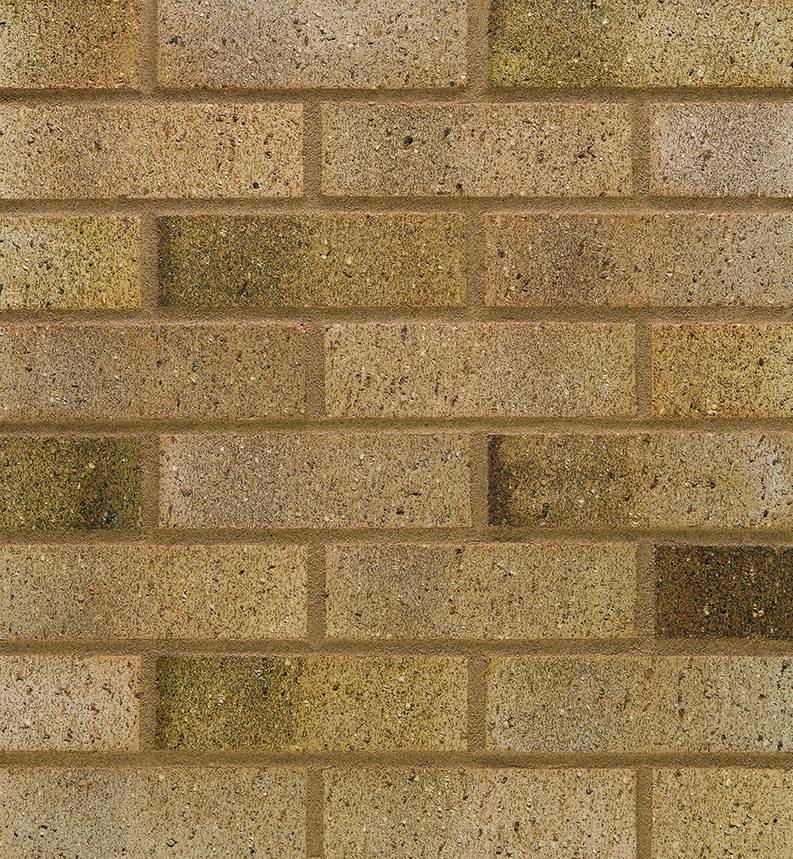

Extruded wire-cut brick in buff multi colour with dragfaced appearance with perforation pattern.
Application
Suitable for external use.
Description
Produced by extruding a column of clay through a brick shaped die and then cutting the column into individual bricks using a wire. Wirecut bricks tend to have very precise edges and also have perforations through the bricks. The perforation pattern can be in many different forms depending on where the bricks are manufactured. They can also be produced as solid bricks.
Features and benefits:
- Wirecut bricks.
- Precise edges.
- Dragfaced appearance.
- Perforation pattern.
- Buff multi colour.
- Sized inline with BS EN 771-1.
General information
Color | Beige Cream Manufacturer guidanceBuff-Multi. |
Finish | Dragfaced |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102.5 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/5 Facing brickwork F10/110 Clay facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Dragfaced.Perforated. |
Work size (length x width x height) | 215 x 102 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥50 N/mm². |
Category | I. |
Durability designation | F2. |
Density | |
Gross dry | 1460 kg/m³. |
Tolerance | D1. |
Water absorption | ≤10%.Guidance for specification option: Percentage of water overall absorption. |
Configuration | Perforated. |
Thermal conductivity | P=90% 0.69 W/m⋅K.Guidance for specification option: 10,dry,unit value (EN 1745 tabulated: S1) . |
Water vapour permeability | Manufacturer guidanceRefer to EN 1745. |
Bond strength | Manufacturer guidanceRefer to EN 1052-3. |
Reaction to fire | Class A1 to BS EN 13501-1. |
Active soluble salts | S2. |
Dry weight | 2.0 kg. Guidance for specification option: Individual Dry Brick Weight (kg). |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Clay |
